Automatic Packing Machine

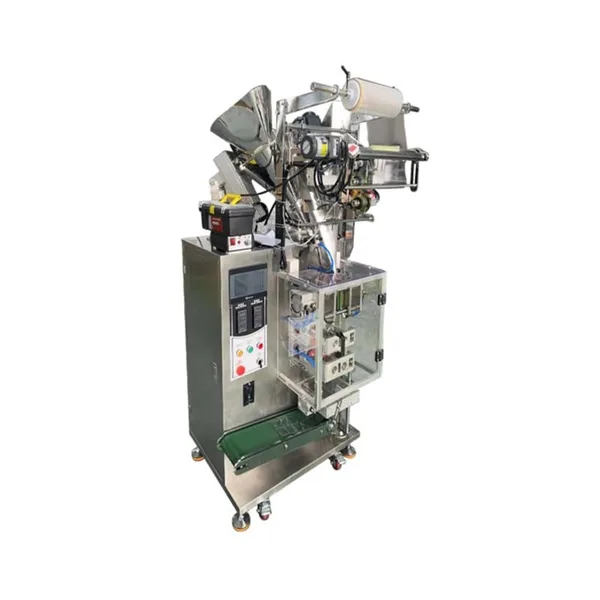

Automatic Vertical Sachet Packaging Machine for Powder and Pepper
Multi-function Vertical Premade Pouch Packaging Machine for Pepper Packing Product Overview The SED-100FLB1-V vertical packaging machine automates the complete packaging process including measuring, bag forming, filling, sealing, cutting, counting, and batch code imprinting. Featuring a stainless steel construction with Chinese display control system, it offers precise operation and easy setup. Key Features Stepping motor operation for high precision packaging Adjustable bag length without mechanical modifications Color indicator recognition for perfect logo alignment Gravi
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100FLB1-V |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Sachet Packaging Machine
- Overall dimension
- 850*800*1700mm
- Power
- 220V 50Hz/60Hz
- Weight
- 250KG
- Key word
- Powder Stick Pack Machine,Automatic Vertical Packaging Machine, Vertical Powder Packaging Machine,Sachet Stick Pepper Packing Machine
The SED-100FLB1-V vertical packaging machine automates the complete packaging process including measuring, bag forming, filling, sealing, cutting, counting, and batch code imprinting. Featuring a stainless steel construction with Chinese display control system, it offers precise operation and easy setup.
- Stepping motor operation for high precision packaging
- Adjustable bag length without mechanical modifications
- Color indicator recognition for perfect logo alignment
- Gravity-driven motorized paper feeding system
- Infinitely adjustable speed and bag length within rated range
- Embedded sealing system with intelligent temperature control
- Multiple cutting options (straight, patterned, connected)
- Low noise operation with distinct seal lines
| Model | SED-100FLB1-V |
|---|---|
| Speed | 20-40 bags/min |
| Power | 220V/380V 50HZ |
| Bag Dimensions | W20-100mm × L40-160mm |
| Weight | 250kg |
| Dimensions | 850×800×1700mm |
The control panel allows simple input of fill amounts and bag dimensions, with automatic synchronization of all operations for optimal efficiency. The reinforced heat-sealing mechanism works with various packaging materials while maintaining excellent thermal equilibrium.
PROJECT ENQUIRY
Discuss your production requirements.
Share the material, target output and any site constraints. The product name is attached to your enquiry automatically.
