Product Overview of Coating Machine​



Tablet coating machine is mainly used in the pharmaceutical industry to the forming of tablet and pills and granulates coating, polishing is suitable for the food industry in mechanism or candy coating, coating after polishing sugar pill with shining surface,



can prevent oxidation, be affected with damp be affected with damp or volatile but also covered the discomfort of taste, to facilitate recognition and ease in the human gastrointestinal drug dissolution.



Product Parameters of Coating Machine

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan ( mm)	300	400	600	800	1000
Rotary Speed of Pan ( r/min)	46	46	46	36	32
Power of Fan( kw)	0.075	0.075	0.075	0.12	0.12
Power of Heat kw	0.75	0.75	1	2	2
Production Capacity( kg/time)	2	5	15	36-50	45-70
Motor( kw)	0.37	0.55	0.75	1.1	1.1
Overall Size ( mm)	520*360*700	540*400*800	930*800*1000	1000*800*1480	1070*1000*1580
Net Weight( kg)	46	52	120	205	230



Use  of Coating Machine

This machine is newly developed in accordance with customer's need as a new laboratory coating machine by adding

the transducer,external heating,temperature controlling,spraying system,based on original sugar coating machine,

can be used for small scale production of film coating.



trait of Coating Machine



1. This coating pot is made of stainless steel, meet the GMP standard.



2. Transmission steady, performance reliable.



3. Convenient to wash and maintain.



4. High thermal efficiency.



5. It can produce the technological requirement and regulate coating in one pot of angle

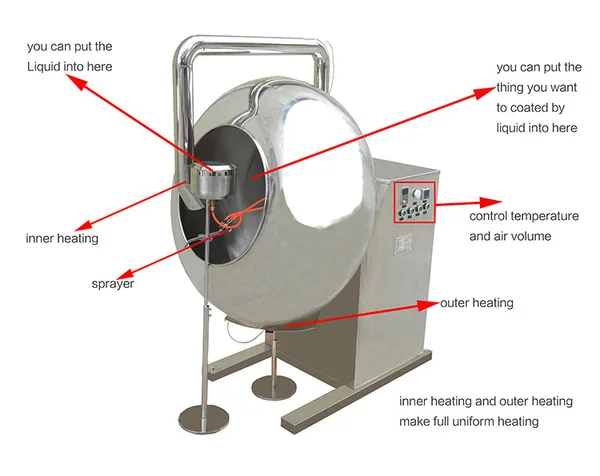

Show of Coating Machine

Application of Coating Machine

This machine can be used to polish various shapes of chocolate, such as round, oblate, oval, sunflower seed, cylindrical, etc., to make it smooth and shiny. Also, the chocolate looks finer when it is polished. Cylindrical chocolates are usually wrapped in multi-colored aluminum foil, and the wrapping paper fits better with the polished chocolate and has a clearer geometry.



This polishing pan is also suitable for powdered peanuts, hard/soft candies, bubble gum, pills and other granular products.
