Automatic Packing Machine

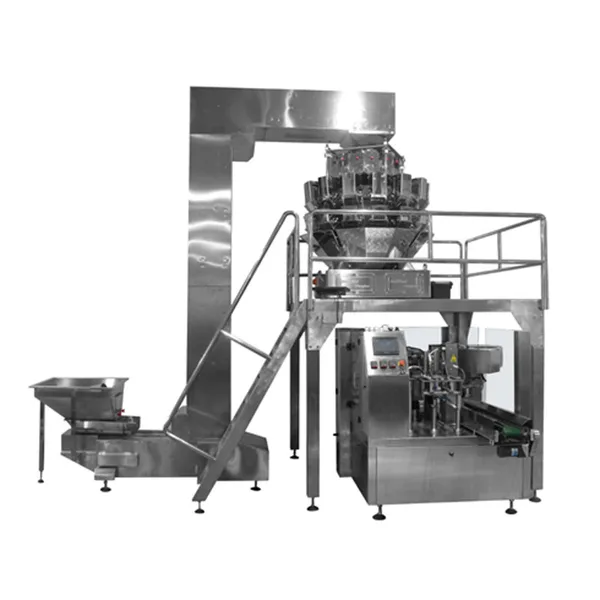

Automatic Premade Bag Granular Packing Machine
Automatic Premade Bag Granular Packing Machine Operation Procedure 1. Bag-giving → 2. Coding → 3. Opening →4.Filling A→ 5. Filling B → 6. Heat sealing A→7.Heat sealing B→8.Forming and output Product Parameters Model Name SED-200KGD-H Packing speed 16-60 bags/min Packing bag size W:80-200mm L: 100-360mm W eighing range 100-500g Air consumption ≤0.6m³/min Supply power 380V 50HZ 3P Total power 6 kw Dimensions (L*W*H) 4280 * 2210 * 3655mm Gross Weight 1800kg+200kg+300kg Precision ≤ ±1% Application Suitable for candies, nuts, raisins, peanuts, melon seeds, nuts, potato chi
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-200KGD-H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Premade Bag Granular Packing Machine
- Packing speed
- 16-60 bags/min
- Tag size
- W：80-200mm L: 100-360mm
- Weighing range
- 100-500g
- Air consumption
- ≤0.6m³/min
- Total power
- Total power
- Power
- 380V 50HZ 3P
- keyword
- Automatic Packing Machine
Automatic Premade Bag Granular Packing Machine
Operation Procedure
1. Bag-giving → 2. Coding → 3. Opening →4.Filling A→ 5. Filling B → 6. Heat sealing A→7.Heat sealing B→8.Forming and output
Product Parameters
| Model Name | SED-200KGD-H |
| Packing speed | 16-60 bags/min |
| Packing bag size |
W:80-200mm L: 100-360mm |
| Weighing range | 100-500g |
| Air consumption | ≤0.6m³/min |
| Supply power | 380V 50HZ 3P |
| Total power | 6 kw |
| Dimensions (L*W*H) | 4280 * 2210 * 3655mm |
| Gross Weight | 1800kg+200kg+300kg |
| Precision | ≤ ±1% |
Application
Suitable for candies, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, tea, biscuits, cat food, dog food and other particles and irregular automatic measurement packaging.
Suitable bag types
Self-supporting bags, zipper bags, four-side sealing bags, three-side sealing bags, paper bags and other composite bags.
Features
Using a computerized combination weigher and a packaging machine combined quantitative automatic packaging system, accurate measurement, fast packaging speed, stable operation, low error and low noise. The material meets the sanitary requirements of food packaging, the sealing effect is good, and the operation is simple. This hoist is suitable for vertical hoisting of granular materials in grain, food, feed and chemical sectors. Widely used in food packaging and other industries, applicable to a wide range of industries
