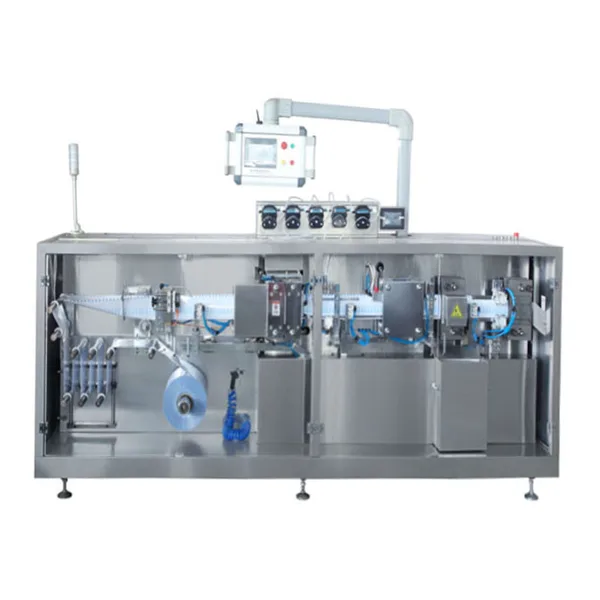

Automatic Plastic Ampoule Liquid Filling And Sealing Machine With Touch Screen

Product application:

This machine is mainly used in lotions, nursing liquid, oral liquid, detergent, eye drops, nutrient solution, beverage, edible oil, lubricating oil, pesticide, medicine, perfume, and special liquid filling. This machine has the advantage of high degree of automation, stable operation, high quality and low cost. It is widely used in pharmaceutical and chemical industry, widely recognized and respected by the users.



Main features:

1. Imported electrical components are used on the basis of the original 240 model, makes the machine running more stably.

2. With the rocker-arm operating interface, you can operate easily in any position of the machine.

3. It adopts high-speed and high-precision motion controller, stepless frequency conversion speed control. And the film pulling device is controlled by servo motor.

4. Human-machine interface makes the operation simple.

5. Automatic unwinding and film slitting. It has photoelectric positive and negative pattern matching function, which makes the exquisite finished products, meet the high standard of packaging requirements.

6. Using electronic peristaltic pump device for dosing (or mechanical piston pump control), easy to adjust.

7. With high filling accuracy, the filling does not leak, have no foam and won’t overflow.

8. High-quality stainless steel 316L is used in the parts contacted with the medicine. All the machine covers are stainless steel 304. It meets the GMP standard.

9. The bottom of the bottle is flat and can stand up.



The main technical parameters:



Item.No	SED-240SP-F
Forming Depth(max)	12mm
Capacity	45-100 pcs/min (15-25 cuttings/min, according to the ampoule size)
Filling Head	5
Packing Material	PET/PE PVC/PE (0.2-0.4) ×240mm
Filling Volume	1-50ml/piece
Power	8.5 kw
Voltage	220V/380V 50/60HZ 3phase
Weight	1200kg
Overall Dimension	3200×850×1900mm
