Automatic Pillow Type Food Packing Sealing Machine For Vegetables

Product Overview of Packaging Machine​



Mainly used for automatic packaging of Fresh Vegetables and fruits. As the last link of modern food production, the stable and safe automatic packaging machine is conducive to food preservation, reducing cost and improving product quality.



Product Parameters of Packaging Machine

Dimension(L*W*H)	3800*935*1350 mm
Capacity	10-60 pcs/min
Max. Speed of Film	20 m/min
Max. Width of Film	400 mm
Max. Diameter of Film	300 mm
Product size (W)	Max.180mm
Product size (H)	Max.80mm
Cut-off Length	90-400mm
Power capacity	2 Phase, 5.0 KVA
Weight	520 kgs



Feature of Packaging Machine



1. Anti-Empty bag device: When the sensor does not detect the product, the sealing device of the packaging machine will stop running and wait for the conveyor belt to feed, and does not make empty bags to avoid unnecessary waste of the packaging film.



2. Anti-cutting device: When the sensor detects that the product is misaligned, the device will automatically skip the product and wait for the next product to arrive. This not only eliminates the loss of the product being cut but also avoids the damage of the sealing props, thereby reducing the failure rate and prolonging the mechanical life.



3. Anti-bite device: When the sensor detects that there is something else or the product has been cut, the system will determine whether the item is cut, and will immediately return to the original point and stop.



4.V-type feeding conveyor belt: It is made of stainless steel baffle and belt that can be dismantled and washed, paying attention to the safety and hygiene of the machine.



5. Code device



6. Automatic length measuring device



7. There also is manul input length system to meet diffent material.

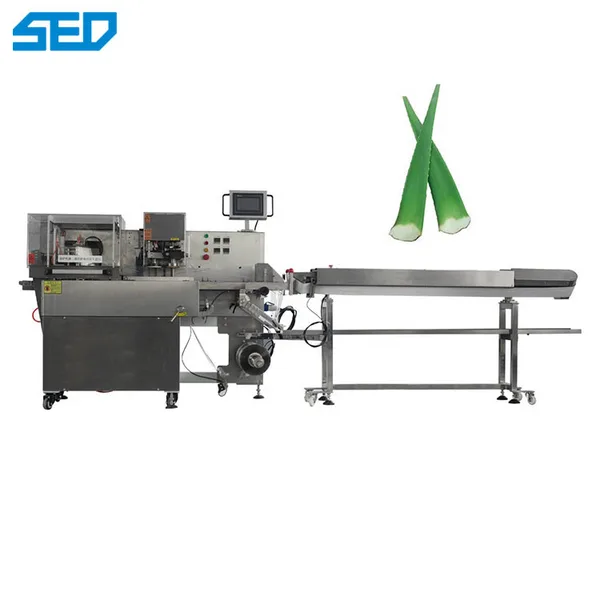

Product Show of Packaging Machine

Application of Packaging Machine​

Horizontal packaging machines have been widely used in many fields around the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial food, rubber products, groceries, sporting goods, etc.
