Automatic Packing Machine

Automatic Packing Machine Carton Case Packer Box Machine

Name: Automatic Packing Machine Carton Case Packer Box Machine
Brand: SED-Pharma

Summary: It can automatically perform functions such as carton opening, bottom folding and bending, bottom tape pasting, and output, which is economical and efficient. Performance Characteristics: The entire operation process must be completed in a stable state, with sufficient reliable positioning and protection measures, and must not cause damage or destruction to the cardboard box. Production capacity: 3-15 boxes/minute. (1) Open the box smoothly and beautifully. Successful unboxing and pass rate ≥ 99.9%. (2) There is a control screen interface for independent debugging

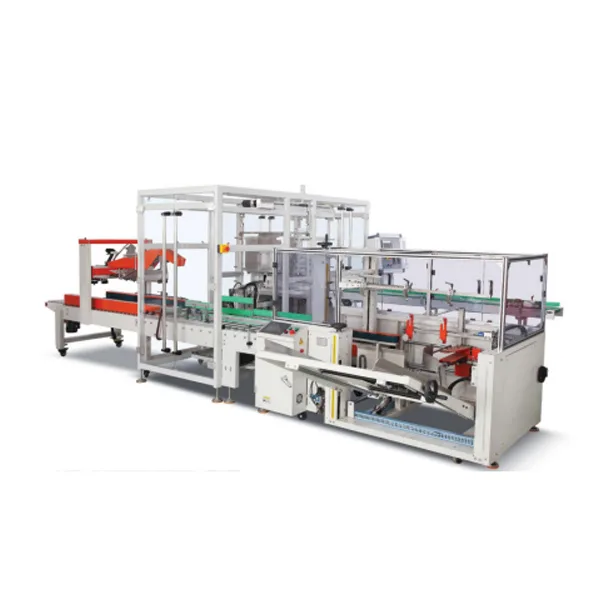

Automatic Packing Machine Carton Case Packer Box Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-300ZX-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Packing Machine Carton Case Packer Box Machine
Warranty: 1 year
Voltage: 220V/110V
Type: Multi-Function Packaging Machine

Summary:
It can automatically perform functions such as carton opening, bottom folding and bending, bottom tape pasting, and output, which is economical and efficient.

Performance Characteristics:
The entire operation process must be completed in a stable state, with sufficient reliable positioning and protection measures, and must not cause damage or destruction to the cardboard box. Production capacity: 3-15 boxes/minute.
(1) Open the box smoothly and beautifully. Successful unboxing and pass rate ≥ 99.9%.
(2) There is a control screen interface for independent debugging and production control of a single machine, and it has digital and Chinese displays and prompts for output counting, machine operating speed, and equipment failures. There are safety protection functions such as fault alarm, fault shutdown, and emergency shutdown.
(3) The size changes of cardboard boxes can be conveniently and accurately adjusted through a handwheel.

Technical Parameter:

Mechanical dimensions	L2000mm×W1900mm×H1450mm
Applicable cardboard box range	L (600 -200)W (500 -最小150)H(350 -100)
Box capacity	720 pieces per hour (maximum)
Stacking amount of cardboard boxes	100 pieces/hour (corrugated cardboard box)
Paper box material	General specification corrugated paper
Use adhesive tape	OPP； Kraft paper 38 mm or 50 mm wide
Box size transformation	Adjust the handle for about 1 minute
Power supply	Single phase 220V
Air source	0.5MPa(5Kg/cm2)
Air Consumption	300L/ min
Mechanical weight	600Kg
