Liquid Filling Machine
Automatic Oral Liquid Filling Machine Vial Filling Stoppering And Capping Machine
Automatic Oral Liquid Filling Machine Vial Filling Stoppering And Capping Machine General Features of Liquid Filling Machine SED-1/1XGS Automatic Filling Stoppering and Capping machine for the application of liquid (sterile injection) filling stoppering and capping for plastic or glass bottles. The machine is composed by a bottle turntable,single head vial filling Stoppering machine and single head capping machine. With option of addding 100 class laminar air flow hood and 4 gloves box for injectable liquid. Product Parameters of Liquid Filling Machine Kind of bottl
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1/1XGS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after receiving the advance payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Oral Liquid Filling Machine Vial Filling Stoppering And Capping Machine
- Item Name
- Vial filling stoppering and capping machine
- Capping nozzles
- 1
- Cap size
- 20-500ml
- Filling Volume
- 0.1-30ml
- Filling accuracy
- ±1%
- material
- stainless steel
- key word
- Liquid Filling Machine
Automatic Oral Liquid Filling Machine Vial Filling Stoppering And Capping Machine
General Features of Liquid Filling Machine
SED-1/1XGS Automatic Filling Stoppering and Capping machine for the application of liquid (sterile injection) filling stoppering and capping for plastic or glass bottles.
The machine is composed by a bottle turntable,single head vial filling Stoppering machine and single head capping machine. With option of addding 100 class laminar air flow hood and 4 gloves box for injectable liquid.
Product Parameters of Liquid Filling Machine
| Kind of bottle | Various kinds of plastic/glass bottle |
| Bottle size* | Min. Ø 20mm Max. Ø80mm |
| Kind of cap | Alternative Screw on cap, alum. ROPP cap |
| Cap size* | Ø 20~ Ø45mm |
| Filing nozzles | 1heads |
| Speed | 40~50bpm |
| Alternative Filling volume* | 0.1ml-30ml |
| Filling accuracy | ±1% |
| Power* | 220V 50/60Hz 1.2kw |
| Compress air require | 10L/min, 4~6bar |
| Machine size mm | Length 4000, width 1000, height 1600 |
| Machine weight: | 1880kgs |
Characteristics of Liquid Filling Machine
Adopt volumetric injection pump to fill high precision, also fill various viscosity liquid.Easy knock-down pump structure, convenient to clean and sterilize.
The piston ring of volumetric injection pump use different material of silicone, viton or other kinds according to liquid characteristic, use ceramic pump in special industry.
PLC control system, frequency conversion adjusting speed, high degree automatization.
Filling quantity of all pumps is adjusted in a lump, minim adjustable. Easy and quick operate.
Filling system has the function of shrinking, no drop leak. Bottom diving fill, no foam.
Suitable to various sizes of container, easy adjusting, short time cost.
Change the parts on the stoppering machine can easily achieve half stoppering fuction. Be prepare for freez drying process.
Has option of adding air flow hood and gloves box to the line.
The whole machine is designed according to requirements of GMP.

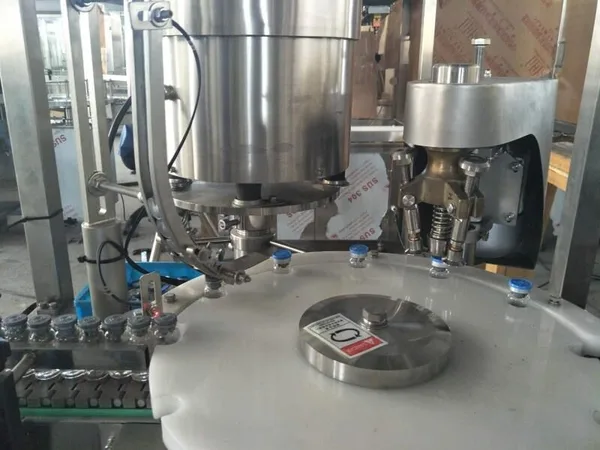

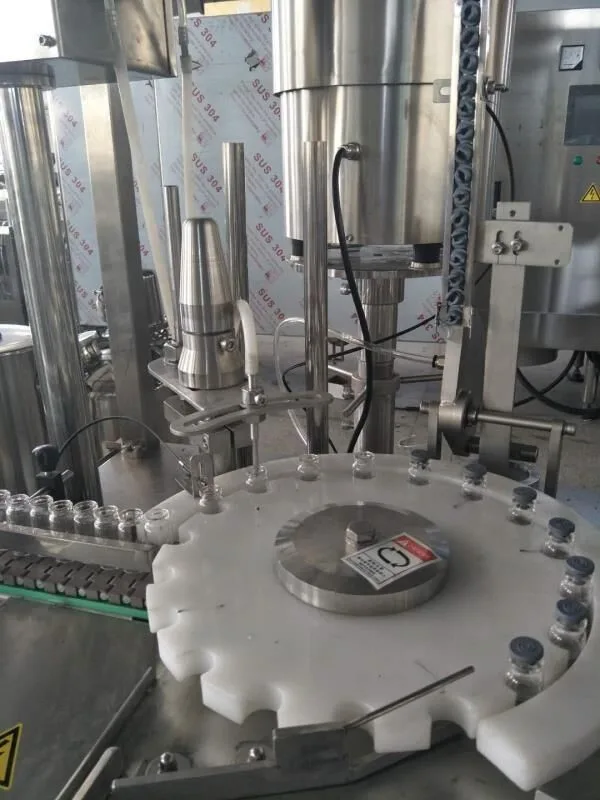

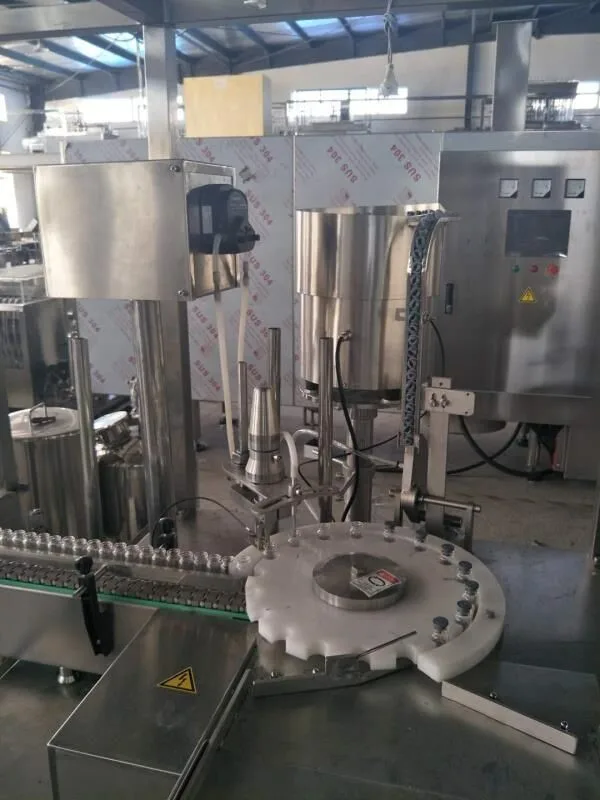

Products Show of Liquid Filling Machine

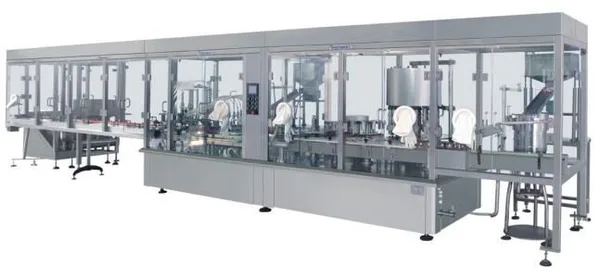

Application of Liquid Filling Machine
