Automatic Packing Machine

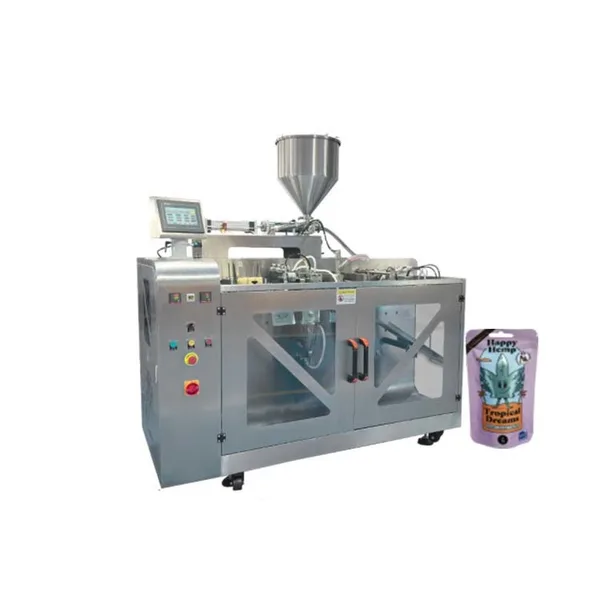

Automatic Honey Sachet Packaging Machine 20-50 Bags/Min 3KW
Multifunctional Automatic Liquid Sachet Packaging Machine With Pre-made Bags Product Specifications Attribute Value Name Sachet Packaging Machine Dimension (L*W*H) 1825*860*1450mm Power 3KW Weight 600kg Product Description The material metering and packaging system of this equipment integrates a horizontal bag-feeding packaging machine and a feeding system. Its bag-placing slot enables easy bag loading, and a handwheel knob valve allows for convenient adjustment of bag types. Key Features Integrated system combining horizontal bag-feeding packaging with feeding system Easy-
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-160YGD-V |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Sachet Packaging Machine
- Dimension(L*W*H)
- 1825*860*1450mm
- Power
- 3KW
- Weight
- 600kg
- Key word
- Honey Sachet Packaging Machine, Sachet Packaging Machine, Bag Packing equipment
| Attribute | Value |
|---|---|
| Name | Sachet Packaging Machine |
| Dimension (L*W*H) | 1825*860*1450mm |
| Power | 3KW |
| Weight | 600kg |
The material metering and packaging system of this equipment integrates a horizontal bag-feeding packaging machine and a feeding system. Its bag-placing slot enables easy bag loading, and a handwheel knob valve allows for convenient adjustment of bag types.
- Integrated system combining horizontal bag-feeding packaging with feeding system
- Easy-load bag-placing slot with adjustable bag types via handwheel knob valve
- Imported pressure sensor prevents feeding/sealing when bags remain unopened, saving materials
- Dual servo-driven system ensures faster packaging speed and precise weight measurement
- Color touchscreen interface for simple operation and multi-functional control
- 304L stainless steel exterior with acid/salt-resistant coatings on carbon steel components
- High-quality mold-formed components using 304 stainless steel and aluminum oxide
- Optional accessories including coding, inkjet printing, exhaust, and punching systems
| Model | SED-160YGD-V |
|---|---|
| Speed | 20-50 bag/min |
| Power | 3kw 50Hz |
| Suitable air compressor | 0.5m³/min |
| Weight | 600kg |
| Dimensions (L*W*H) | 1825*860*1450mm |
