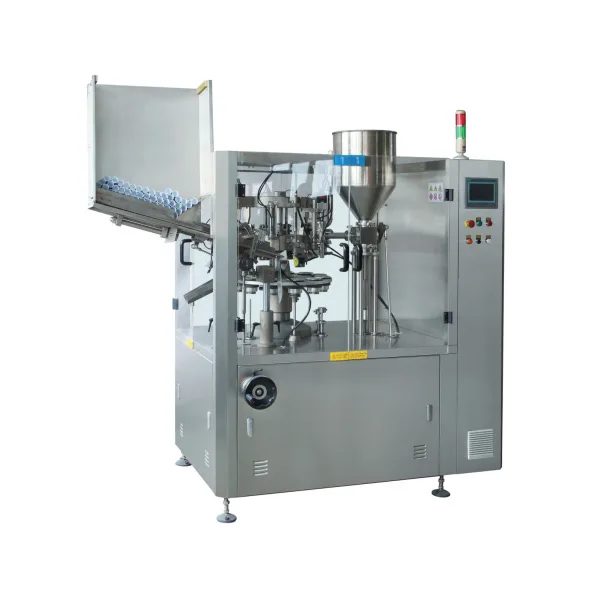

Automatic Aluminum Tube Filling and Sealing Machine

Introduction

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Technical Parameters and Configuration Standard

Features and innovation

1. The product has 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of ALU tube. It is a multi-purpose machine.

2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

3. With external reversal feeding system, makes tube charging more convenient and tidier.

4. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

5. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

6. Double-layer jacket instant heater with inside air heating, it won’t damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.
