Automatic Packing Machine

Assembly And Packaging 100ml Syringe Filling Equipment

Name: Assembly And Packaging 100ml Syringe Filling Equipment
Brand: SED Pharma

Assembly And Packaging 100ml Syringe Filling Equipment Product Parameters of Syringe Filling Machine Syringe volume 0.5-100ml 0.5-100ml 0.05-100ml Filling volume ≤±0.3% 0.05-100ml 1 pc Filling accuracy 1500-2000 pcs per hour ≤±0.3% 2.1kw Filling nozzles 0.55-0.75Mpa 20L/S 1 pc 1200×800×1800mm Working Principle of Syringe Filling Machine This machine consists of syringe tray, filling system, stopper supplying system and electric control system. The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to

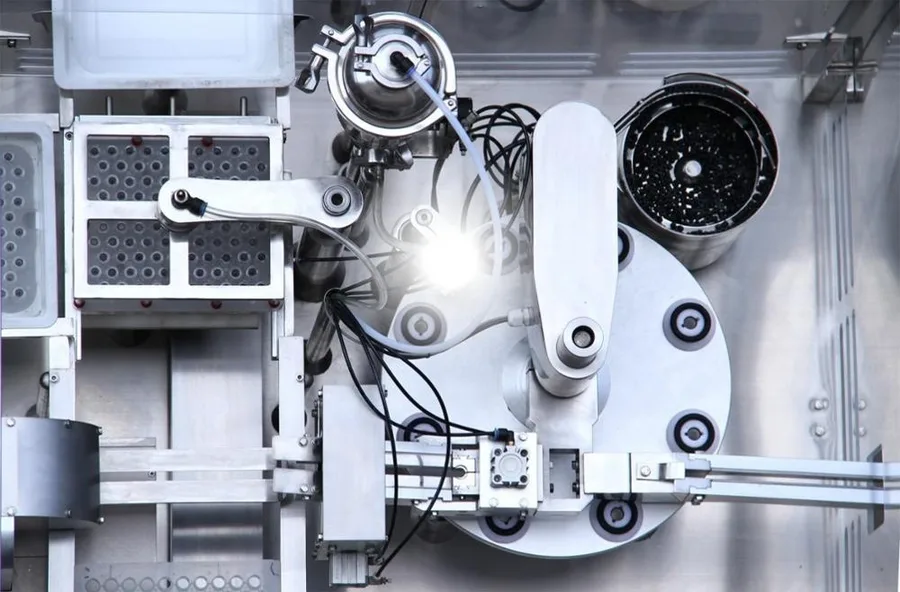

Assembly And Packaging 100ml Syringe Filling Equipment, view 1

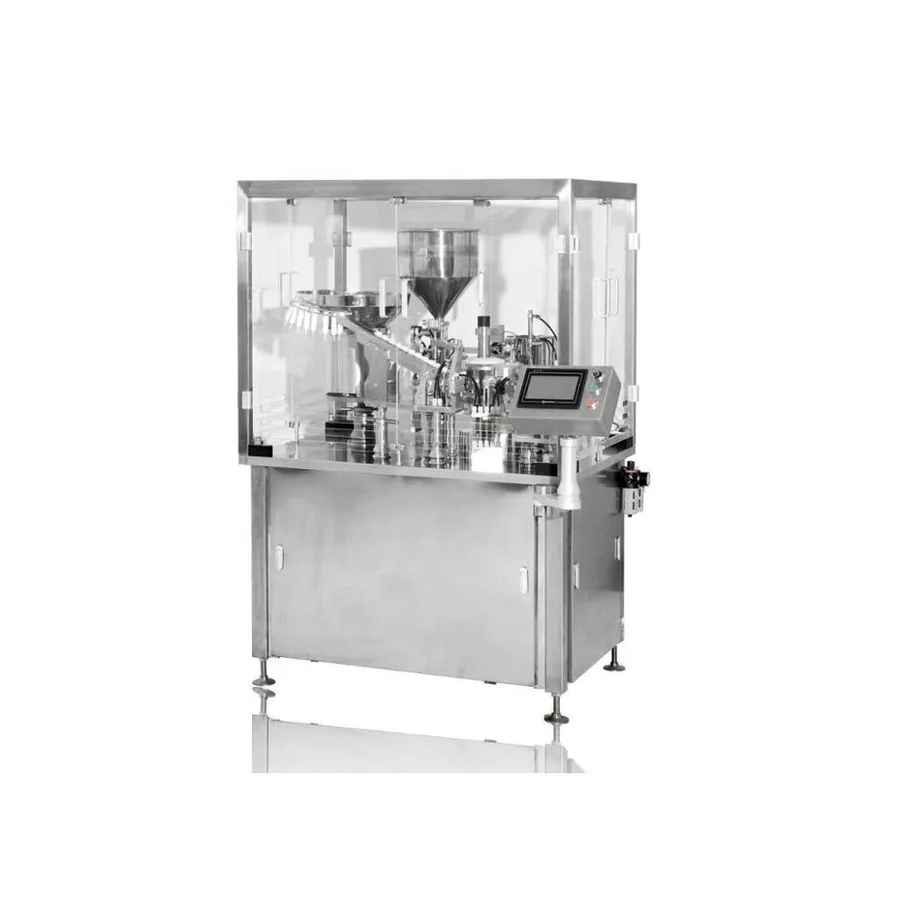

Assembly And Packaging 100ml Syringe Filling Equipment, view 2

Assembly And Packaging 100ml Syringe Filling Equipment, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Assembly And Packaging 100ml Syringe Filling Equipment
Syringe volume: 0.5-100ml
0.5-100ml: 0.05-100ml
Filling accuracy: 1500-2000 pcs per hour
Filling nozzles: 0.55-0.75Mpa 20L/S
Outer Dimension:: 1150*400*1000 mm
material: stainless steel
key word: Syringe Filling Machine

Assembly And Packaging 100ml Syringe Filling Equipment

Product Parameters of Syringe Filling Machine

Syringe volume	0.5-100ml
0.5-100ml	0.05-100ml
Filling volume	≤±0.3%
0.05-100ml	1 pc
Filling accuracy	1500-2000 pcs per hour
≤±0.3%	2.1kw
Filling nozzles	0.55-0.75Mpa 20L/S
1 pc	1200×800×1800mm

Working Principle of Syringe Filling Machine

This machine consists of syringe tray, filling system, stopper supplying system and electric control system.

The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to move in the horizontal direction to fill the syringe and seal it.

Characteristic of Syringe Filling Machine

Servo motor control, filling precision is high, running speed is high, filling error is small.

Ceramic pump filling, without dripping, easy to disassemble and clean.

Horizontal positioning is precise, running is stable, and the change of the syringe tray is easy.

Touch panel operation and plc control, with inter-lock function, relable safety standard and high automation degree.

Ce certified, standard electric installation, safety guarantee on operation.

Equip with acrylic glass protection hood.

Optional 100-class laminar flow
Optional nitrogen, filling and vacuum device
The whole machine is designed according to gmp requirements.

Feature of Syringe Filling Machine

Load a tray by hand and to load syringes tubes automatically and continuously

The needle of syringes are filling and the liquid going up, Be sure the liquid no overflow

Insert plunger with vacuum, be sure the plunger and liquid level closed enough without air.
