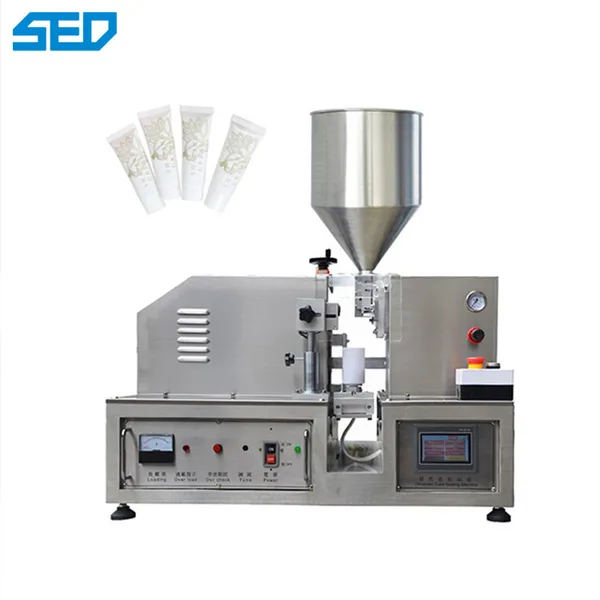

Aluminum Tube Filling Sealing Machine for Medicine



Product Description of Tube Filling Machine



The machine is suitable for medicine, food, cosmetics, daily chemical industry, the machine has two process, sealing and trimming, which is suitable for sealing of plastic tubes, with Unilateral coding, MCU control, human-machine operation, the operation is easy and the whole running is stable.



Product Parameters of Tube Filling Machine​

power	1.6kw
Capacity	10~20pcs/min
Suitable tube size	Diameter≤φ45 Height≤200
Power supply	220V 50Hz
Air Supply Pressure	0.6~0.8Mpa
Dimension	560×537×880



Advantages of Tube Filling Machine



1.It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.



2.Extensional organization of the machine is made of aluminium alloy and stainless steel.



3.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.



4.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.



5.It's with the function of overload protection, phase difference protection, and power-fail protection



6.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.



7.It's with the function of automatically cutting



8.Anti-leak filling nozzle deep into inside of hose, while there is a bottom-up filling process is complete when filling and sealing, no leakage or overflow. Machine is suitable for a variety of different physical and chemical properties of the filling material requirements. Filling volume fine hand wheel placed in the external body, tight regulation and very convenient to ensure filling accuracy ≤± 1%, cost savings and truly accurate measurement.



9.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.
