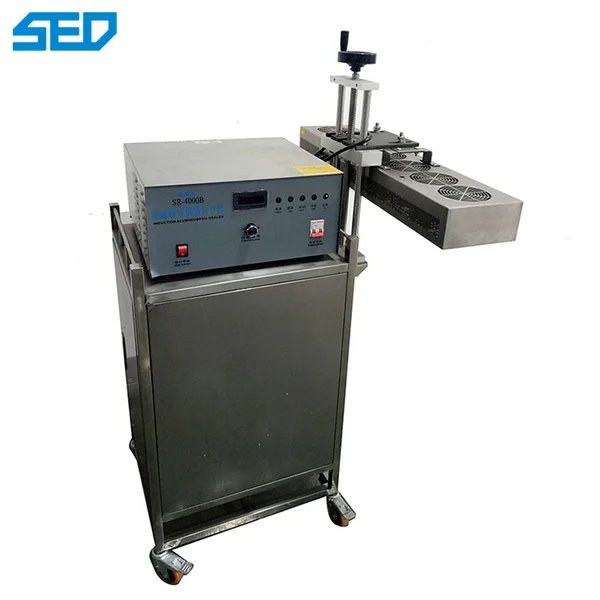

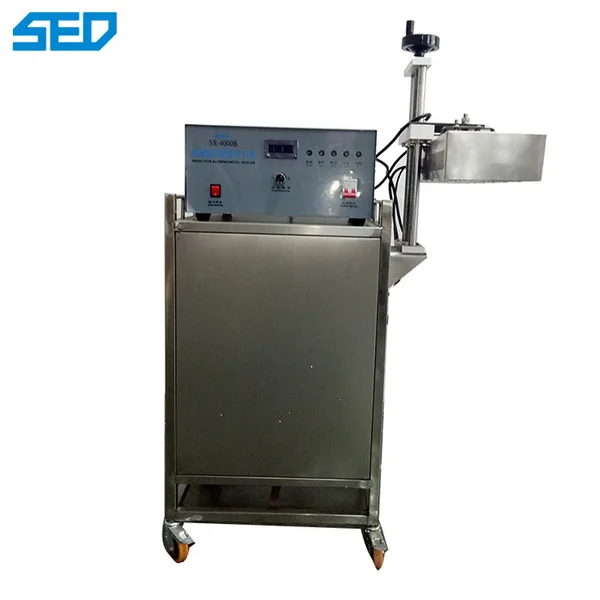

Aluminum Foil Induction Heating Sealing Machine



Machine Parameters of Packing Machine

Project		Unit	Parameter
Power supply			220V
Power		w	4000
Bottle cap diameter		mm	20-60mm;60-120mm
sealing speed		m/min	0-15
product size	length	mm	1500
	weigh	mm	600
	height	mm	1450



Product Description of Packing Machine​

Induction cap sealer in a non-contact heating process that accomplishes the hermetic sealing of a bottle with a cap which includes a heat-sealable foil liner.



When the bottles pass under the induction coil,the seal film of foil liner is heated and attached onto the lip of bottle.Affter,cooled,the seal film creates a bond with the bottle resulting in a sealed product.



This machine can be widely used in pharmaceutical, food, oil, chemical, agrochemical and other kinds of user of bottle sealing, such as plastic bottles (PP, PVC, PET, ABS, HDPE, PS, DURACON) glass bottles and a variety of composite plastic hose and various non contact type heat sealing, It is most advanced device which is currently recognized for sealing



Main Features of Packing Machine

The automatic induction sealing machine is easy to operate. It can identify non-foil bottles and the sealing quality is stable and reliable Sealing fast



Microcomputer controlling mode, with the memory function, and power is adjustable



Adopting high-tech electronic chips, high brightness digital display, high precision, clear reading, without parallax, and can be observed in distance



1.sealing process in non-contact,the sealing is efficient and perfect.



2.The induction power could be adjusted easily accroding the sealing speed.



3.WIdely application for non-metal material glass containers or plastic bottles.



4.It can be incorporated with a packing line.



5.The height of the bottle is adjustable, it can be applied to bottles of various heights.



6.The equipment works continuously and the operation is simple.



7.Optional missing foil detecting and alarm device,missing foil detecting and reject device.
