Powder Granulator Machine

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment

Name: 600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
Brand: SED Pharma

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment Product Parameters of Powder Granulator Machine Item Unit Model/specification Volume of Container Liter 600 Capacity Kg/batch 200-250 Mixing speed r,p,m 2-120 Mixing power kw 30 Cutting speed r.p,m 100-2500 Cutting power kw 11 Pressure of compressed air Map 04-0.6 Consumption of compressed air M3/min 06 Mesh Mesh 20-80 Size: Mm 2100x1600x2300 Weight Kg 1800 Application of Powder Granulator Machine The machine is a process machine widely applied for solid preparation production in the pharmaceutical

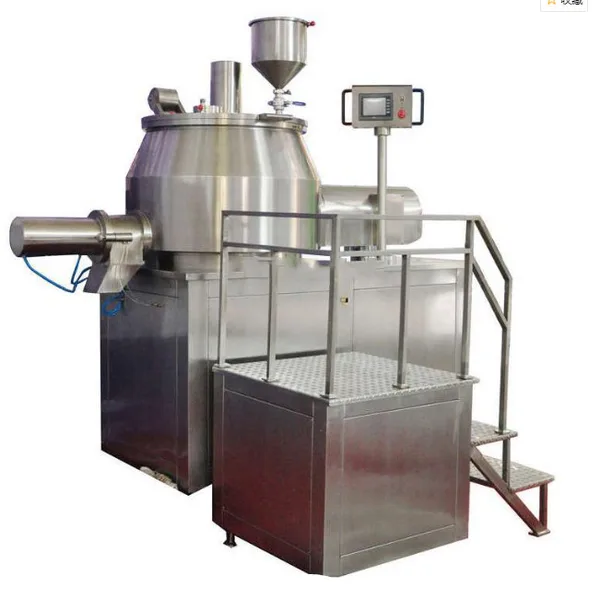

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment, view 1

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-600SZ-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Sets per month
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	40 working days after receiving the deposit

Request configuration

Configuration and product details

Technical overview

Name: 600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
Material: Stainless Steel
Dimension: 2100x1600x2300 mm
Weight: 1800kgs
Volume: 600L
Mixing Speed: 2-120RPM
Mixing Power: 30KW
key word: Powder Granulator Machine

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment

Product Parameters of Powder Granulator Machine

Item	Unit	Model/specification
Volume of Container	Liter	600
Capacity	Kg/batch	200-250
Mixing speed	r,p,m	2-120
Mixing power	kw	30
Cutting speed	r.p,m	100-2500
Cutting power	kw	11
Pressure of compressed air	Map	04-0.6
Consumption of compressed air	M3/min	06
Mesh	Mesh	20-80
Size:	Mm	2100x1600x2300
Weight	Kg	1800

Application of Powder Granulator Machine

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, food, chemical industry, etc.

Working Principle of Powder Granulator Machine

The powder materials are fed into the mixing vessel through the dispensing system. Through rotation and push by the mixing paddle at the bottom, they first move under a fluidizing status and get sufficient mixing.

Then the adhesive is injected through the pressure spray gun to turn the dry powders into wet and soft materials. Meanwhile, they are made into even wet granules under the double actions of the mixing paddle and the high-speed cutter on the side wall.

Function Feature And The Principle Of Action

This machine is used for size reduction or milling of Dry or wet granules. Granules fed through top inlet hopper, flow by gravity in to granulating chamber. The principe of the granulating operation is to apply continuous shearing force to press out and form granules through sieve screen. The granules are subsequently presented through bottom discharge port into product container.

Products Show of Powder Granulator Machine
