380V 50HZ/60HZ Three Phase Multi Functional Automatic Packing Machine Arabic Gum Zipper Pouch Packaging Machine

380V 50HZ/60HZ Three Phase Multi Functional Automatic Packing Machine Arabic Gum Zipper Pouch Packaging Machine



Product Description of Packing Machine

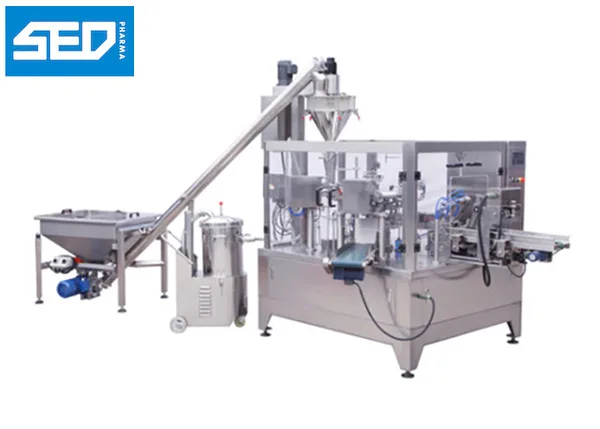

Rotary bag-given packing machine with different dosing (such as multihead weigher,auger filler,liquid filler etc.) can be suitable for the automatic packing for granular,powder,liquid,paste etc.Different kinds of product with the premade stand-up zipper pouch and so on.



Main Technical Data of Packing Machine

Working position	Eight-working position
Pouch material	Laminated film PE,PP
Pouch pattern	stand-up&zipper pouch
Pouch size	W:100-210mm L:100-350mm
Filling Scope	10-5000g( The screw attachment is to be changed)
Weight Accuracy	Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed	10-45pouches/min(The speed depends on the product status and flling weight))
Voltage	380V 3phase 50HZ/60HZ
Total power	8.5KW
Compress air	0.6m3/min(supply by user)



Features of Packing Machine



1. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.



2. It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.



3. Use the plastic bearing, don’t need put on oil, less pollution.



4. Use no oil vacuum pump, avoid polluting the environment in the production.



5. The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when opne the zipper



6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
