Automatic Packing Machine

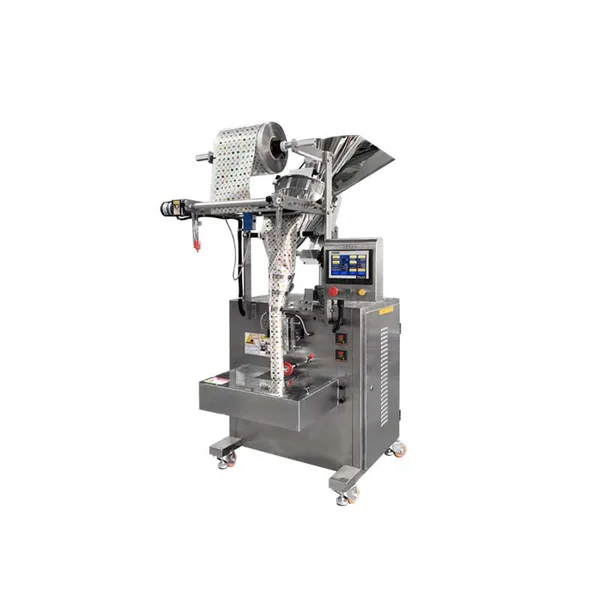

220V Automatic Sachet Packaging Machine for Snacks
Automatic 1-100g Vertical Packaging Machine for Snack Product Overview The SED-140FLB2-Y vertical packaging machine combines advanced automation with precision engineering for efficient snack packaging operations. Key Features Color touchscreen interface with PLC control for intuitive operation Stepping motor-driven bag length control for stable performance Precision temperature regulation with PID adjustment (±1℃) Automatic bag forming, measuring, feeding, sealing, and counting Optional batch number printing capability Comprehensive alert systems to minimize production los
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-140FLB2-Y |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Sachet Packaging Machine
- Overall dimension
- 850*1100*1900mm
- Power
- 220V
- Weight
- 350KG
- Key word
- Vertical Powder Packaging Machine,Stick Packing Machine, Vertical Packaging Machine
The SED-140FLB2-Y vertical packaging machine combines advanced automation with precision engineering for efficient snack packaging operations.
- Color touchscreen interface with PLC control for intuitive operation
- Stepping motor-driven bag length control for stable performance
- Precision temperature regulation with PID adjustment (±1℃)
- Automatic bag forming, measuring, feeding, sealing, and counting
- Optional batch number printing capability
- Comprehensive alert systems to minimize production losses
| Attribute | Value |
|---|---|
| Model | SED-140FLB2-Y |
| Speed | 30-60 bags/min |
| Power | 220V |
| Packing Bag Specifications | W:30-140mm L:30-180mm |
| Weight | 350kg |
| Overall Dimensions | 850×1100×1900mm |
