Automatic Packing Machine

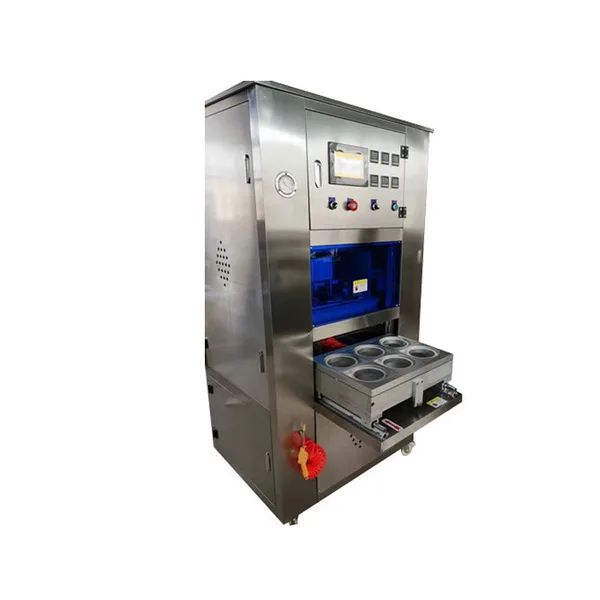

1200 Cups/H Automatic Vacuum Sealing Machine with 115mm Diameter for Stainless Steel Containers
1200 Cups/H Automatic Packing Vacuum Sealing Machine Stainless Steel Diameter 115mm Product Overview The Automatic Vacuum Sealing Machine is a high-performance, fully automatic vacuum sealing machine designed for plastic cups and containers. It integrates vacuuming, sealing, and film cutting into one efficient process. Built with premium brand components, it ensures long-term reliability and is ideal for the food, pharmaceutical, and chemical industries that require superior seal integrity. Product Parameters Model SED-8ZKF-B Capacity 1200 cups/h (8 cups at a time) Cup size
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-8ZKF-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Vacuum Sealing Machine
- Capacity
- 1200cups/h(8 cups at a time)
- Cup size
- Diameter 115mm, height 80mm
- Power
- 220V/50Hz 5KW
- Working air pressure
- 0.6-0.8Mpa
- Dimension(l*w*h)
- 900*850*1600mm
- Weight
- 350kg
- Key word
- vacuum packaging machine，vacuum seal machine
1200 Cups/H Automatic Packing Vacuum Sealing Machine Stainless Steel Diameter 115mm
Product Overview
The Automatic Vacuum Sealing Machine is a high-performance, fully automatic vacuum sealing machine designed for plastic cups and containers. It integrates vacuuming, sealing, and film cutting into one efficient process. Built with premium brand components, it ensures long-term reliability and is ideal for the food, pharmaceutical, and chemical industries that require superior seal integrity.
Product Parameters
| Model | SED-8ZKF-B |
|---|---|
| Capacity | 1200 cups/h (8 cups at a time) |
| Cup size | Diameter 115mm, height 80mm |
| Power | 220V/50Hz 5KW |
| Working air pressure | 0.6-0.8Mpa |
| Body material | Stainless steel |
| Weight | 350kg |
| Dimensions (L*W*H) | 900*850*1600mm |
Operational Process
Manual cup loading
→ Automatic vacuuming
→ Automatic sealing & film cutting
→ Automatic film winding (with pattern alignment)
→ Manual cup unloading
Core Configuration (Brand Assurance)
- Control System: Omron PLC (Japan) + WEINVIEW Touch Screen (Taiwan)
- Key Components: AirTAC pneumatic components, Schneider AC contactor
- Vacuum System: Zhongde Vacuum Pump (Shanghai)
- Actuators: LPG-MOTOR film winding motor, JELPC solenoid valve, etc.
Warranty & Service
- Warranty Period: 2 years for the main machine, lifetime maintenance support (Excludes misuse and consumables)
- Technical Service: Free remote support; lifelong spare parts and repair services available after warranty.
