10 KG/Batch Capacity Fluid Bed Dryer Machine Wet Granules And Powder Materials Usage

High Efficency fluid bed drying machine For Wet Granules and Powder Materials



Product Parameters of Fluid Bed Drying Machine​

FG-10 Main Technical Parameters
Model	FG-10
Item
Capacity of material bucket(L)	30
Production capacity(kgbatch)	10
Temperature (℃)	indoor ～120℃ adjusting
Power of Fan(kw)	3
Compressure of compressed air(Mpa)	0.45
Consumption of compressed air (M3/min)	0.6
Steam Heater(㎡)	20



Principle of Fluid Bed Drying Machine



After air is purified and heated, then it will be introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect.



The moisture is evaporated and removed rapidly and the raw material is dried quickly.



Feature:

• Fluidized bed is round so that to avoid the dead corner.
• Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.
• The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.
• Overturning discharge of the machine is convenient, quick and complete.
• Operated at sealed negative pressure and designed by GMP.
• This equipment can be designed and manufactured to be feeding and discharging automatically as requirements.

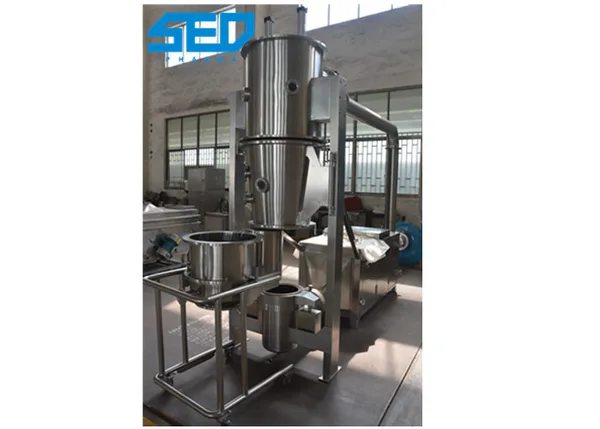

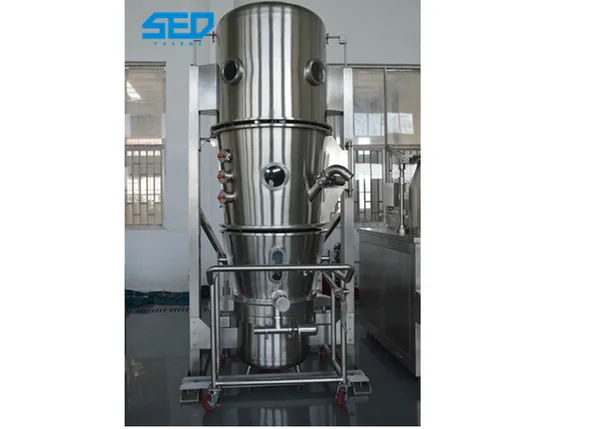

Product Show of Fluid Bed Drying Machine





Application of Fluid Bed Drying Machine​

• Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
• Large granules, small block, viscous block granular materials.
• The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.
