Vacuum 30ml Prefilled Syringe Filling Machine Liquid Filling Machine
Vacuum 30ml Prefilled Syringe Filling Machine Liquid Filling Machine Product Description Product Parameters of Liquid Filling Machine Name Prefilled syringe machine Filling volume 0.1-0.5ml/0.5-3ml/3-10ml/10-30ml capacity 2000-3500 syringes/hour vacuum 0--98Kpa(0--750mmHg) Nitrogen 1kg/cm^2,0.1m^3/min Compressed air 6kg/cm^,0.35m^3/min Working Principle of Liquid Filling Machine This machine consists of syringe tray, filling system, stopper supplying system and electric control system. The two servo motors control the ceramic pump to set the filling volume. The other
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-5ZGS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Vacuum 30ml Prefilled Syringe Filling Machine Liquid Filling Machine
- Filling volume
- 0.1-0.5ml/0.5-3ml/3-10ml/10-30ml
- capacity
- 2000-3500 syringes/hour
- vacuum
- 0--98Kpa(0--750mmHg)
- Nitrogen
- 1kg/cm^2,0.1m^3/min
- Compressed air
- 6kg/cm^,0.35m^3/min
- material
- stainless steel
- key word
- Liquid Filling Machine
Vacuum 30ml Prefilled Syringe Filling Machine Liquid Filling Machine
Product Description
Product Parameters of Liquid Filling Machine
|
Name
|
Prefilled syringe machine
|
|
Filling volume
|
0.1-0.5ml/0.5-3ml/3-10ml/10-30ml
|
|
capacity
|
2000-3500 syringes/hour
|
|
vacuum
|
0--98Kpa(0--750mmHg)
|
|
Nitrogen
|
1kg/cm^2,0.1m^3/min
|
|
Compressed air
|
6kg/cm^,0.35m^3/min
|
Working Principle of Liquid Filling Machine
This machine consists of syringe tray, filling system, stopper supplying system and electric control system.
The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to move in the horizontal direction to fill the syringe and seal it.
Characteristic of Liquid Filling Machine
Servo motor control, filling precision is high, running speed is high, filling error is small.
Ceramic pump filling, without dripping, easy to disassemble and clean.
Horizontal positioning is precise, running is stable, and the change of the syringe tray is easy.
Touch panel operation and plc control, with inter-lock function, relable safety standard and high automation degree.
Ce certified, standard electric installation, safety guarantee on operation.
Equip with acrylic glass protection hood.
Optional 100-class laminar flow
Optional nitrogen, filling and vacuum device
The whole machine is designed according to gmp requirements.
Feature of Liquid Filling Machine
1. The machine will automatically sort the syringes.
2. The machine will automatically load syringes
3. The machine will do filling automatically
4. The machine will sort the caps automatically
5. The machine will put the caps automatically
6. This machine can be used as individual machine, alsocan form as production line with labeling machine

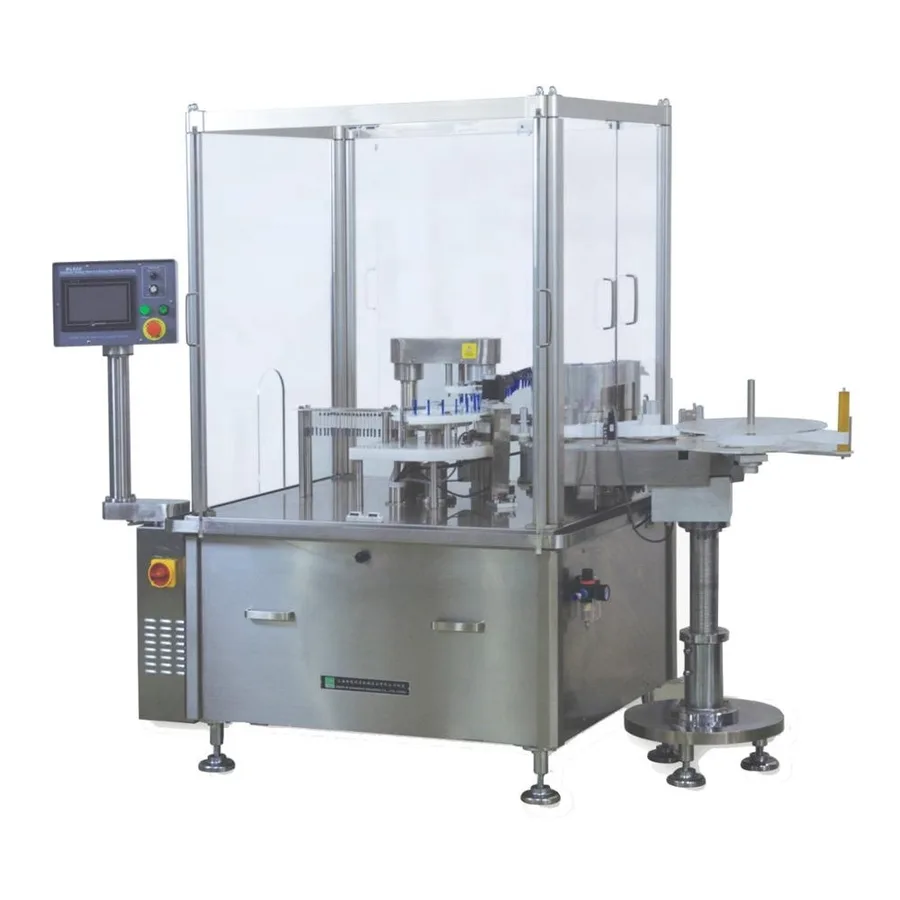

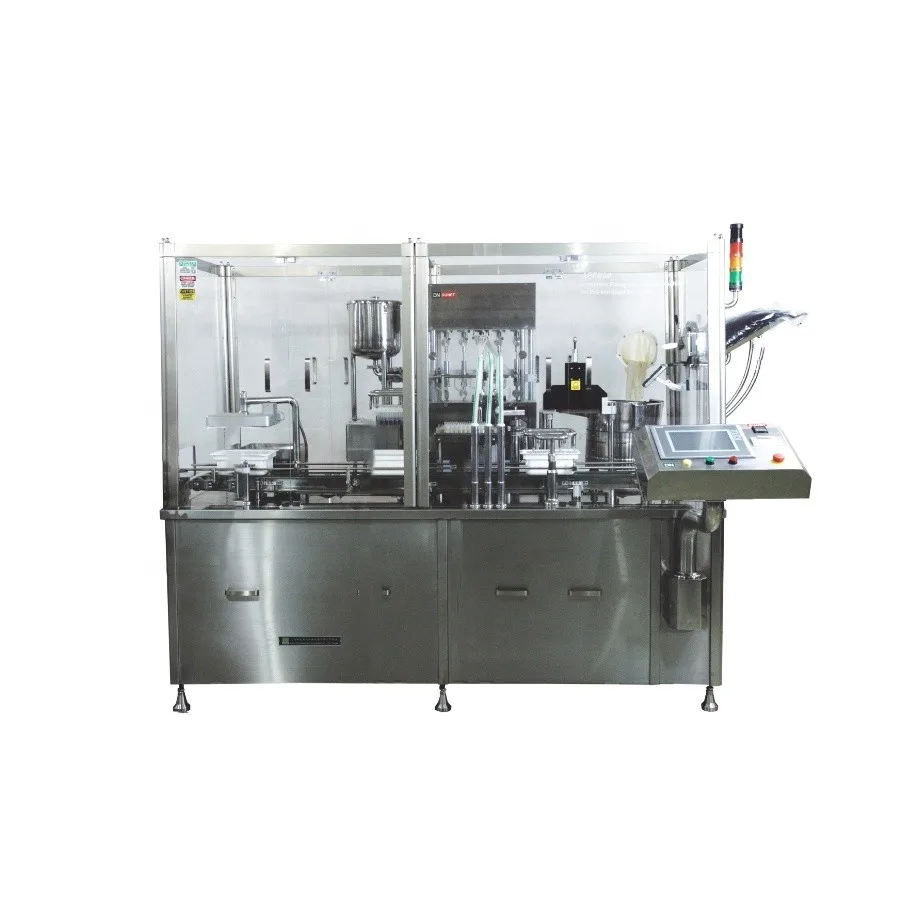

Product Show of Liquid Filling Machine
Application of Liquid Filling Machine
This machine is suitable for quantitative filling of gel, hyaluronic acid, high viscosity liquid, paste and other materials.
