Capsule Filling Machine
Touch Screen Control Size 0 Capsule Filling Machine Pharmaceutical Machinery Equipment
Touch Screen Control Size 0 Capsule Filling Machine Pharmaceutical Machinery Equipment Product Description of Capsule Filling Machine SED-2500J-H Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules. Technical Parameters of Capsule Filling Equipment M odel SED-2500J-H Capacity
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-2500J-H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Touch Screen Control Size 0 Capsule Filling Machine Pharmaceutical Machinery Equipment
- Model
- SED-2500J-H
- Capacity(Capsules/h)
- 2500 capsules/min
- Machine weight(kg)
- 1300
- Power supply
- 380/220V 50Hz
- Total power(KW)
- 6.97
- Noise
- ≤75dB(A)
- Filling Variation
- ±3% - ±4%

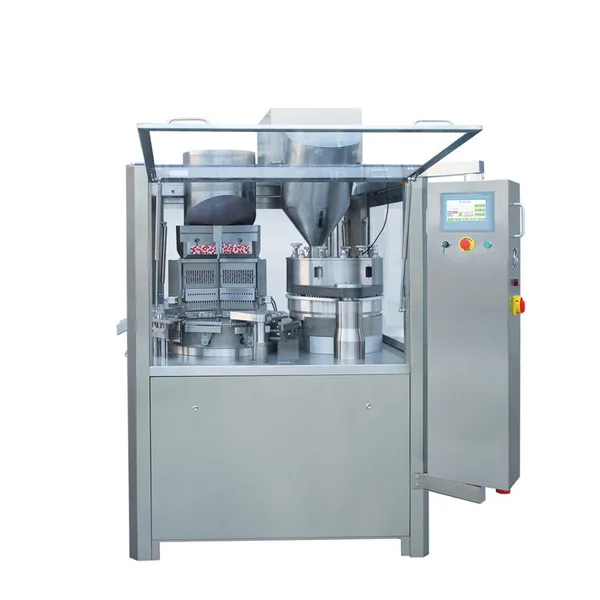

Touch Screen Control Size 0 Capsule Filling Machine Pharmaceutical Machinery Equipment
Product Description of Capsule Filling Machine
SED-2500J-H Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.
Technical Parameters of Capsule Filling Equipment
| Model | SED-2500J-H |
| Capacity | 2500 capsules/min |
| Filling Material | Powder, Granules |
| Die Hole Number | 18 |
| Power Supply | 380V 50Hz 3P |
| Total Power | 6.97KW |
| Application | 00#-4# capsule |
| Filling Variation | ±3% - ±4% |
| Noise | ≤75dB(A) |
| Qualified Rate | ≥99.5% |
| Overall Dimension | 1200mm (L) x 1050mm(W) x 2100mm(H) |
| Weight | 1300kg |
Features of Capsule Filler
1.The internal design of the mold turntable is improved, and the original Japanese linear bearing is used to ensure the accuracy and service life of the equipment.
2.The design of underslung cam and pressure atomizing oil pump reduces wear and prolong the service life of parts.
3.Adopt PLC control, stepless frequency conversion speed regulation, and touch screen display, ensuring convenient and intuitive operation.
4.Based on the lower plane of the dosage plate, three-dimensional adjustment and uniform gap, the filling accuracy can be effectively ensured, and it is very convenient for cleaning.
5.Equipped with a safety protection device for man and machine, and an automatic stop device for lack of material, so that the machine runs smoothly, safely and reliably.

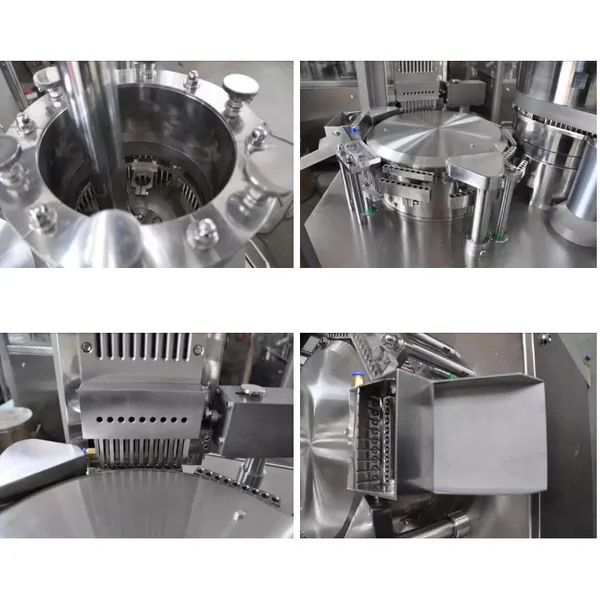

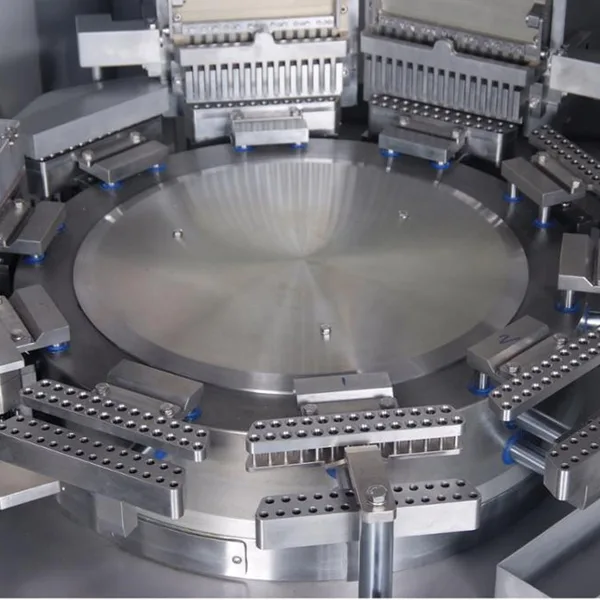

Details Show of Capsule Making Machine
Application of Capsule Encapsulation Machine
