Product Description of Capsule Filling Machine​

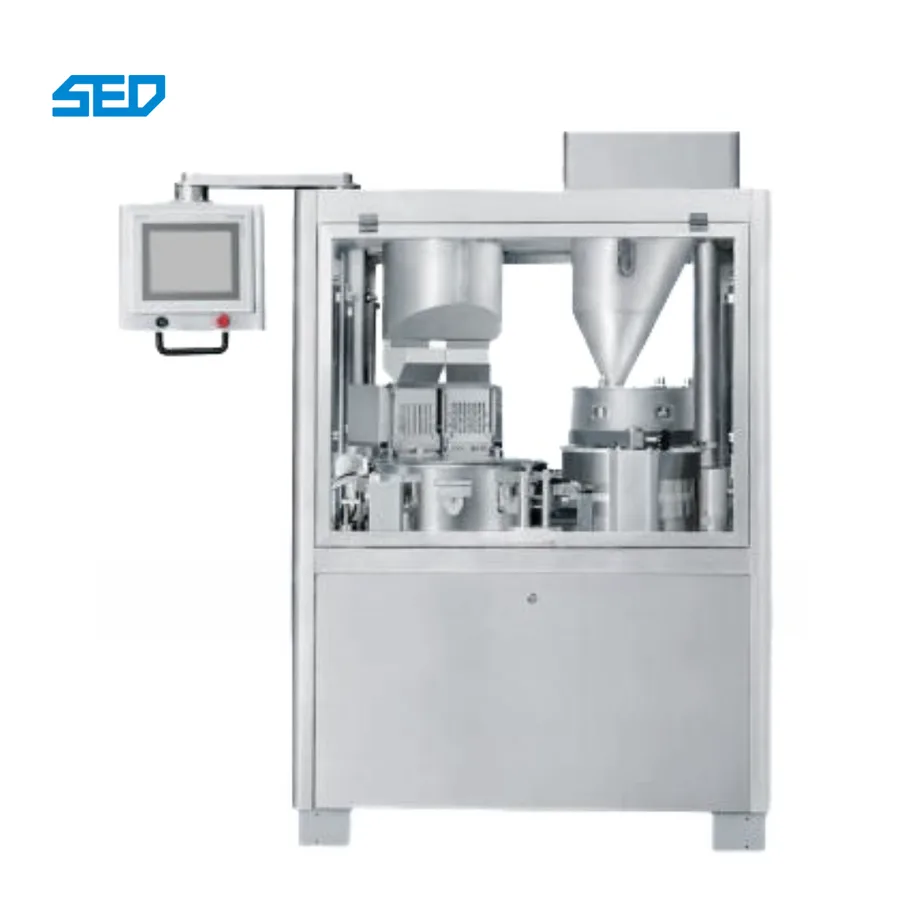

The SED-3500J-E is designed for filling powder or granules into hard capsules. It adopts intermittent motion and a multi-station tamping filling system, completing capsule orientation, separation, filling, sealing, and ejection automatically.

Technical Parameters

Model	SED-3500J-E
Net weight	1850kg
Overall Dimension	1310×1280×2000mm
Total power	7.5Kw
Power Supply	AC380V 50Hz 3P4W
Capacity	3500capsules/min
Application	00#-5# capsule
Qualified Rate	≥99％
Working Noise	≤78dBA
Filling precision	≤±3％


Characteristic
1.New indexer gearing structure ensures precise positioning, stable operation, and low wear rate.
2.Modular filling design with high precision, offering excellent reliability and long service life.
3.All product-contact parts are made of stainless steel; the fully enclosed structure prevents contamination and fully complies with GMP standards.
4.Suitable for gelatin capsules sizes 00 to 5, with a capsule acceptance rate exceeding 99%.
5.Capable of filling multiple components; optional dosing stations are available for pellets or granules.
6.Variable speed control with PLC system ensures safe, convenient, and stable operation.
7.New-generation design featuring 12 working stations and a fully enclosed, intermittent rotary table.
8.Independent unidirectional movement of the upper and lower modules ensures enhanced safety and operational stability.
9.Fully enclosed dosing system compresses powder five times before filling, ensuring high dosing accuracy.


Working Principle of Capsule Filling Machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:

1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the

capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.

2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it

enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.

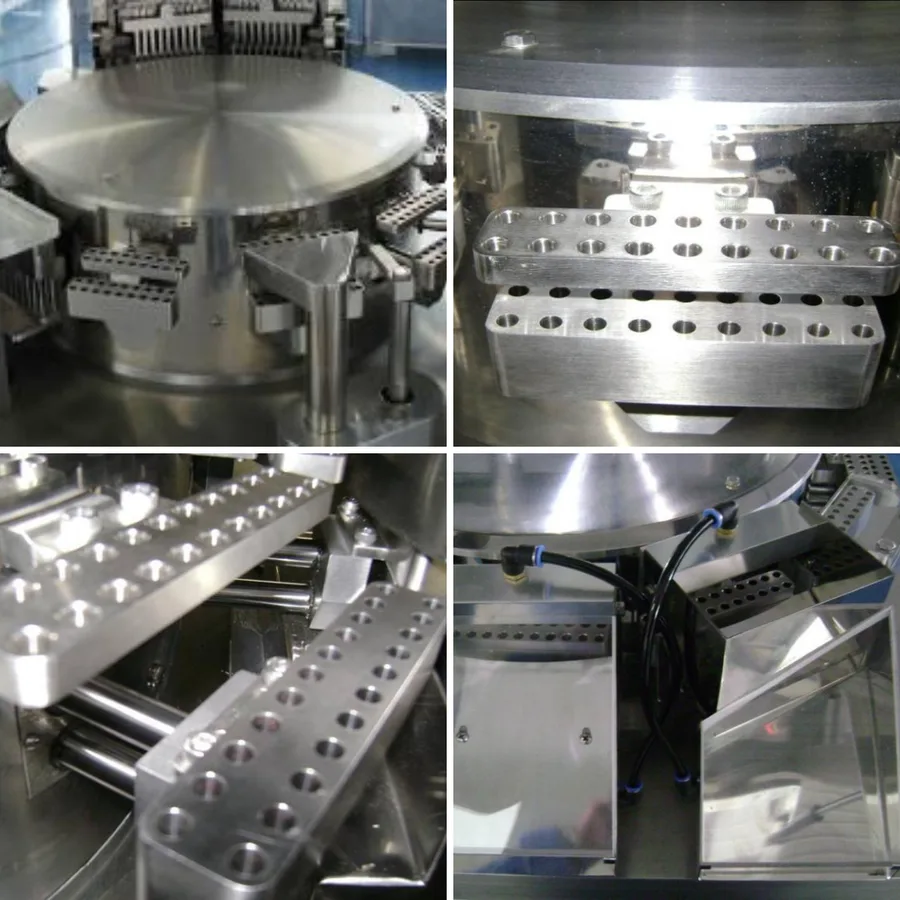

Product Show of Capsule Filling Machine​
