Capsule Filling Machine

GMP Standard 316 Stainless Steel Capsule Polishing Machine and Sorter with 200000 pieces/h Capacity

Name: GMP Standard 316 Stainless Steel Capsule Polishing Machine and Sorter with 200000 pieces/h Capacity
Brand: SED-Pharma

GMP Standard 316 Stainless Steel Capsule Polisher & Sorter The SED-JPG-2 Capsule Polishing Machine is a versatile, high-speed solution designed to elevate the quality standards of pharmaceutical and nutraceutical production. Engineered to remove excess dust and powder from the surface of capsules and tablets (including sugar-coated and plain varieties), this machine ensures a professional, high-gloss finish for every batch. Beyond polishing, the SED-JPG-2 features an integrated automatic rejection system. Utilizing advanced negative pressure technology, it identifies and re

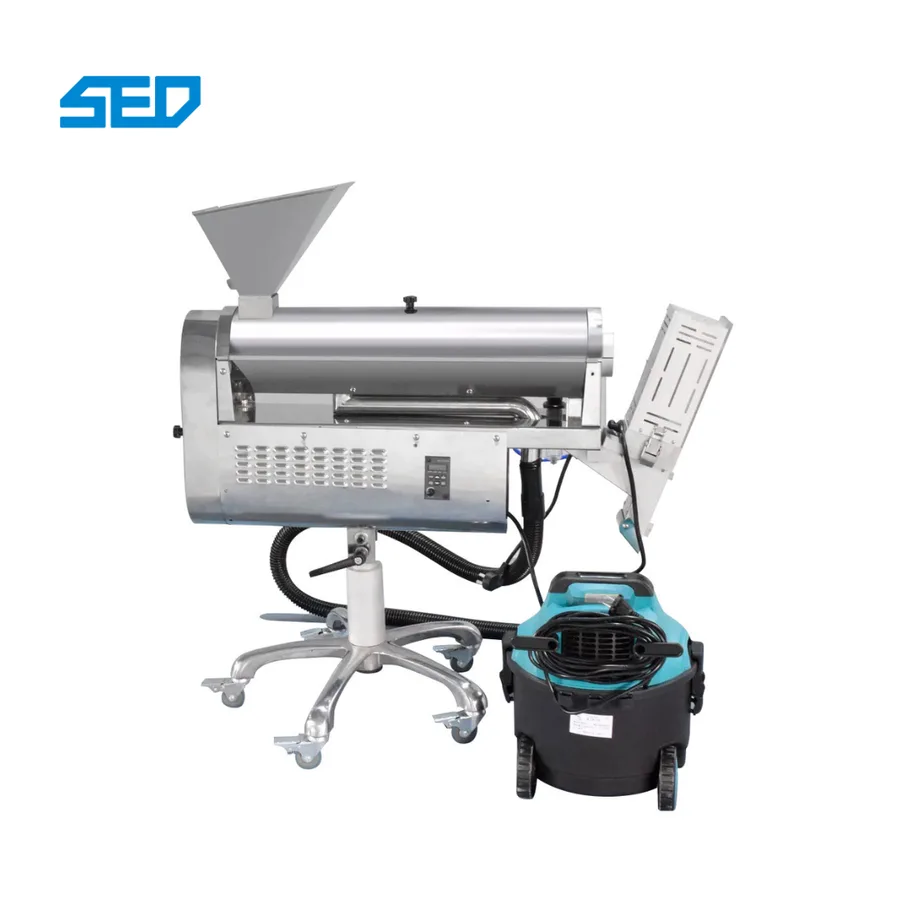

GMP Standard 316 Stainless Steel Capsule Polishing Machine and Sorter with 200000 pieces/h Capacity, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-JPG-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: GMP Standard 316 Stainless Steel Capsule Polisher & Sorter
Model: SED-JPG-2
Capacity: 200000 pieces/h
Power: 0.18KW
Weight: 42kg
Overall Dimension: 800 x 550 x 800mm

GMP Standard 316 Stainless Steel Capsule Polisher & Sorter

The SED-JPG-2 Capsule Polishing Machine is a versatile, high-speed solution designed to elevate the quality standards of pharmaceutical and nutraceutical production. Engineered to remove excess dust and powder from the surface of capsules and tablets (including sugar-coated and plain varieties), this machine ensures a professional, high-gloss finish for every batch.

Beyond polishing, the SED-JPG-2 features an integrated automatic rejection system. Utilizing advanced negative pressure technology, it identifies and removes underfilled capsules, empty shells, fragments, and separated components, ensuring only premium-quality products reach your packaging line.

Technical Specifications

Model	SED-JPG-2
Capacity	200,000 pieces/h
Power Supply	220V 50HZ 2A 1P
Power	0.18KW
Compressed Air	0.25m³/min 0.3Mpa
Negative Pressure	2.7m³/min -0.014Mpa
Weight	42kg
Overall Dimension	800 x 550 x 800mm

Key Features

Universal Compatibility: Process all capsule sizes without the need for expensive mold changes or downtime
GMP Standard Construction: All contact parts are crafted from 316 Stainless Steel, meeting strict international sanitary and safety regulations
Dual Functionality: Simultaneously polishes and sorts, saving floor space and reducing labor costs
Precision Sorting: Automatically rejects lightweight or damaged capsules using calibrated airflow and negative pressure
Clean Operation: A sealed polishing cylinder and vacuum integration ensure that brushed-off debris is contained and removed immediately

Working Principle

The SED-JPG-2 utilizes a rotating brush system to drive capsules in a circular spiral path along the polishing tube. As the capsules advance through the spiral spring, the constant friction between the brush and the tube wall buffs the shell to a high shine.

During this process:

Polishing: Dust is scrubbed off and pulled through small perforations in the cylinder wall into a vacuum system
Sorting: Lightweight, unqualified capsules (underfilled or empty) are lifted by negative pressure and diverted into a waste collector
Discharge: Heavy, qualified capsules continue their descent through the movable hopper for the next stage of production
