Capsule Filling Machine
Small Volume Capsule Filling Machine
Small Volume Capsule Filling Machine Product description of Capsule Filling Machine It adopts hole plug type filling, batch-type running and frequency control. It is suitable for the whole capsule filling process: capsule feeding, separating, filling(waste capsule rejecting),closing, perfect capsule outputting, for powder and micro pill capsule. Latest structure: The closed ten position rotating table, high precision, low noise and best suitable for domestic machine-made capsule, and soon the key parts of the bearing and electrical equipment adopts international famous
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-400J-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Small Volume Capsule Filling Machine
- Model
- SED-400J-A
- Output
- 24,000pc/h
- Machine Dimension
- 800*970*1870mm
- Motor Supply
- 380V 50Hz 3P
- Power
- 3.75kw
- Number of holes
- 3
- Filling error
- ±3%-±4%

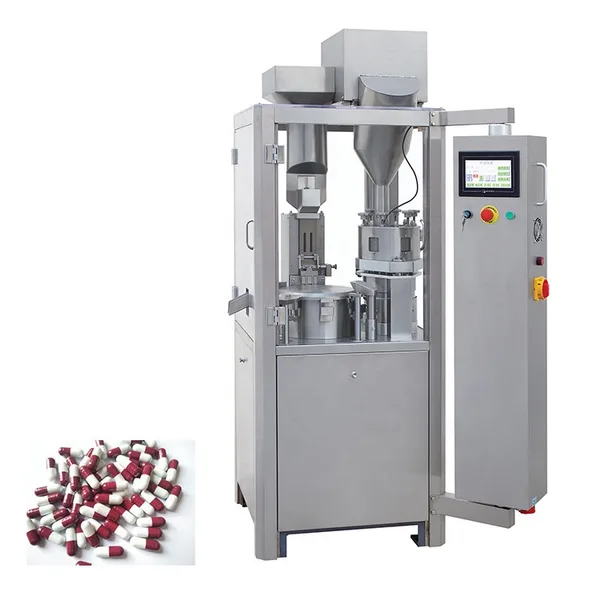

Small Volume Capsule Filling Machine
Product description of Capsule Filling Machine
It adopts hole plug type filling, batch-type running and frequency control. It is suitable for the whole capsule filling process: capsule feeding, separating, filling(waste capsule rejecting),closing, perfect capsule outputting, for powder and micro pill capsule.

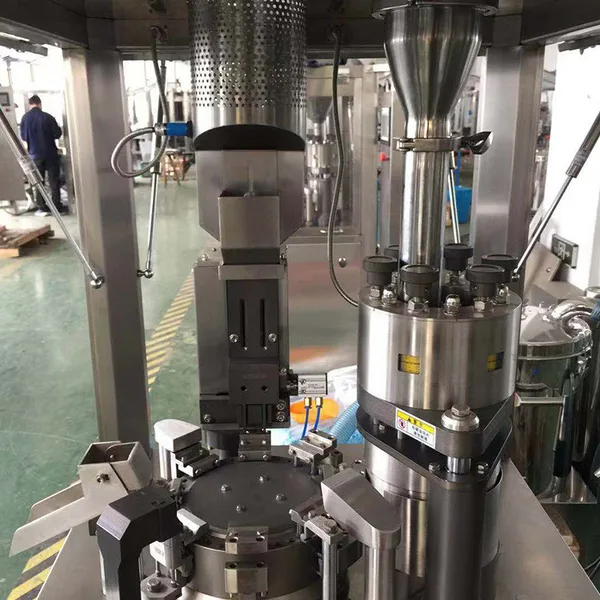

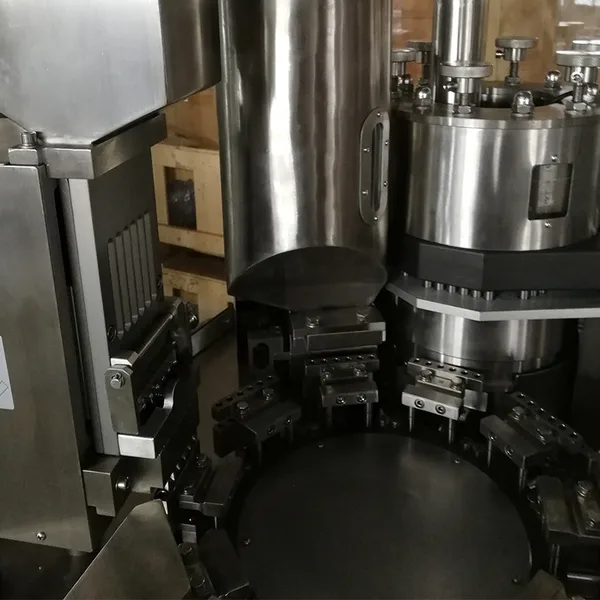

Latest structure: The closed ten position rotating table, high precision, low noise and best suitable for domestic machine-made capsule, and soon the key parts of the bearing and electrical equipment adopts international famous brand, performance stability and can be run at a high speed.
Main Parameter of Capsule Filling Machine
| Model | SED-400J-A |
| Output(pcs/min) | 400 |
| NO of Filling hole | 3 |
| Capsule filling hole | 00#-4# |
| Power | 3.75kw |
| Weight(kg) | 600kg |
| Dimension(mm) | 800*970*1870mm |
Features of Capsule Filling Machine
1.Small volume, low energy consumption, fast mold change, convenient.
2.The turning-around parts are in full closure, having excellent lubricating conditions. No oil dirt on the working bench, avoid the cross pollution with the medicine.
3.Shelter are fixed around the dose pan, which can recycle the powder, reduce the dust on working bench.
4.Adopt the man-machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsules lacking, and automatically stop for lacking of medicine powder, breakdown diagnosing display.
Application of Capsule Filling Machine
