Automatic Cartoning Machine

Tissue Carton Fast Speed Automatic Cartoning Machine Packaging Line Low Noise

Name: Tissue Carton Fast Speed Automatic Cartoning Machine Packaging Line Low Noise
Brand: SED-Pharma

The speed of SED-320WZH-A model blister cartoner machine is up to 300 cartons/min. It is widely used in pharmaceutical companies which need larger production capacity and one machine better used for few size of cartons. The machine adopt with two automatic blister feeding device which is controlled by servo motor. The leaflet folding device is optional, the design is similar with GUK device which can fold the leaflet stably or we can adopt the GUK leaflet folding device. The machine has the function of printing the batch number, and the inkjet printer is optional. The carto

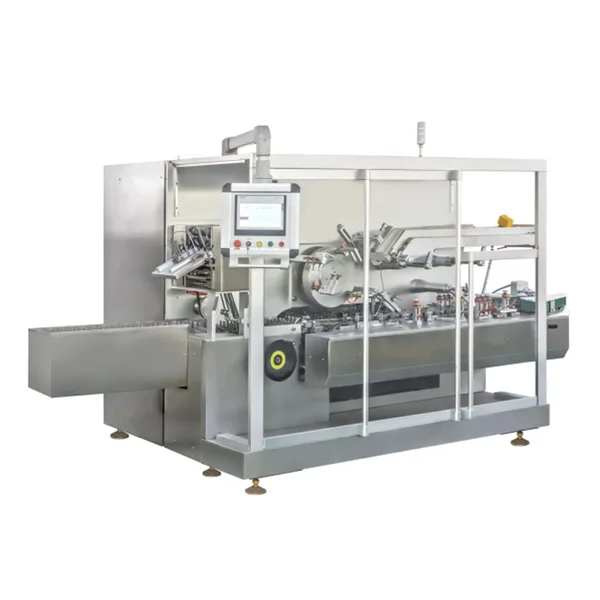

Tissue Carton Fast Speed Automatic Cartoning Machine Packaging Line Low Noise, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-320WZH-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Tissue Carton Fast Speed Automatic Cartoning Machine Packaging Line Low Noise
Encasing Speed: 320 box/min
Working pressure: >=0.6mpa
Air consumption: 20m3/h
Power supply: 380V 50Hz
Machine dimension (L×w×H): 4800mm×1600mm×1860mm
material: stainless steel
key word: Automatic Cartoning Machine

The cartoner machine includes the parts as: automatic blister feeding device, product inspection, unqualified product rejection, box sucking and shaping, product pushing by the pushing rod, leaflet folding system, box closing or hot glue sealing, batch No printing, unqualified final product rejection system.

Features:

1.The machine adopts servo motors, and the machine is the continuous type.

2.The carton hopper can put thousands of cartons.

3.There are so many rulers on the spare parts, it will make change carton size more easlier.

4.When the carton lacks of leaflet or blister, the machine will reject the carton automatically. If no blister, the machine will not feed the carton or leaflet.

5.The machine adopt with the touch screen in Siemens brand; the language can be English, Russia or Spanish;

6.If the blister come into the carton in incorrect position, the machine will be stopped automatically without pressing the emergency button;

7.The machine will be adopt with joystick for remote control of the machine, in this way, it will more convenient for the worker when change the carton size;

8.Automatically display trouble, Alarm and count finished products.

9.Low Maintenance – easy access to all components provides for easy maintenance

10.Optional: Inkjet printer, hot melt glue machine, bar code reader

Main Technical Parameters

Encasing speed		320 boxes /min
Box	Quality requirement	250-350g/㎡【Base on carton size】
	Dimension range(L×W×H)	(70-180)mm×(35-80)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/㎡
	Unfolded leaflet specification	(80-250)mm×(90-170)mm
	Fold range	【1-4】Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	160-200L/min
Power supply		380V 50HZ
Main motor power		5kw
Machine dimension(L×W×H)		4800mm×1600mm×1860mm
Machine weight		3000kg
