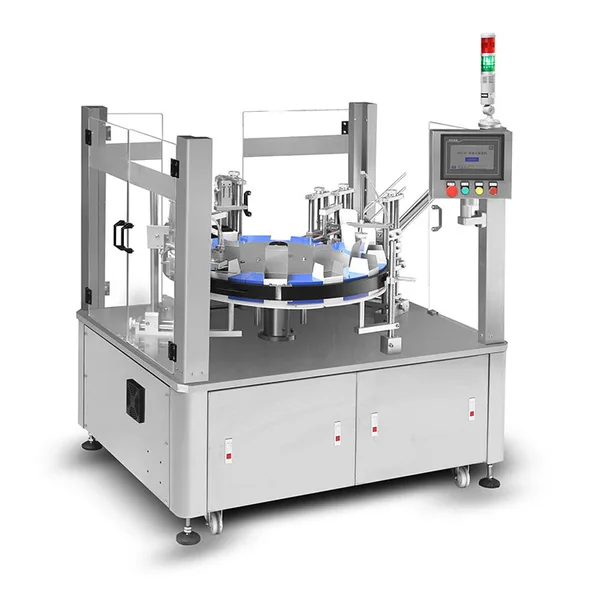

Semi Auto Cartoning Machine With PLC Control System



Semi Auto Cartoning Machine With PLC Control System

Machine Parameters of Cartoning Machine​​



Production speed:	20-50 box per min
Paper box's largest size	200 x 80x 80mm (can be customized)
Paper box's smallest size	60 x 20 x 20 mm (Can be customized)
Paper quality of carton	250-350g/m3
Motor horsepower	1.5KW/H
Power supply	220V 50/60HZ single phase
Machine noise	≤80dB
Gas source	0.5-0.8 Mpa
Compress air consumption	260L/min
Machine measurement:	L 1100 x W 1500 x H 1700 mm
Machine weight	450Kg



Product Description of Automatic Cartoning Machine

Cartoning machine is a kind of packaging machinery, including automatic cartoning machine, medical cartoning machine, etc. The automatic cartoning machine automatically loads the medicine bottles, medicine plates, ointment, etc. and the instructions into the folding paper box, and completes the action of covering the box.
It can be connected with other production lines such as blister packaging machine, four side sealing packaging machine, pillow type packaging machine, filling machine, soap making machine, inkjet printer, labeling machine, three-dimensional film wrapping machine, strapping machine, etc.




Feature of box packing machine​

(1) It is specially design to pack small quantities multi size box.

(2) With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

(3) 304 stainless steel case

(4) Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel, can easily set and change the packing parameters.
