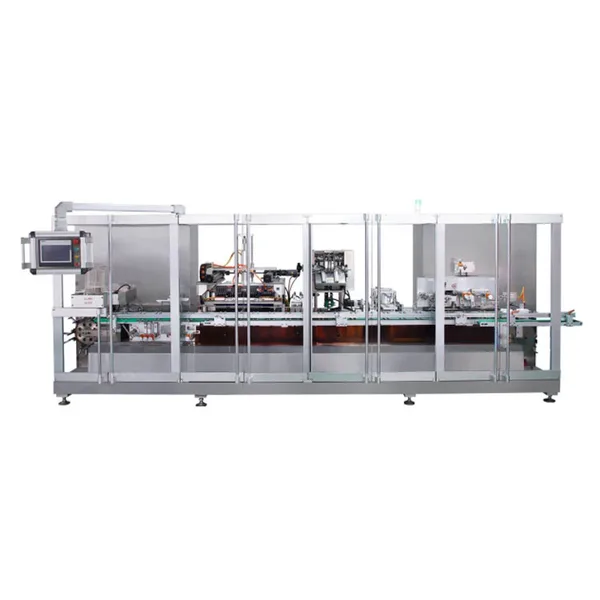

Intelligence Food Automatic Cartoning Machine



Intelligence Food Automatic Cartoning Machine

Product Description of Cartoner Machine

This machine is suitable for automatic feeding bottle (round,aquare bottle)into carton (either for blister or bottle). On line bottle unscranble and feeding , leaflet fold(1-4folds)and feeding, carton opening and forming ,products and leaflet pushing into carton , printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.



Product Parameters of Cartoner Machine​

Item		SED-40LZH-J
Encasing speed		40 boxes /min
Box	Quality requirement	250-350g/m2[Base on carton size]
	Dimension range(L×W×H)	(50-130)mm×(30-100)mm×(50-140)mm
Leaflet	Unfolded leaflet specification	(120-260)*(100-190)mm
	Fold range	(1-4)fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		380v 50HZ
Main motor power		2kw
Machine dimension(L×W×H)		4600mm×930mm×1700mm
Machine weight		1500kg



Characteristic of Cartoner Machine



1.International famous brand of electrical component such as PLC touch screen, frequency inverter, etc.

2.Adopt human-machine operation system.

3.Automatically stop when machine is overload.

4.Automatically reject lacking of package product and leaflet.

5.Automatically display trouble,Alarm and count finished products.

6.Stable performance,operation is easy.
