Automatic Labeling Machine
Tin Can Automatic Labeling Machine For Universal Round Bottle Labeling
Tin Can Automatic Labeling Machine For Universal Round Bottle Labeling Product Parameters of Labeling Machine product name tin can labelling machine applicable product Cylindrical surface Apply the label self-adhesive label Applicable product diameter 10-180mm Applicable label width 10-100mm Label speed 0-200pcs/min Labeling accuracy ±1mm Total Weight 168kg Overall Dimension 2000X1050X1560mm power source 220V/VA rate of work 950W The Scope of Application: The labeling machine is specialized in round bottles. When labeling, the bottle will automatically rotate to al
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-PT |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Tin Can Automatic Labeling Machine For Universal Round Bottle Labeling
- product name
- tin can labelling machine
- Apply the label
- self-adhesive label
- Applicable label width
- 10-100mm
- Label speed
- 0-200pcs/min
- Labeling accuracy
- ±1mm
- material
- stainless steel
- key word
- Automatic Labeling Machine
Tin Can Automatic Labeling Machine For Universal Round Bottle Labeling
Product Parameters of Labeling Machine
| product name | tin can labelling machine |
| applicable product | Cylindrical surface |
| Apply the label | self-adhesive label |
| Applicable product diameter | 10-180mm |
| Applicable label width | 10-100mm |
| Label speed | 0-200pcs/min |
| Labeling accuracy | ±1mm |
| Total Weight | 168kg |
| Overall Dimension | 2000X1050X1560mm |
| power source | 220V/VA |
| rate of work | 950W |
The Scope of Application:
The labeling machine is specialized in round bottles. When labeling, the bottle will automatically rotate to allow the labeling device to apply the pressure for labeling. It's suitable for medicine, food, beverage and chemical industries.
It can be used for plastic, glass, metal and other round containers/ bottles. Replacements of a few parts, it also can be used for square bottles.
Equipment function characteristics of Labeling Machine
1. Simple and compact in design.
2. with PLC control System with Feather touch Keyboard and LCD display.
3. Can store up to 16 different programs for setting of different type of bottles.
4. Label release and fixing mechanism to release the label.
5. with Sunx motor or Servo motor drive as per requirement
6. On Line Batch coding (Optional)
7. As the use of optical control devices, power protection devices and other advanced systems of Sunx & Autonics company's, which with a start buffer function, the overall high sensitivity, low-speed torque, speed and stability, voltage stability, the strong ability of anti-interference and strong technical characteristics. Ensure labeling accuracy, stable, reliable and efficient.

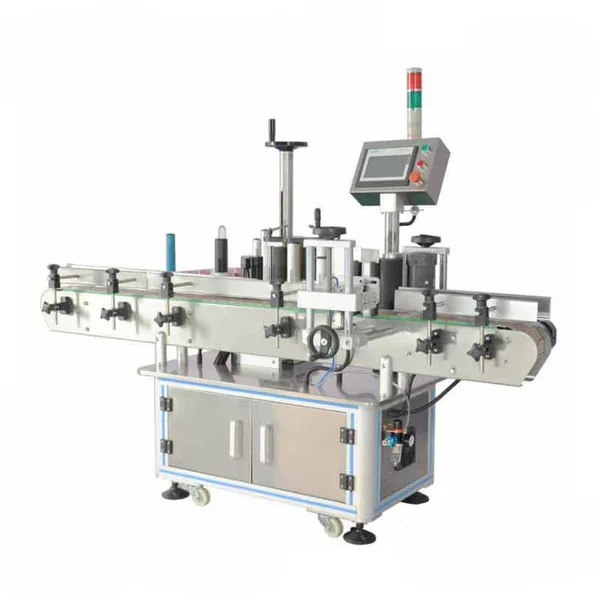

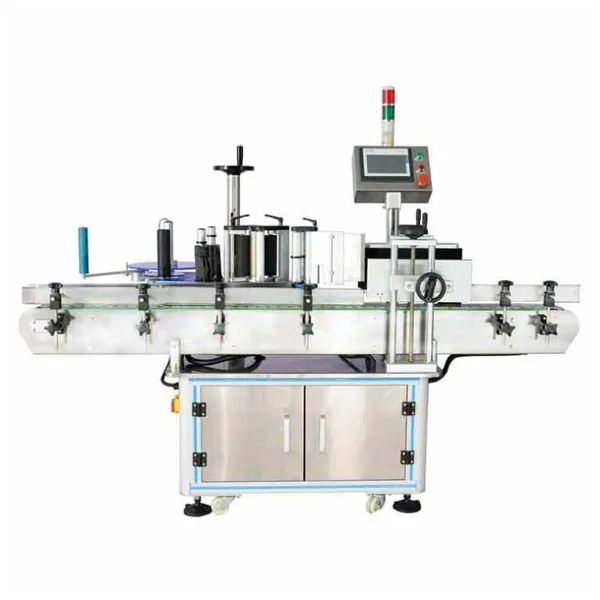

Products Show of Labeling Machine
Application of Labeling Machine
