Stainless Steel Horizontal Automatic Labeling Machine 0-180 Bottle / Min

Stainless Steel Horizontal Automatic Labeling Machine 0-180 Bottle/min



The Scope of Application:

Applicable for round objects with smaller diameter whihc can not stand when labeling,such as ampoule ,vials,blood collection tube, pen,sausage and so on.
(P.S. our labeling machine can be designed according to your needs)



Machine Parameters of Labeling Machine

Model	SED-180WT-E
Labeling speed	0-180bottle/min
Labeling	±0.5mm
Applicable label	H: 15-90mm L:35-90mm
Applicable bottle	H:35-90mm Dia:10-30mm
Weight(kg)	1000kg
Dimension (L × W × H)	1000*1300*1900mm



Characteristics of Labeling Machine

Adopt mature technology PLC control system,operation is stable and high-speed;


Using touch-screen control operating system, simple and efficient for operation;


Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;


Transmission-type rolling bottle device, make sure the label attached more firmly;


The damaged rate of bottle is less than 1/200000;



Advantages of Labeling Machine​

Imported electric elements, stable performance, low failure rate;

Adopt photoelectric detection, PLC control system, software operation, conveyor belt,

label accurately with high precision;

No bottle no label, automatic alarm when achieve leakage label.

The whole machine use material S304 stainless steel and anodized senior aluminum alloy.

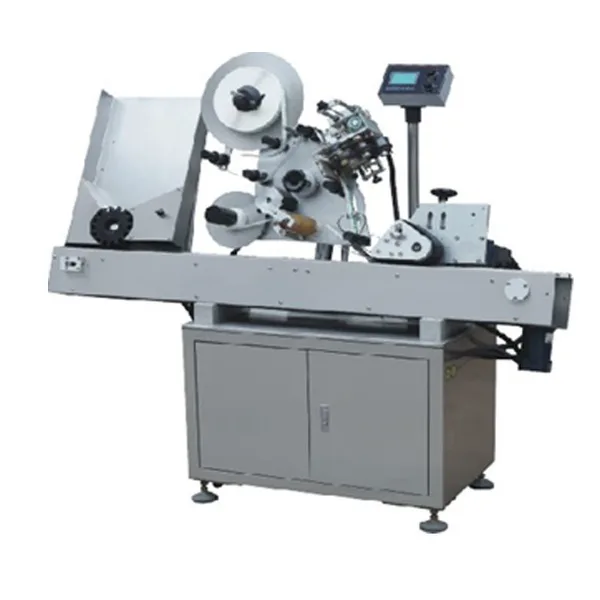

Products Show of Labeling Machine
