Stainless Steel Powder Granulator Machine Pharmacy Food Chemical Industry Usage

Stainless Steel Powder Granulator Machine Pharmacy Food Chemical Industry Usage



Product Parameters of Powder Granulator Machine

Volume	50L
Output	15kgs/batch
Mixing Speed	260/400rpm
Mixing power	4/5.5kw
Cutting Speed	1500/3000rpm
Cutting power	1.3/1.8kw



Working Principle of Powder Granulator Machine



In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smash paddles



Purpose  of Powder Granulator Machine



The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.



Feature and simple introduce of Powder Granulator Machine

• It is the structure of horizontal cylinder (cone).
• Full sealed driving shaft, to use water when cleaning.
• Fluidization granulation, the finished granules are similar to roundness with good liquidity.
• Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
• Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
• All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
• Whole operation has the strict safety precautions.

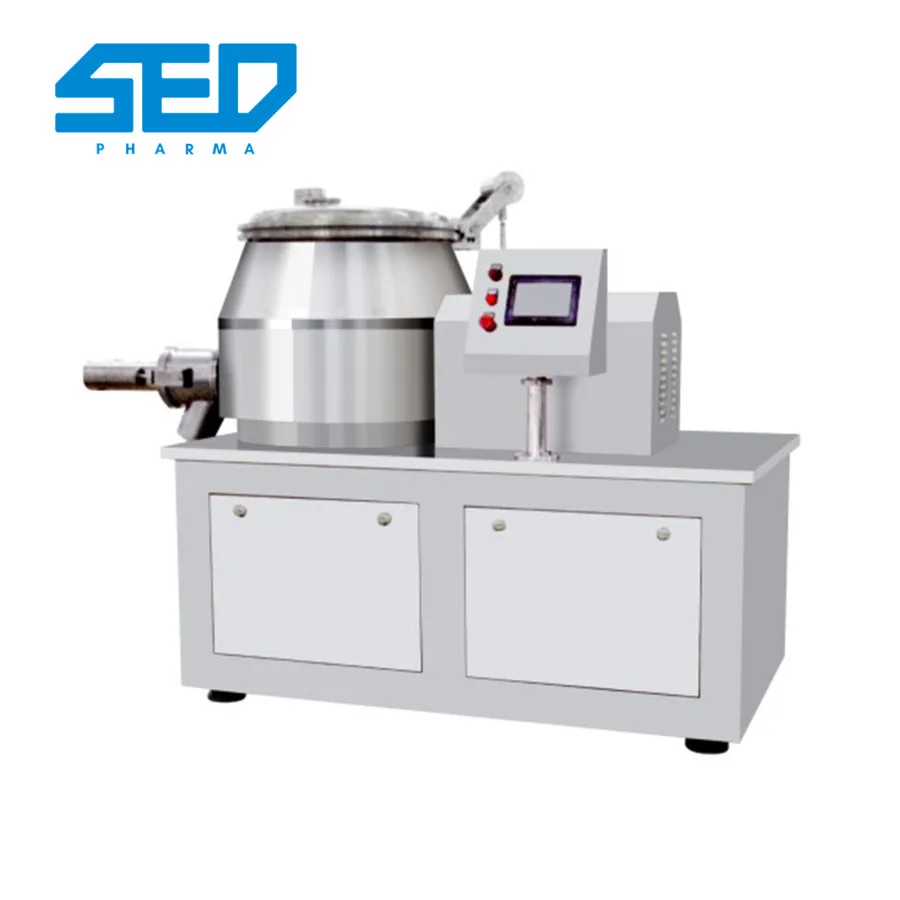

Products Show of Powder Granulator Machine​



Application of Powder Granulator Machine

Pharmaceutical industry: tablets, capsules, low-sugar or sugar-free Chinese medicine granules.
Food: cocoa, coffee, milk powder, granular juice, flavoring agent, etc.
Other industries: pesticides, feed fertilizers, pigments, dyes, etc.
Pharmaceutical industry: powdery or granular materials.
