Capsule Filling Machine
Stainless Steel High Production Automatic Empty Powder Capsule Filling Machine
Product Description of Capsule filling machine The machine is an intermittent motion and the hole-plate type filling fully automatic capsule filling equipment. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc. It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-3800J |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- After-sales service provided
- Engineers available to service machinery overseas,Video technical support,Online support
- Condition
- New
- Dimension(l*w*h)
- 1395×1180×2200mm
- Type
- Filling Machine
- Application
- Medical,Food,Chemical,Beverage,Commodity
- material
- stainless steel
- key word
- Powder Capsule Filling Machine Automatic Capsule Filling Machine
Product Description of Capsule filling machine
The machine is an intermittent motion and the hole-plate type filling fully automatic capsule filling equipment. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc.
It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc.
Product Parameters of Capsule filling machine
| Equipment Model and Specification |
SED-3200J |
SED-3800J |
|
| Technical Parameter | Machine weight | 2400kg | |
| Overall dimension | 1390 × 1300 × (2080+210) mm | ||
| Motor power | 6.37kw + 3kw (Dust Collector) | ||
| Power supply | 3 phase, AC 380V, 50Hz | ||
| Max. Output | 192000 capsules/h | 228000 capsules/h | |
| Capsule size | 00#~5# and safety capsule A~E | ||
| Capsule using rate | ≥ 99.5% | ||
| Noise index | ≤ 78dBA | ||
| Dosage difference | ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation) | ||
| compressed air (for cleaning station) |
air consumption 0.09m3/min pressure 0.3MPa | ||
| Water supply | Water cycle pump compound water tank, or meet water source | ||
| Vacuum degree | -0.02~-0.06 MPa | ||
| Water volume | 250L/hour | ||
| Enter pipe inner-diameter | 20mm | ||
| Waterspout inner-diameter | 40mm | ||
| Working temperature | 21ºC ± 3ºC | ||
| Working relative humidity | 40~55% | ||
| Exhaust capacity | 300m3/h | ||
| Special function | Granule and powder mixed filing; Powder collector | ||
| Control system | Stepless frequency conversion control, PLC control, with touch screen | ||
| Material | Spare part contact with medicine adopt superior S.S 304 & GMP compliable material | ||
| Criterion | Comply to GMP completely | ||
Feature of Capsule filling machine
1. The filling seat and the metering disc are integrated, so that the metering disc and the filling rod will not be offset, avoiding the friction between the filling rod and the metering disc, improving the filling accuracy and prolonging the service life;
2. The automatic capsule filling machine has beautiful appearance, fine craftsmanship, simple operation and convenient use;
3. The vacuuming, vacuuming habits and exhaust pipe are designed inside the body to avoid the phenomenon of hardening, breaking and air leakage of the trachea, which is convenient for the work surface to be clear and meets the requirements of GMP;
4. The fully automatic capsule filling function can automatically remove defective capsules, recover the drugs in defective capsules, reuse them, and improve economic benefits;
5. The automatic capsule filling machine is simple and convenient to disassemble and clean, and can exchange various types of molds, and various molds can be exchanged on the same machine to meet the requirements of different production capacities;
6. The filling rod nut is made of stainless steel instead of the original plastic nut to avoid cracking; the working table has fewer screws and nuts, which is easy to clean and makes the whole machine more beautiful.

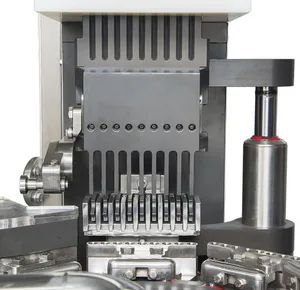

Product Show of Capsule filling machine
Application of Capsule filling machine
The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.
