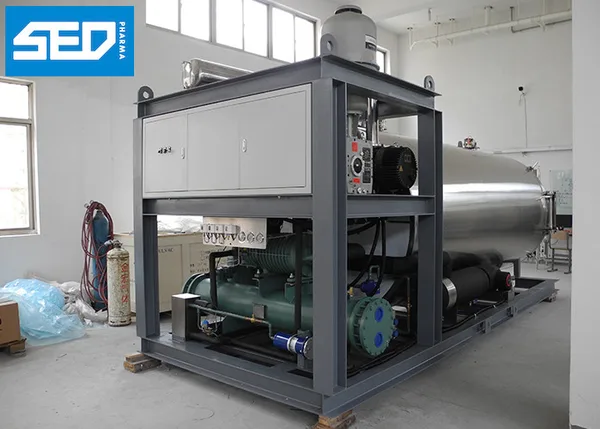

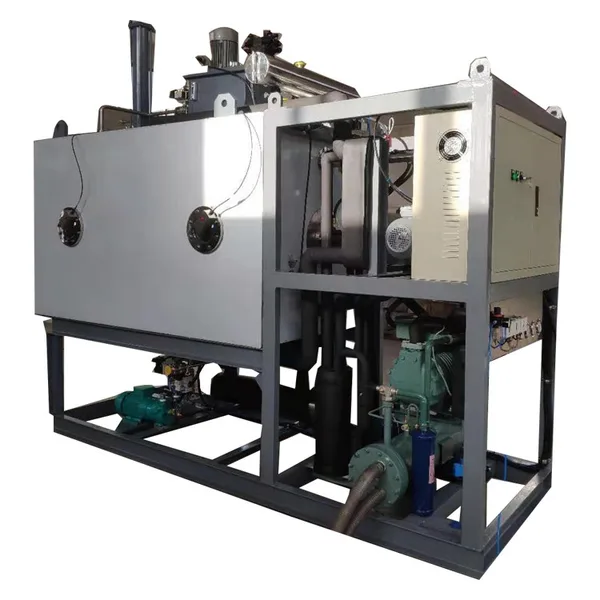

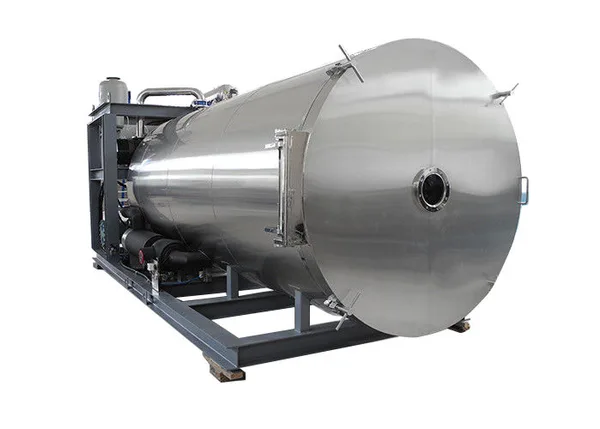

Stainless Steel 304 Multi Functional Vacuum Freeze Drying Machine Low Energy Consumption Type



Stainless Steel 304 Multi Functional Vacuum Freeze Drying Machine Low Energy Consumption Type

Feature of Freeze Dry Machine​
1. Shelf has high strength and can withstand long-term use.
2. Shelf through a dedicated machining, can guarantee high demand flatness
3. Plate layers with constant temperature function, can realize the automatic operation of the freeze drying process
4. Screw compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain
5. Temperature and pressure of compressor has multiple protection features
6. Suction filter settings, prevent degeneration of stolen goods and acid materials into the compressor chamber, corrosion internal parts and refrigeration oil.

Product Parameters of Freeze Dry Machine

SED-37DG Vacuum Freeze Dryer
	Product structure			Technical parameters		Remarks
Standard: GMP
※ Public distribution
	Power (three-phase and five-wire system)			380V/50HZ
	Power consumption			140kw
	Cooling water qty			≥35m3/h(T≤25℃,P=0.2-0.3Mpa)
	Whole volume			φ1750×4600m+2500×1200m+1200×1200m		(According to design standard)
	Structure			Together
	Total weight			5000kg		(According to design standard)
※ Drying body
	Performance parameters
				Design and manufacturing standards		Vacuum vessel design standards
				Chamber design pressure		-0.1Mpa
				Chamber design temperature		90℃
				Chamber Vacuum leak rate		25×10-3 Pa.m3/sec
	main components
	Chamber material			SUS304/δ5mm
	Geometry Box			Horizontal barrel type
	Lock method			Rotate and locking type by handle
	Direction of opening door			open right (the user can choose)
	Opening angle			>110°
	Door materials			SUS304
	Box external decoration			SUS304 SUS304
	The roughness of chamber and door			Ra≤0.4μm
	Insulation material			Rubber insulation board/δ100mm
	Door observation window			Φ200mm observation window at central portal		One piece
	Observation window box			Φ200mm the side of the observation window with a lamp		One piece
	Door sealing			O type sealing		1 pair
	Technical Features
	1	Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements
	2	3D design, consistent with CGMP requirements of complete sterilization.
	3	Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage
	4	Germany imported automatic welding machine is the best guarantee for the quality of the products you

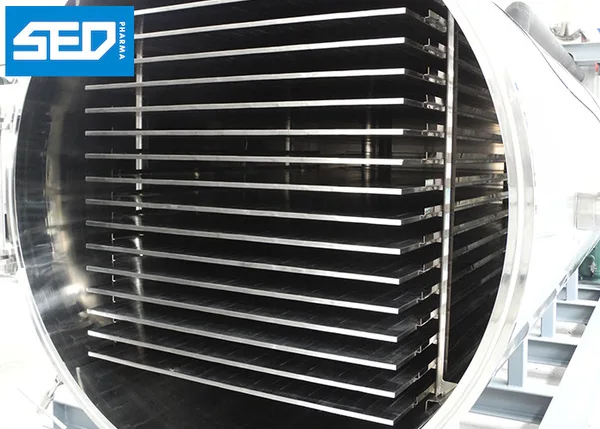

※ Shelf
	Performance parameters
				Total usable area of shelves		37M2
				Maximum water fishing		≥200Kg
				Minimum temperature of lamellar		≤-50℃
				Maximum temperature of lamellar		+100℃
	Main components
	Lamellar material			SUS304/δ15mm
	Surface roughness			Ra≤0.8μm
	The number of board layers			16+1 (Compensation Board)
	Shelf spacing			75mm
	Shelf dimensions			1200 mm×1930mm		seamless combination with rectangular tube
	Bottle / disk protection			Shelf with anti bottles / tray fall protection rack
	Product temperature probe			Import thermocouple (Origin: United		4 pieces
	Technical Features
	1		Shelf has high strength and can withstand long-term use;
	2		Shelf through a dedicated machining, can guarantee high demand flatness;
	3		Plate layers with constant temperature function, can realize the automatic operation of the freeze drying process.
※ Condenser
	Performance parameters
				Design Standard		Vacuum vessel design standards
				Cabinet design pressure		-0.1Mpa
				Tank design temperature		90℃
				Min temperature of condenser		≤-55℃±3℃
	Main components
	Condenser shape			Horizontal drum type / Hermaphroditic and drying box		Return patency
	Condenser material			SUS304/δ6mm
	The condenser form			Snake-type coil
	Condenser position			Back
	The inner surface roughness			Ra≤0.4μm
	Defrosting Mode			Hot water spray and immersion
	Temperature probe			Import thermo couple (Origin: United		1 piece
	Insulation material			Rubber insulation board/δ100mm
	Observation window			Φ200mm the side of the observation window with a lamp		1 piece
	Eternal decoration of box			SUS304
	Technical Features
	1		Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements
	2		Argon welding, forming an internal and external, to ensure pipes cleanly and without leak
	3		The inside wall of the cold trap is cleaned by special way to ensure no dirt, ensure the system clean
	Performance parameters
				Lamellar cooling rate (no load)		20℃→-40℃≤90min
				Condenser cooling rate (no load)		20℃→-40℃≤45min
	Main components
	compressor model/quantity			BITZER two stage S6F-30.2Y	1set
	Refrigerant			R22
	KWPower			69Kw
	Oil separator			/OVS.40/3	1 piece
	High pressure protection device			Made in China	2piece
	Refrigerant endoscopic			Made in China	1 piece
	High /Low pressure gauges			DANFOSS (Danish Danfoss)	4 pieces
	media filter (detachable)			Shell: China production: core America: EMERSON	one set
	Expansion valve (dry box)			DANFOSS (Danish Danfoss)	1 piece
	Expansion valve (CONDENSER)			DANFOSS (Danish Danfoss)	1 piece
	Expansion valve (cold)			DANFOSS (Danish Danfoss)	1 piece
	Solenoid valve (dry box / condenser conversion)			DANFOSS (Danish Danfoss)	2 piece
	Solenoid valve (shelf series cold)			DANFOSS (Danish Danfoss)	1 piece
	Solenoid valve (cold)			DANFOSS (Danish Danfoss)	1 piece
	water pressure protection controller			DANFOSS (Danish Danfoss)	1 piece



Show of Freeze Dry Machine



Application of Freeze Dry Machine

♦ Vegetables: edible mushrooms, garlic slices, green onions, green beans, peas, cucumbers, sweet corn kernels, carrots, spinach, asparagus, wild vegetables, etc.



♦ Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, lamb, etc.



♦ Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.



♦ Instant drinks: coffee, tea, soup, soy milk, milk, etc.



♦ Convenience food: children's food, snack food, military food



♦ Fresh Chinese herbal medicine: ginseng, velvet antler, wolfberry, Panax notoginseng, etc.
