SED-250DG Silver Horizontal Fruit Vacuum Freeze Dry Machine Custom Made Power 380V/50HZ,3Phase,5Wire




SED-250DG Silver Horizontal Fruit Vacuum Freeze Dry Machine Custom Made Power 380V/50HZ,3Phase,5Wire



Product Description of Freeze Dryer​

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.



Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid solid gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge".



The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will no longer change until the "solid bridge" completely disappear.



Product Parameters of Freeze Dryer

Power	415V/50HZ,3Phase,5Wire
Power consumption	127Kw/300A
Cooling water qty	≥56m3/h(T≤30℃/P=0.1-0.15Mpa)
Compressed air	≥0.45 m3/min(P=0.5-0.8Mpa)
Structure	Integral(Rectangular box dry +Mushroom valve+Rectangular cold trap)
Compressed air	≥0.45 m3/min(P=0.5-0.8Mpa)
Chamber design pressure	-0.1 mbar
Chamber design temperature	120℃
Chamber Vacuum leak rate	0.005 Pa.m3/sec
Total usable area of shelves	110.16 ㎡
Defrost water	≥8T (Temperature 50-60℃,pressure 0.1MPa)
Shelf rate (no load)	Shelf heating rate (no load) ≥3℃/min Shelf cooling rate(no load) ≥3℃/min
number of board layers	Symmetrical hanging (17 +17 blocks)
Shelf spacing	77mm
Shelf dimensions	540mm*6000mm*18/block
Machine size (L×W×H)	12000*2520*3500 Final dimension based on design
Total weight	14000kg(Approx.)
Model Num.	SED-100DG



Feature of Freeze Dryer​

1. Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements

2. 3D design, consistent with CGMP requirements of complete sterilization.

3. Special section of the door seal to avoid water retention in the CIP / SIP process



4. Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage



5. Liquid level sensing probe and preventing intrusion device are installed on outfall water



6. Mushroom valve ball surface is smooth and easy to clean;



7. Mushroom valve can be adjusted through the valve closed, to prevent excessive pressure



8. Mushroom valve in the "open" or "off" with the feedback signal, can understand the working state real



9. Plate flange of mushroom valve processed two times with high sealing performance and accuracy, can completely prevent leakage .

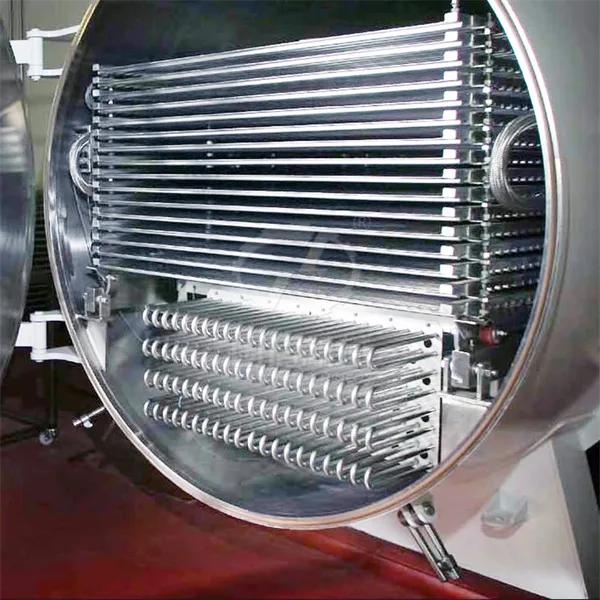

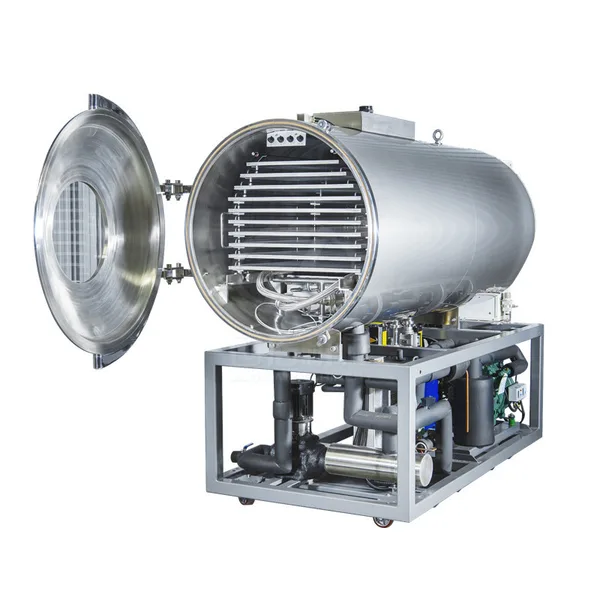

Show of Freeze Dryer



Application of Freeze Dryer
