Freeze Dry Machine

Fruit And Vegetable Food Vacuum Freeze Dry Machine

Name: Fruit And Vegetable Food Vacuum Freeze Dry Machine
Brand: SED Pharma

Main technical parameters Drying chamber Item SED-1XDG-O Freeze-drying area 1㎡ Layers of shelf 6+1 Temperature scope of shelf -50℃-+70℃(no-load) Shelf temperature error ±1℃(in balance) Shelf spacing 70mm Size of shelf 365mm*485mm Condenser Min.Temperature of condenser ≤-75℃(no-load) Water-capture capability ＞20Kg Liquid material 15L Defrosting Electric defrosting Final vacuum degree ≤5Pa Style of cooling Fan cooling Main functions Manual+Auto Control Mode,Sensor calibration,Intelligent temperature control,Freeze drying termination reminding and other functions are available

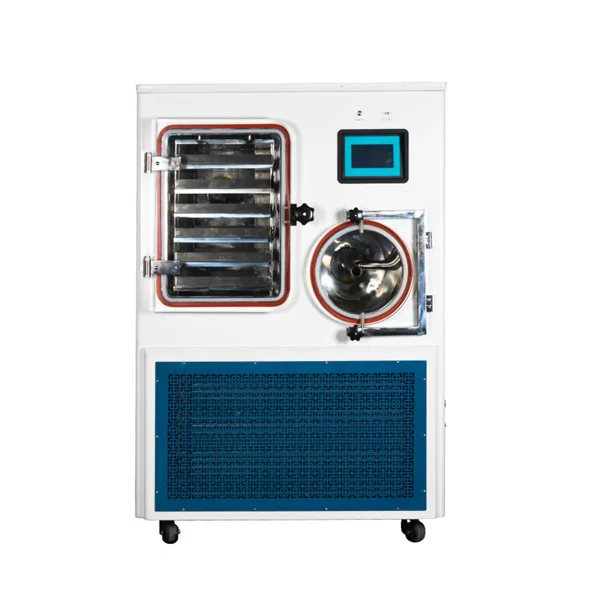

Fruit And Vegetable Food Vacuum Freeze Dry Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-1XDG-O

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Main technical parameters

Drying chamber	Item	SED-1XDG-O
	Freeze-drying area	1㎡
	Layers of shelf	6+1
	Temperature scope of shelf	-50℃-+70℃(no-load)
	Shelf temperature error	±1℃(in balance)
	Shelf spacing	70mm
	Size of shelf	365mm*485mm
Condenser	Min.Temperature of condenser	≤-75℃(no-load)
	Water-capture capability	＞20Kg
	Liquid material	15L
	Defrosting	Electric defrosting
	Final vacuum degree	≤5Pa
	Style of cooling	Fan cooling
Main functions	Manual+Auto Control Mode,Sensor calibration,Intelligent temperature control,Freeze drying termination reminding and other functions are available.
