Freeze Dry Machine
SED-24XDG 220V 50HZ 304 Stainless Steel Food Vegetable 0.24m2 Freeze Dry Machine
SED-24XDG 220V 50HZ 304 Stainless Steel Food Vegetable 0.24m2 Freeze Dry Machine Product Description of Freeze Dry Machine The SED-24XDG vacuum freeze dryer changes the tedious operation of the past drying process, prevents material contamination, and realizes the automation of drying and sublimation, and is suitable for pilot or small batch production. This model has partition heating and programmable functions, and can memorize the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials. Product Parameters of Freeze Dry
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-24XDG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD10000/Set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35days |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Set/Month |
Configuration and product details
Technical overview- Name
- SED-24XDG 220V 50HZ 304 Stainless Steel Food Vegetable 0.24m2 Freeze Dry Machine
- Freeze-dried area
- 0.24m2
- Panel materials
- 300*400mm (2+1 layer)
- Maximum water catching capacity
- 2kg/24h
- Cold hydrazine temperature
- -60
- Vacuum
- <10pa
- Shelf temperature
- -50to60
- Voltage
- 220V 50HZ
- material
- stainless steel
- key word
- Freeze Dry Machine
SED-24XDG 220V 50HZ 304 Stainless Steel Food Vegetable 0.24m2 Freeze Dry Machine
Product Description of Freeze Dry Machine
The SED-24XDG vacuum freeze dryer changes the tedious operation of the past drying process, prevents material contamination, and realizes the automation of drying and sublimation, and is suitable for pilot or small batch production.
This model has partition heating and programmable functions, and can memorize the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials.
Product Parameters of Freeze Dry Machine
| Product Name | Freeze Dryer Machine |
| Product Model | SED-24XDG |
| Freeze-dried area | 0.24m2 |
| Panel materials | 300*400mm (2+1 layer) |
| Maximum water catching capacity | 2kg/24h |
| Cold hydrazine temperature | -60 |
| Vacuum | <10pa |
| Shelf temperature | -50to60 |
| Voltage | 220V 50HZ |
| Power | 1.5KW |
Feature of Freeze Dry Machine
-60℃ Mini Small Laboratory Vacuum Freeze Dryer with LCD Touch screen
Automatic one-key start PLC control system throughout the complete freeze dyring process
Oil vacuum pump is included as standard configuration. Oil-free dry scroll vacuum pump is optional.
Commercial grade vacuum pump
Low operating current and low energy consumption
Solid stainless steel 304 food tray and chamber reliable for food safety and easy for cleaning
Transparent organic glass door with direct observation of freeze drying process.

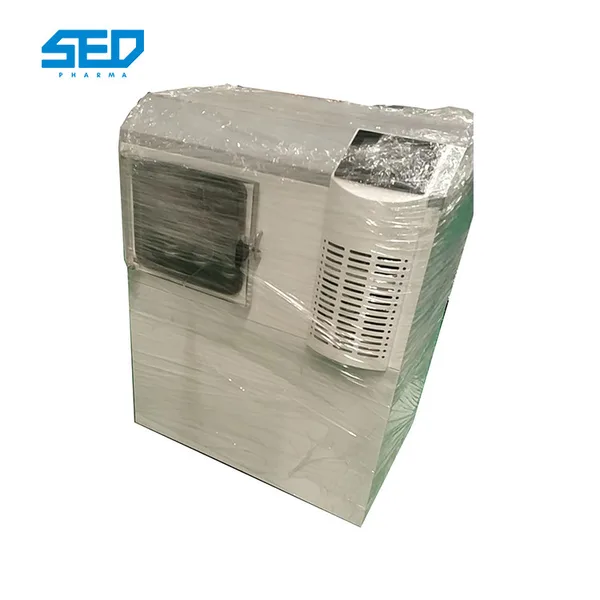

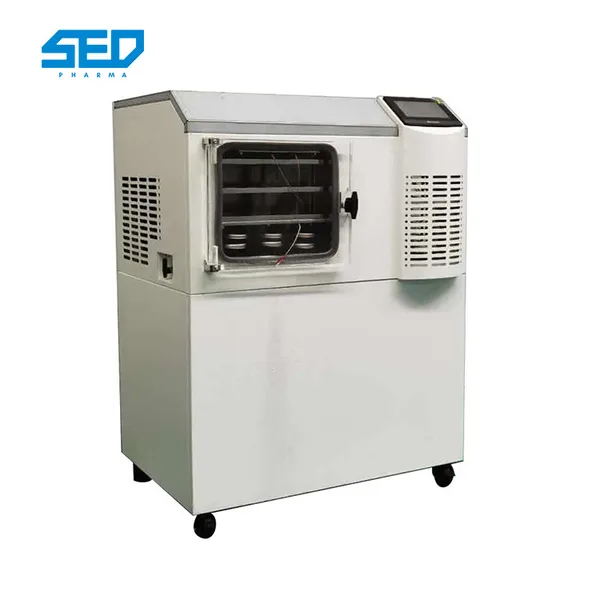

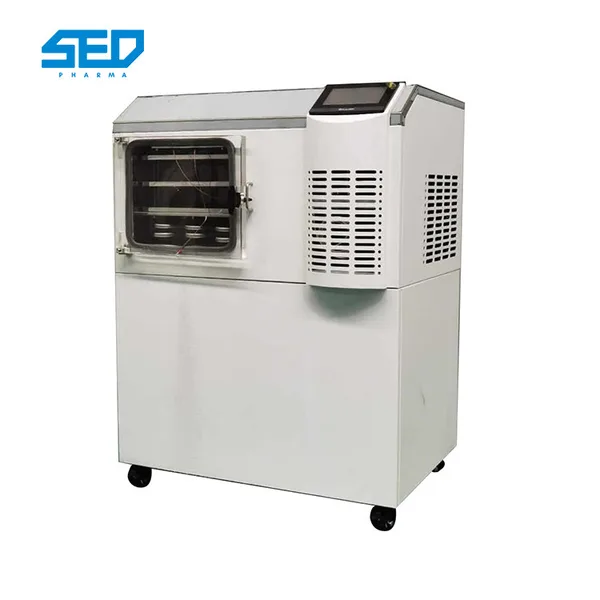

Show of Freeze Dry Machine
Application of Freeze Dry Machine
