Liquid Filling Machine
SS Pharmaceutical Liquid Filling Equipment Liquid Filling And Sealing Machine
SS Pharmaceutical Liquid Filling Equipment Liquid Filling And Sealing Machine Product Description of Liquid Filling Machine This is the most advanced Suppository Filling and Sealing Machine in China. The machine is suitable for any kinds of material, such as PVC laminated by PE, PVC laminated by LDPE. It can be filled by Liquid, Honey, Semi Liquid, etc. This machine is PLC Control and adopts easy changeable Button Panel for operating. The machine is stepless running, one minute for 1-50cutting. It is Suitable for Pharmacy Factory, Hospital, Lad, Etc. Product Parame
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-120SP |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advanced payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per Month |
Configuration and product details
Technical overview- Name
- SS Pharmaceutical Liquid Filling Equipment Liquid Filling And Sealing Machine
- Max Forming Depth
- 12mm
- Cutting Frequency
- 0-25 times
- Packaging Material
- PVC/PE(0.2-0.4)*120mm
- Capacity volume
- 1-20ml
- Dimension
- 2300*850*1500mm
- material
- stainless steel
- key word
- Liquid Filling Machine
SS Pharmaceutical Liquid Filling Equipment Liquid Filling And Sealing Machine
This is the most advanced Suppository Filling and Sealing Machine in China. The machine is suitable for any kinds of material, such as PVC laminated by PE, PVC laminated by LDPE. It can be filled by Liquid, Honey, Semi Liquid, etc.
This machine is PLC Control and adopts easy changeable Button Panel for operating. The machine is stepless running, one minute for 1-50cutting. It is Suitable for Pharmacy Factory, Hospital, Lad, Etc.
Product Parameters of Liquid Filling Machine
| Max Forming Depth | 12mm |
| Cutting Frequency | 0-25 times |
| Packaging Material | PVC/PE(0.2-0.4)*120mm |
| Capacity volume | 1-20ml |
| Total Power | 4.5kw |
| Voltage | 220V-380V/50HZ |
| Weight | 750kgs |
| Dimension | 2300*850*1500mm |
Advantages of Liquid Filling Machine
- Controlled by PLC, the frequency conversion in finitely variable speed.
- All the process such as spreading roll, ampoule bottle forming, filling, sealing, printing serial numbers, cutting, etc are controlled by programming.
- The filling head doesn’t drop, leak, produce bubbles and spill over
- Meet GMP Standard

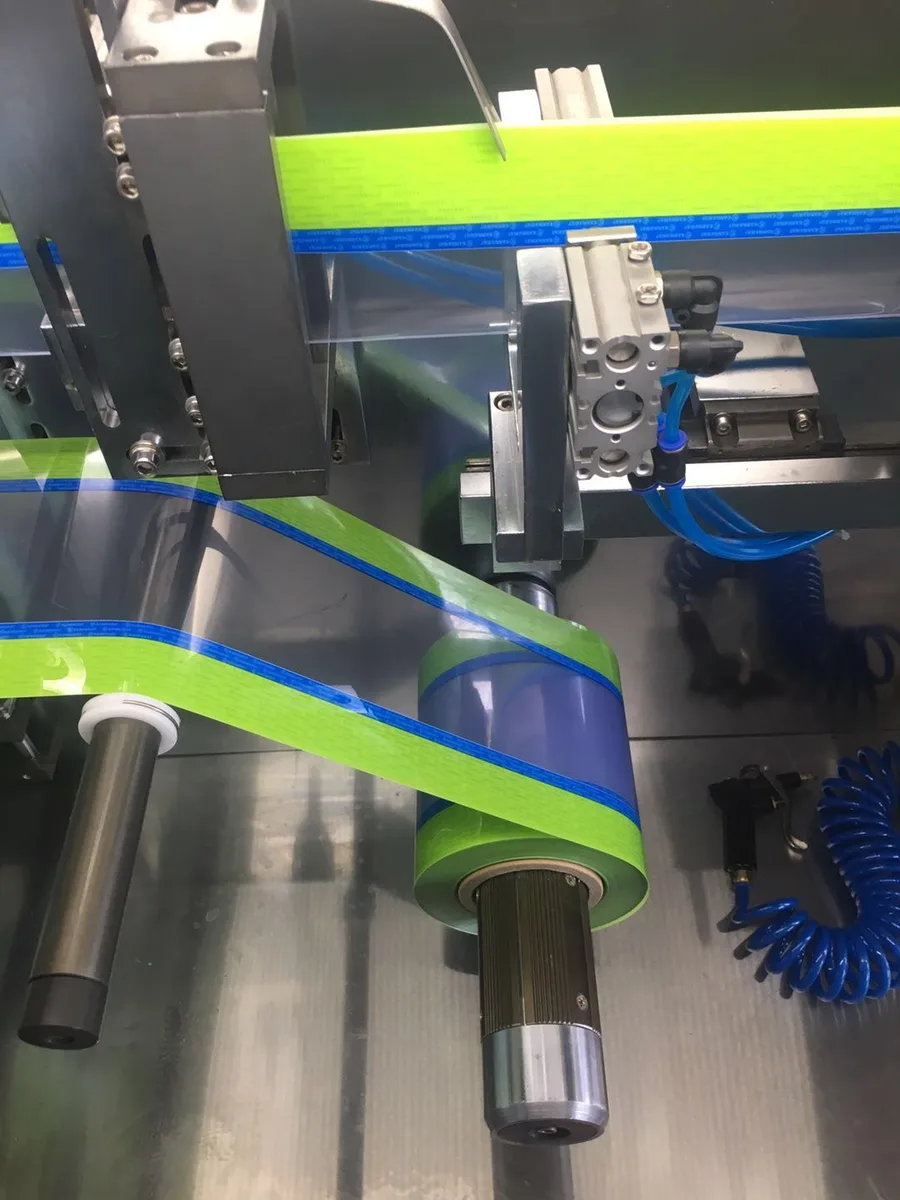

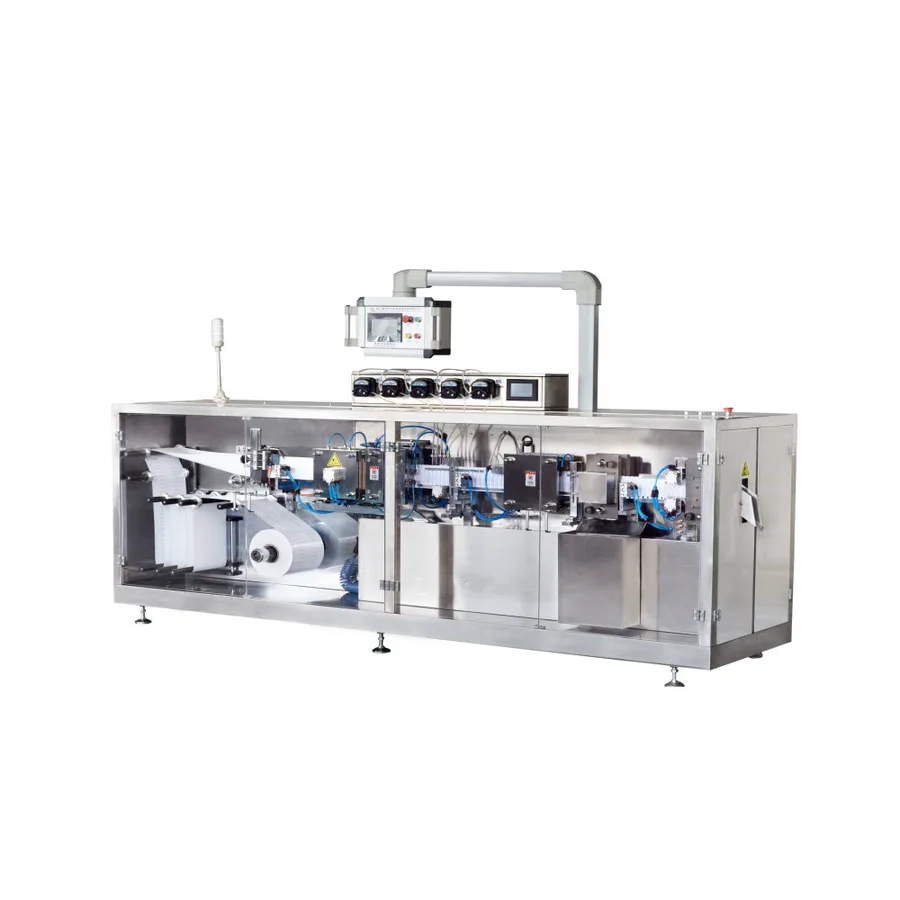

Products Show of Liquid Filling Machine
Application of Liquid Filling Machine
