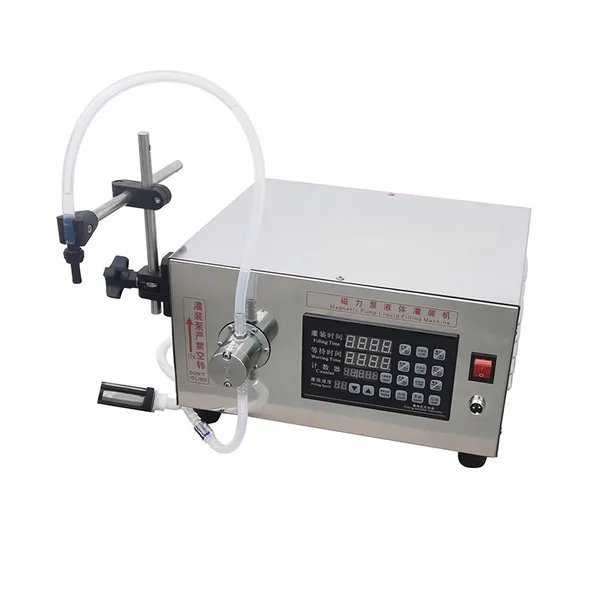

Semi-automatic Liquid Filling Machine With 1 Filling Head

Introduction

Can fill most types of liquids. Such as: various pharmaceuticals, chemicals, oils, cosmetics, food and other non-granular liquids; high filling accuracy, suitable for laboratory use.

Feature

1) Adopt the world brand frequency conversion governor, equipped with imported high-precision multi-turn potentiometer and lockable dial, so that the flow adjustment is stable and accurate, the error is less than 0.5% negative and 1.5% positive.

2) Stainless steel cover, durable;

3) Small size, easy to operate;

4) Easy to clean;

5) Full-featured, both automatic and manual. Can be equipped to work on the assembly line;

6) Can be equipped with multiple filling heads, commonly used models include 1-head machine, 2-head machine and 4-head machine;

7) The filling volume can be adjusted from 1ml to 10000ml, which is easy to adjust.

Technical parameters

	Model	SED-1BYG-D (1head)
	Volage	AC 220V /±5%
	Power	40W
	Weight	14kg
	Deviation	±1.5%
	Max Flow/Single Pump	>1.44L/min(Depends on the volume of the bottle)
	Machine size	410×330×270(mm)
	Packing size	600×470×365(mm)
