Capsule Filling Machine

Semi Automatic Capsule Filling Machine With Horizontal Locking System

Name: Semi Automatic Capsule Filling Machine With Horizontal Locking System
Brand: SED Pharma

Product Description of Powder Capsule Filler SED-BJ-IV Semi-Automatic Capsule Filling Machine is special capsule filling machine, which is suitable for capsule filling of powder and granules in small and medium pharmaceutical factory, hospital preparation lab, etc. And it can complete capsule sewing, separating, filling, locking, etc. The machine is composed of capsule feeding mechanism, U-shaped turning and separating mechanism, locking device, electronic speed adjustment mechanism, electronic and pneumatic control system, protection device, vacuum pump, air pump and other

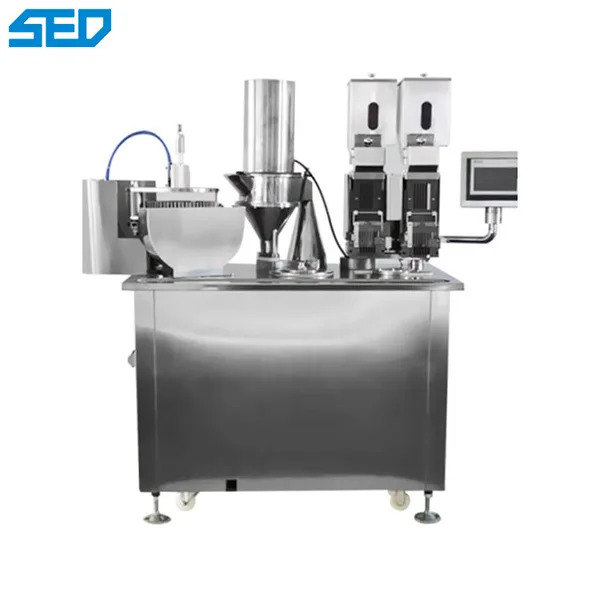

Semi Automatic Capsule Filling Machine With Horizontal Locking System, view 1

Semi Automatic Capsule Filling Machine With Horizontal Locking System, view 2

Semi Automatic Capsule Filling Machine With Horizontal Locking System, view 3

Semi Automatic Capsule Filling Machine With Horizontal Locking System, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-BJ-IV-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Working days after receiving advanced payment or original L/C
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Semi Automatic Capsule Filling Machine PLC Controlled With Horizontal Locking System
Mode: Semi Automatic
Filling Material: Moisture-free, non-sticky small particles
Capacity Of air compressor: 0.03m3/min 0.7Mpa
Suitable Capsule Size: 000#-4#
Power: 2.12kw
Capacity: 1000-35000 capsules/h
Weight: 420kgs
material: stainless steel
key word: Powder Capsule Filling Machine Automatic Capsule Filling Machine

Product Description of Powder Capsule Filler

SED-BJ-IV Semi-Automatic Capsule Filling Machine is special capsule filling machine, which is suitable for capsule filling of powder and granules in small and medium pharmaceutical factory, hospital preparation lab, etc. And it can complete capsule sewing, separating, filling, locking, etc.
The machine is composed of capsule feeding mechanism, U-shaped turning and separating mechanism, locking device, electronic speed adjustment mechanism, electronic and pneumatic control system, protection device, vacuum pump, air pump and other accessories. Dual capsule sewing heads design improves production speed greatly.

Product Parameters of Powder Capsule Filler

Model:	SED-BJ-IV-H
Capsule Size:	#000-#4
Capacity Of air compressor:	0.03m3/min 0.7Mpa
Overall Dimensions:	11407801600mm
Net Weight:	420Kg
Capacity:	1000-35000 capsules/h

Feature of Powder Capsule Filler

GMP design with emphasis in powder dust handling: Enclosed main turn table avoid dust getting into mechanical parts.

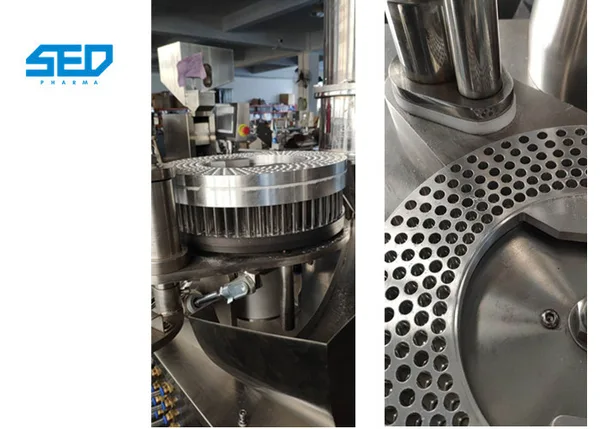

Special 3D design in dosing disc bottom ring, 5-column support prevents material fatigue and deformation, ensures a constant gap of the dosing disc.

Enclosed dosing system with dust suction reduces cleaning frequency.

Vacuum cleaning station for segment cleanup in each cycle.

Efficient capsule separation by means of vacuum.

Precision capsule segments and dosing disk minimizes adjustments following parts changeover.

Automatic control for capsule and powder supply.

PLC control (SIEMENS) for reliable operation.

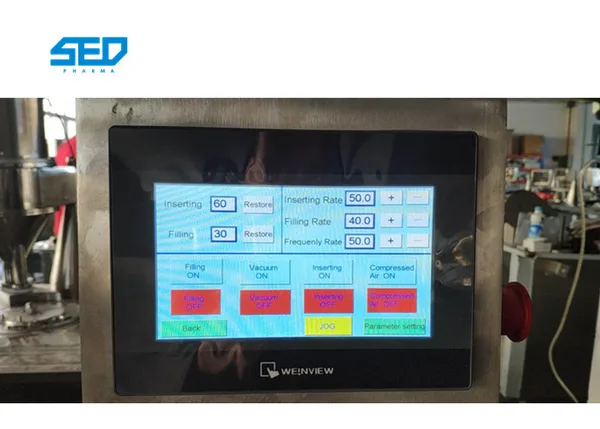

Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
SS 304 stainless steel frames and transparent safety interlock guards.

Product Details

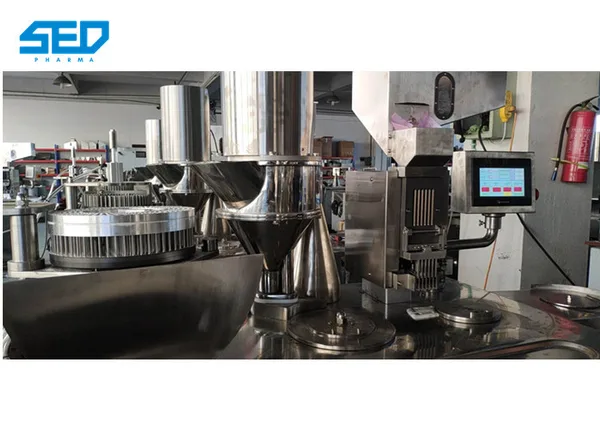

Semi Automatic Capsule Filling Machine With Horizontal Locking System product detail
