Capsule Filling Machine
Semi Automatic Capsule Filling Machine Stainless Steel 20000-40000 Capsules/H
Semi Automatic Capsule Filling Machine Stainless Steel 20000-40000 Capsules/h Product Overview of Capsule Filler The machine is equipped with electric and air control devices and an automatic counting device, which can automatically complete the whole filling process in sequence from positioning empty capsules, separating empty capsules, filling capsules to locking filled capsules. It is suitable for filling the capsules in sizes 00#,0#,1#,2#,3#,4#. It can be customized to fill size 000# and size 5# capsules, but the filling speed will slow down. The filling amount
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | SED-pharma |
| Certification: | CE |
| Model Number: | SED-BJ-IV-A |
| Minimum Order Quantity: | >=1 Pieces |
|---|---|
| Price: | $6,450.00 / Piece |
| Packaging Details: | Export standard packing |
| Delivery Time: | Est. Time(days)-15-To be negotiated |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Piece/Pieces per Month |
Configuration and product details
Technical overview- Name
- Semi Automatic Capsule Filling Machine Stainless Steel 20000-40000 Capsules/h
- Dimension(L*W*H) Thickness(mm)
- 1300*700*1650 mm
- Capacity
- 20000-40000 capsules/h
- Filling Accuracy(%)
- 99.7 %
- Capsule Size
- No.000#-5#
- Power supply
- 220/380V 1/3Pharse 5kw
- Weight
- 420 Kg
- Key Word
- Capsule Filling Machine Semi Automatic Capsule Filling Machine
Semi Automatic Capsule Filling Machine Stainless Steel 20000-40000 Capsules/h
Product Overview of Capsule Filler
The machine is equipped with electric and air control devices and an automatic counting device, which can automatically complete the whole filling process in sequence from positioning empty capsules, separating empty capsules, filling capsules to locking filled capsules.
It is suitable for filling the capsules in sizes 00#,0#,1#,2#,3#,4#. It can be customized to fill size 000# and size 5# capsules, but the filling speed will slow down.
The filling amount can be adjusted by the number of rotations of the dosing disk. The powder feeder also has an auger to regulate the powder filling.
This improvement meets cGMP requirements, and results in faster production, more accurate filling, safer operation, simpler maintenance, super lower noise, easier cleaning and less labor intensive than other machines.
Product Parameters of Capsule Filler
| Product Name | Semi Automatic Capsule Filling Machine Stainless Steel 20000-40000 Capsules/h |
| Product model |
SED-BJ-IV-A |
| Filling Precision | ±3% |
| Filling Materials | Powder, granule, pellet, tablet |
| Suitable capsule | 000#,00#,0#,1#,2#,3#,4#,5# |
| Machine output | 100-500 capsules |
| Machine output |
20000-40000 capsules/h |
| Rated voltage |
220/380V 1/3Pharse |
| Rated power | 5kw |
| Host weight |
420 Kg |
| Outline size |
1300*700*1650 mm |
Feature of Capsule Filler
1. The SED-BJ-IV-A Semi Automatic Capsule Filling Machine is a product improved according to the shortcomings of the existing semi automatic capsule filling machine.
2. The machine adopts programmable control system, touch screen operation, stepless frequency conversion and pneumatic control.
3. The machine adopts double sowing station, which has obvious improvement over the old type machine, in terms of sowing speed, mold replacement, filling and maintenance. The equipment becomes more efficiency, convenient, simple and stable. For capsule locking station, it adopts pneumatic control and automated locking system to save labor time.
4. The machine has been installed a safety door device at the dialing station. When the safety door is open, the equipment cannot run. In the powder filling station, a visual window is added to observe the powder loading level.
A blocking board is installed above the locking station to avoid accidents when the lock is turned over. A capsule tray placement rack is added on the right side of the device for easy application.
5. The machine are made of stainless steel to prevent corrosion and oxidation.
6. The equipment can be used for different types of capsules filling with medicines and health care products such as powder, granules and pellets.

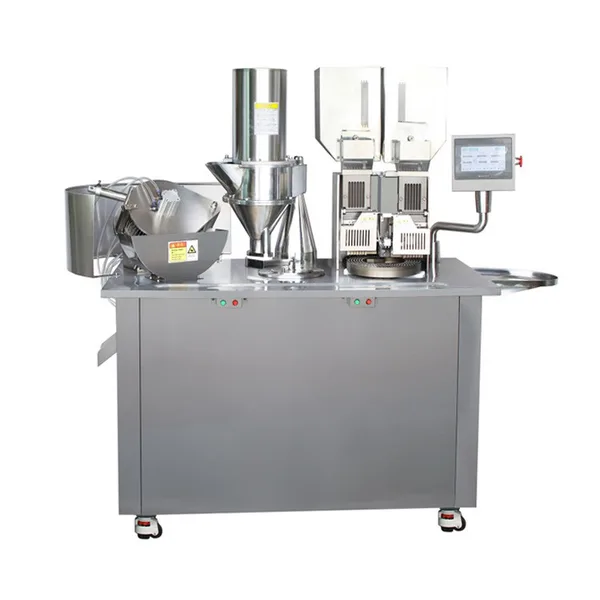

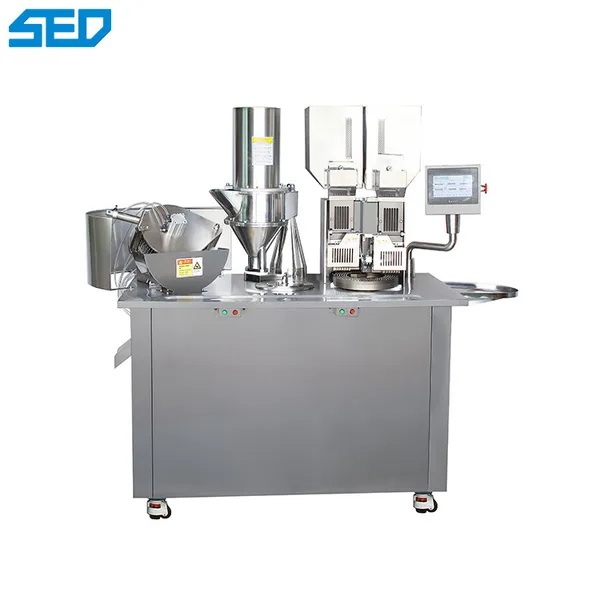

Product Show of Capsule Filler
Product Details Show of Capsule Filler
Application of Capsule Filler
The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.
