Semi Automatic Capsule Filling Machine For Medicine

Semi Automatic Capsule Filling Machine For Medicine



Product Description of Capsule Filling Machine ​



SED-BJ-II Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.



The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc.



The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.



Detailed Parameters of Capsule Filling Machine ​

Technical Parameters
Model	SED-BJ-II
Production capacity(pcs/h)	12500-20000
Motor(kw)	380V 50Hz 3 phase, 4 line 2.2Kw
Net weight(kg)	330
Overall size(mm)	1200*700*1500
Applicable capsule	00#, 0#, 1#, 2#, 3#, 4# domestic or imported capsules
Air compressor (MPa)	0.4-0.6
Accessory equipment	1 vacuum pumps, air compressor (user supplied)
Filling agent	Powder / granule

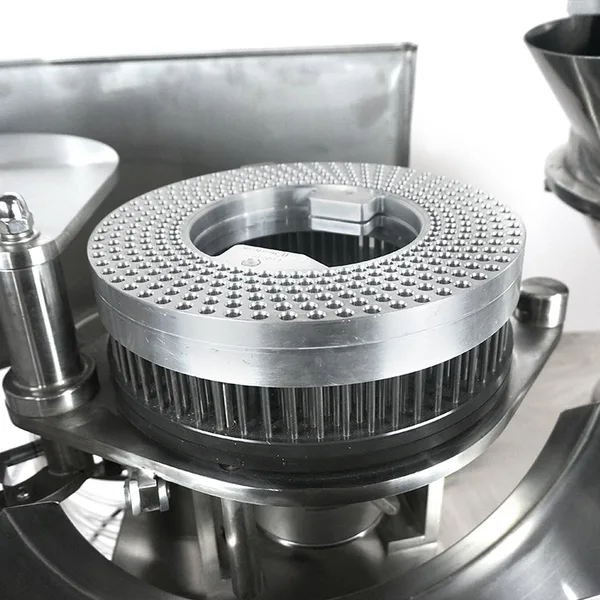

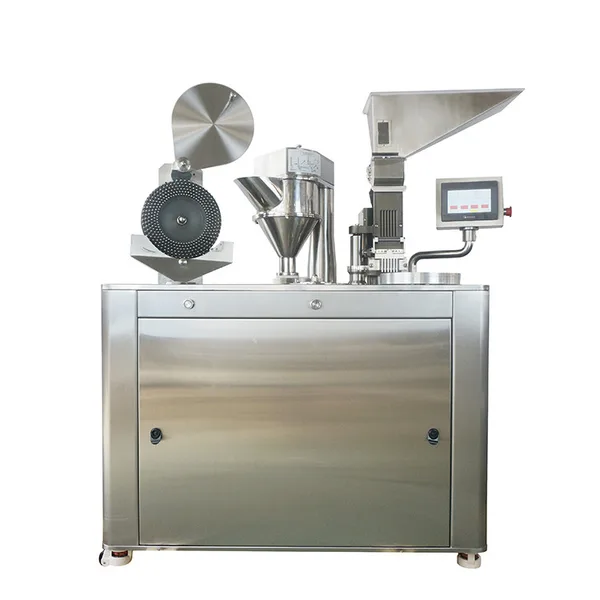

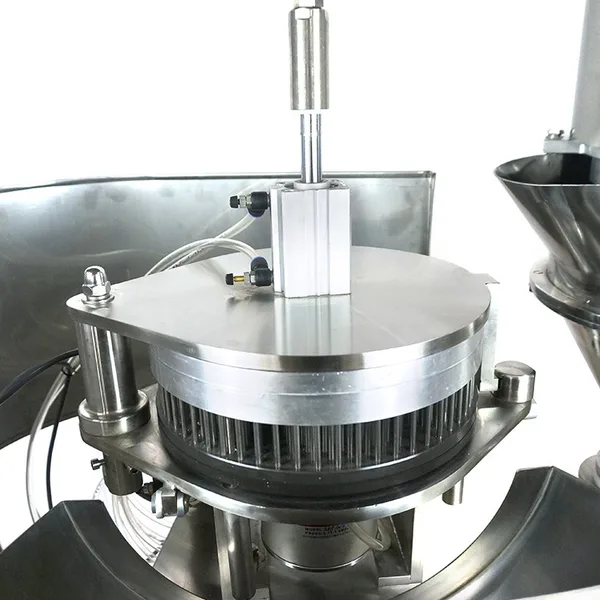

Product Show of Capsule Filling Machine​



Feature of Capsule Filling Machine



​1) It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.

2) SED-BJ-II adopts Touch Button for operating. It will be hard for making powder into Controlling System.

3) Easy for Changing Mould from Size 00 to 5#.

4) The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)

5)We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.



Application of Capsule Filling Machine ​
