Capsule Filling Machine

Semi-Automatic Capsule Filler With Button Control

Name: Semi-Automatic Capsule Filler With Button Control
Brand: SED-Pharma

Semi-Automatic Capsule Filler With Button Control Product Description of Capsule filling machine The semi-automatic capsule filling machine is a kind of equipment suitable for medicine, industry, chemical industry, food and other industries, with novel structure and beautiful shape. This machine uses electropneumatic joint control, and it is equipped with touch switch, programming control, frequency conversion and speed regulating device. It can respectively complete various steps including putting the capsule in place, separating, filling, locking and so on. Instead of m

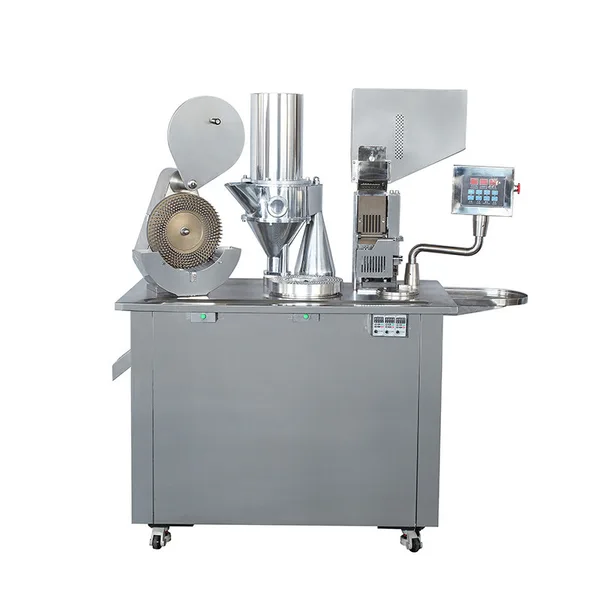

Semi-Automatic Capsule Filler With Button Control, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-BJ-I-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Semi-Automatic Capsule Filler With Button Control
After-sales service provided: Engineers available to service machinery overseas,Video technical support,Online support
Condition: New
Dimension(l*w*h): 1450*670*1650mm
Type: Semi Automatic Filling Machine
Application: Medical,Food,Chemical,Beverage,Commodity
material: stainless steel
key word: Powder Capsule Filling Machine,Automatic Capsule Filling Machine

Semi-Automatic Capsule Filler With Button Control

Product Description of Capsule filling machine

The semi-automatic capsule filling machine is a kind of equipment suitable for medicine, industry, chemical industry, food and other industries, with novel structure and beautiful shape. This machine uses electropneumatic joint control, and it is equipped with touch switch, programming control, frequency conversion and speed regulating device. It can respectively complete various steps including putting the capsule in place, separating, filling, locking and so on. Instead of manual filling, this machine can reduce the labor intensity, and improve production efficiency. It has accurate filling dose and meets the requirements of medicine hygiene.

This machine is composed of the mechanism of capsule turning and separating, the filling mechanism, the locking mechanism, the frequency converter and speed regulating mechanism, the pneumatic control and electrical control system, the protection device and other parts as well as the accessories of the vacuum pump and the air pump.

The domestic or imported capsules all can be applied, and the qualified rate of the finished product can reach more than 98%.

Product Parameters of Capsule filling machine

Model	SED-BJ-I-A
Capsule Size	000#-5#
Capacity	10000-22500 capsules/h
Power Supply	220V/380V 1P/3P 2.1KW
Vacuum Pump	40m3/h
Capacity of Air Compressor	0.03m3/min 0.7Mpa
Overall Dimension	14506701650mm
Weight	330kg

Feature of Capsule filling machine

1. Much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC.

2. Adopt SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces fnction. Not only does it improve the producing efficiency, but also it extends the life of the machine.

3. The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle.

The main benefits that you will experience by using a semi-automatic filling machine include:

1. You can use it to fill different types of fillers including powders, pellets, or granules.

2.It provides automation up to a certain degree thus increasing the speed of production.

3.You can use it for a considerably larger scale of production in comparison to the manual capsule filling machine.

4. The initial cost of purchasing it is lower in comparison to a fully automatic capsule filling machine.

5.Using this machine eliminates almost all of the personnel you would employ when using the manual filling machine.

6.The filling accuracy is higher than that of the manual filling machine.

7.The machine adheres to the right manufacturing quality standards hence safe for use.

8.The operations of the machine do not emit large sound hence a peaceful working environment.

Application of Capsule filling machine

The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.
