Capsule Filling Machine
Semi-Automatic Capsule Filler Suitable for pharmaceutical factory

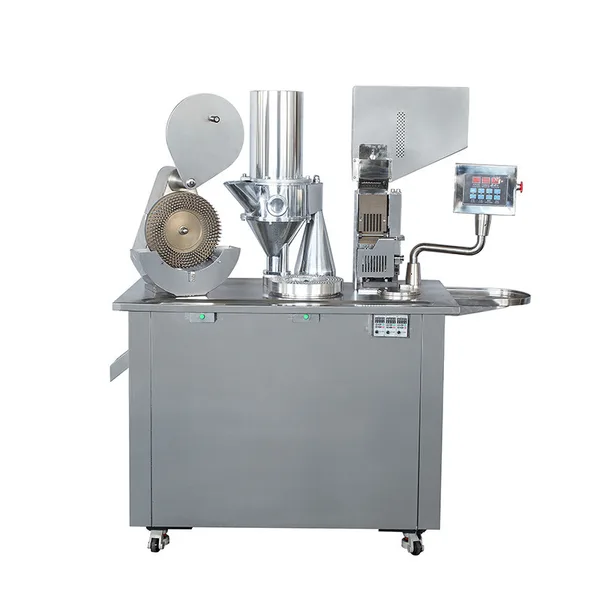

Semi-Automatic Capsule Filler Suitable for Pharmaceutical Factory Product Description of Capsule Filling Machine SED-BJ-I-A Semi-Automatic Capsule Filling Machine is special capsule filling machine, which is suitable for capsule filling of powder and granules in small and medium pharmaceutical factory, hospital preparation lab, etc. And it can complete capsule sewing, separating, filling, locking, etc. The machine adopts PLC, stepless transduction speed-shift, and electronic automatic counter. The dosage is accurate, and the operation is convenient. The overall machine is
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | GMP |
| Model Number: | SED-BJ-I-A |
| Minimum Order Quantity: | 1 Carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag,Aluminum bag,Foam board,Carton |
| Delivery Time: | 20 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30*40HQ per month |
Configuration and product details
Technical overview- Name
- Semi-Automatic Capsule Filler Suitable for pharmaceutical factory
- Model
- SED-BJ-I-A
- Capsule Size
- 000#-5#
- Capacity
- 10000-22500 capsules/h
- Power Supply
- 220V/380V 1P/3P 2.1KW
- Vacuum Pump
- 40m3/h
- Capacity of Air Compressor
- 0.03m3/min 0.7Mpa
- Overall Dimension
- 1450*670*1650mm
- Weight
- 330kg
- Key words
- capsule filling machine,capsule making machine,capsule filler
Semi-Automatic Capsule Filler Suitable for Pharmaceutical Factory
Product Description of Capsule Filling Machine
SED-BJ-I-A Semi-Automatic Capsule Filling Machine is special capsule filling machine, which is suitable for capsule filling of powder and granules in small and medium pharmaceutical factory, hospital preparation lab, etc. And it can complete capsule sewing, separating, filling, locking, etc.
The machine adopts PLC, stepless transduction speed-shift, and electronic automatic counter. The dosage is accurate, and the operation is convenient. The overall machine is made of 304 stainless steel, in line with GMP requirements.
Technical Parameters of Capsule Filling Machine
| Model | SED-BJ-I-A |
| Capsule Size | 000#-5# |
| Capacity | 10000-22500 capsules/h |
| Power Supply | 220V/380V 1P/3P 2.1KW |
| Vacuum Pump | 40m3/h |
| Capacity of Air Compressor | 0.03m3/min 0.7Mpa |
| Overall Dimension | 1450*670*1650mm |
| Weight | 330kg |
Features
●The machine has a frequency conversion speed regulation function, which can realize metering adjustment by controlling the powder filling speed, and the accuracy can reach 97%.
●The new type of sacking device has the characteristics of stable sacking, convenient mold replacement and short time.
●The new mold is made of stainless steel, which meets GMP requirements.
●The new type of capsule locking device can automatically lock and eject the capsule, which is simple and quick to operate.
Application of Capsule Filling Machine
