Automatic Labeling Machine

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator

Name: SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator
Brand: SED Pharma

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator Product Parameters of Sticker Labeling Machine Model SED-STB Driving Mode American AB labeling engine Yield(pcs/min) 30-150 (depends on bottle and label size) Operating direction Left or Right Conveyor Speed(m/min) ≤35 Labeling Accuracy ±1.0 mm Inner diameter of label roll 76 mm Outer diameter of label roll 350 mm(max) Suitable label size Width 15-110 mm length 15-200 mm Suitable labeling products size Can customized depends on client product Printer use air 5k

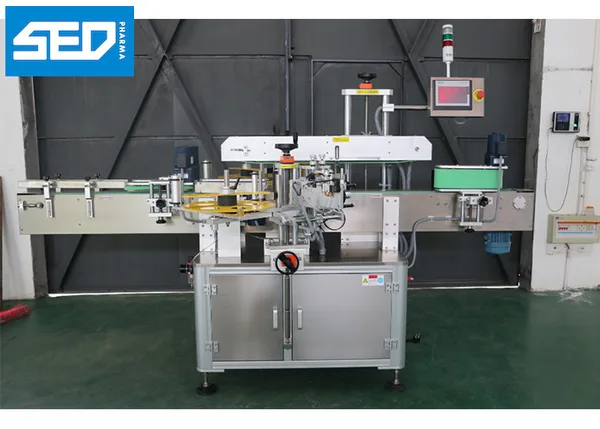

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator, view 1

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator, view 2

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator, view 3

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-STB

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator
Power: 0.5kw
Suitable Bottle Size: (15-260)*(20-150)*(25-350)mm
Weight: 200kgs
Suitable label size: (10-150)*(15-200)mm
Dimension: 2000X1300X1500mm
Power Supply: 220V 50HZ Single phase
Max Diameter of Label: Ф 300mm
material: stainless steel
key word: Sticker Labeling Machine

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator

Product Parameters of Sticker Labeling Machine

Model	SED-STB
Driving Mode	American AB labeling engine
Yield(pcs/min)	30-150 (depends on bottle and label size)
Operating direction	Left or Right
Conveyor Speed(m/min)	≤35
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	Width 15-110 mm length 15-200 mm
Suitable labeling products size	Can customized depends on client product
Printer use air	5kg/cm ²
Voltage (In China)	110V/220V/380V
Power(w)	1200W
Weight(kg)	360
Machine size	3000(L) 1250 (W) 1300 (H) mm

Equipment function characteristics of Sticker Labeling Machine

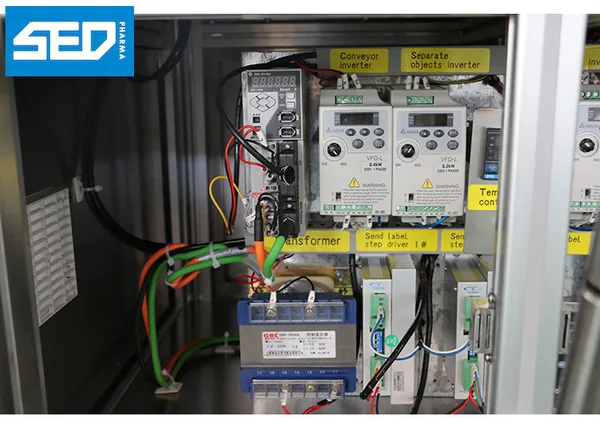

1) Control system: American AB PLC control system, with high stable operation and extremely low failure rate;

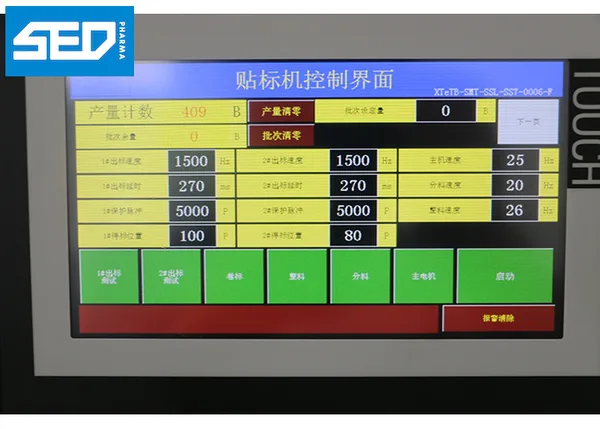

2) Operation system: 10 inch MCGS touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.

4) Send label system: American AB servo motor control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.

The Scope of Application of Sticker Labeling Machine

The model SED-STB Specially suit for both round and sqaure bottles which need labeling on the bottle double side, with rolling label device satisfied labeling on bottle body for around.

Products Show of Sticker Labeling Machine

SED-STB 220V 50HZ Single Phase Self Adhesive Sticker Labeling Machine Square Bottle Double Side Label Applicator product detail
