SED-PST Stainless Steel 304 Automatic Labeling Machine Carton Corner Two Sides Sticker Labeler Machine

SED-PST Stainless Steel 304 Automatic Labeling Machine Carton Corner Two Sides Sticker Labeler Machine



Product Parameters of Sticker Labeling Machine​

Model	SED-PST
Capacity (pcs/min)	10-130
Driving Mode	German Avery Labeling engine
Labeling accuracy	±1mm
Labeling Speed(m/min)	≤35
Label Specification	adhesive sticker, transparent or opaque
Suit bottle size	Can customized
Suit label size	Height 20-110mm Length 25-110mm
The inner diameter or label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Power	1000w
Voltage	can customized, 110V/220V/380V
Machine size	2300x1350x1500mm



Two Sides Sticker Labeling Machine Advantages:



1) Control system: American AB PLC control system, with high stable operation and extremely low failure rate.



2) Operation system: 10 inch MCGS touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with the help of the function and fault display function.



3) Check system: German LEUZE check label sensor, stable and convenient don’t have much higher requirement for worker.



4) Send label system: German Avery labeling engine control system, stable with high speed.



5) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.



6) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.



7) Low voltage circuit all use the German Schneider brand.

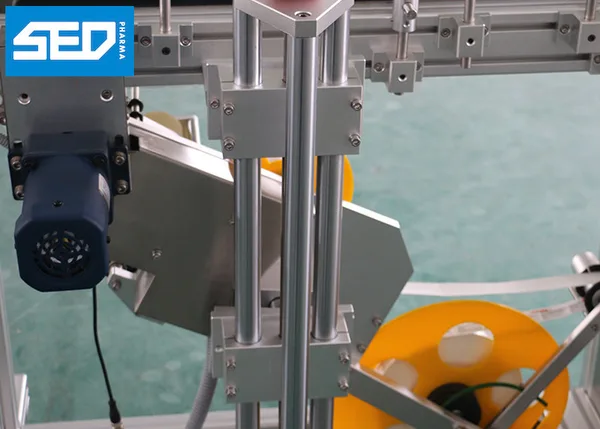

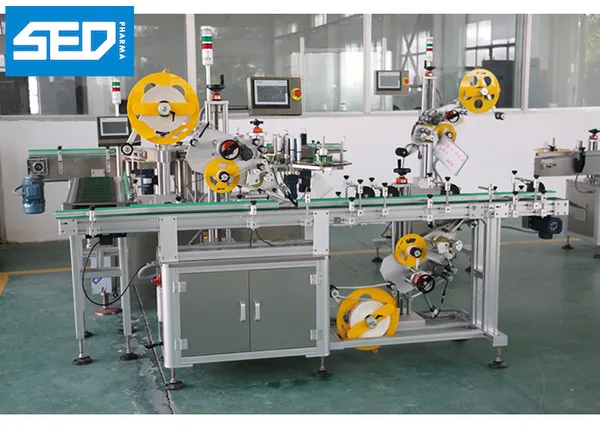

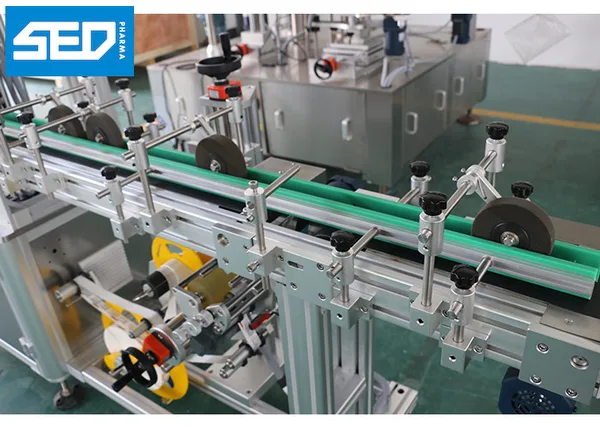

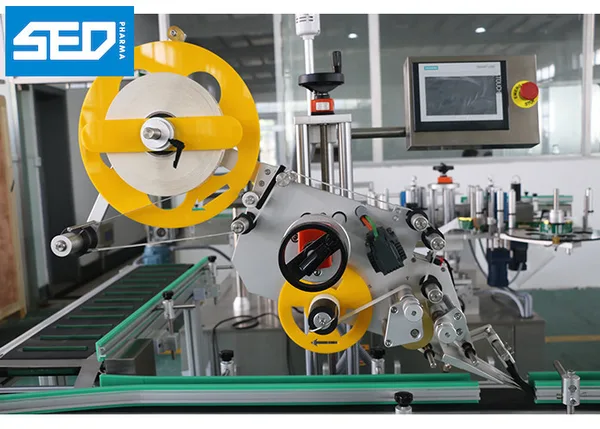

Products Show of Sticker Labeling Machine​



The Scope of Application:



The model SED-PST Carton corner labeling machine, suit for four kinds corner labeling patterns two top corners, two bottom corners, two diagonal corners.
