Capsule Filling Machine

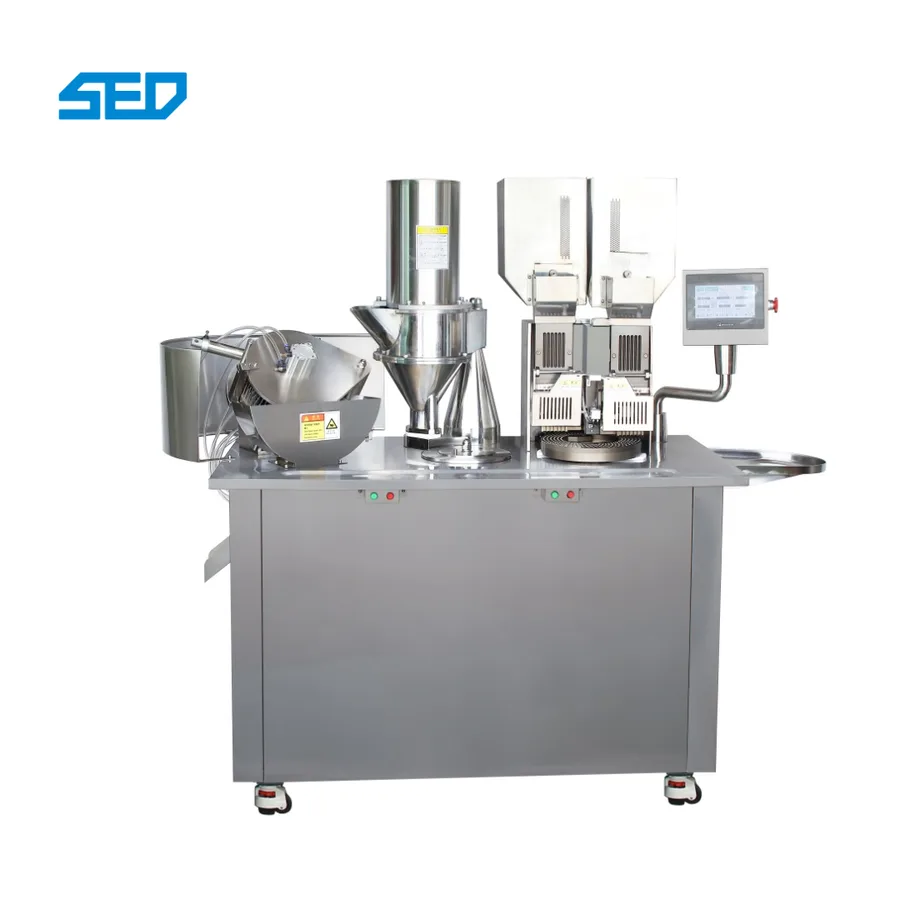

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine Product Description of Capsule Filling Machine SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine is a high-efficiency pharmaceutical equipment designed for medium-scale production in the pharmaceutical, nutraceutical, and health supplement industries. Featuring two independently controlled filling heads, this machine provides precise and fast capsule filling, significantly improving production efficiency while ensuring consistent product quality. Ideal for laboratories, small to medium enterprises, or p
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-BJ-IV |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
- Production capacity(pcs/h)
- 10,000–35,000 capsules/hour
- Motor(kw)
- 2.12KW
- Net weight(kg)
- 420kg
- Overall size(mm)
- 1140*780*1600mm
- Applicable capsule
- 00#-4#
- Filling Material
- Small dry granules (non-sticky)
- Key word
- Semi Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
Product Description of Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine is a high-efficiency pharmaceutical equipment designed for medium-scale production in the pharmaceutical, nutraceutical, and health supplement industries. Featuring two independently controlled filling heads, this machine provides precise and fast capsule filling, significantly improving production efficiency while ensuring consistent product quality.
Ideal for laboratories, small to medium enterprises, or production lines that require flexible output, this semi-automatic capsule filler combines high precision, reliability, and cost-effectiveness.
Detailed Parameters of Capsule Filling Machine
|
Model |
SED-BJ-IV |
|
Capsule Size |
#00 – #4 |
|
Total Power |
2.12 KW |
|
Output Capacity |
10,000–35,000 capsules/hour |
|
Filling Material |
Small dry granules (non-sticky) |
|
Air Consumption |
0.03 m³/min, 0.7 MPa |
|
Net Weight |
420 kg |
|
Gross Weight |
480 kg |
|
Machine Dimensions |
1140 × 780 × 1600 mm |
|
Packing Dimensions |
1650 × 800 × 1750 mm |
Features of Capsule Filling Machine

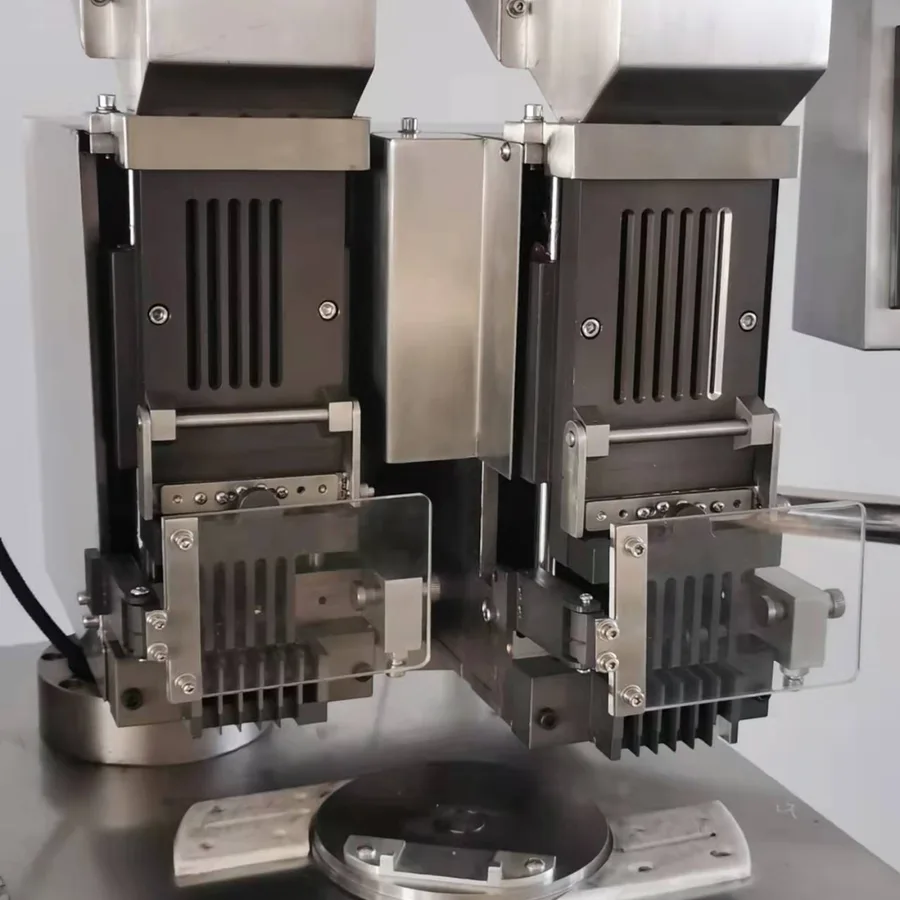

Equipped with two independently controlled filling heads for simultaneous material processing.
Adjustable parameters, including filling volume and speed, to accommodate different production requirements.
Advanced servo motors and precision metering pumps ensure accurate and consistent capsule filling.
Supports multiple filling modes, including quantitative filling and continuous filling.
Compatible with different molds and hoppers for various capsule sizes (#00–#4).
Touchscreen control system for intuitive and easy operation.
Hygienic & GMP Compliant Design
Stainless steel construction for easy cleaning and maintenance.
Equipped with multiple safety protections, including overload protection and emergency stop buttons.
Complies with international safety standards.
Product Detail
Application of Capsule Filling Machine
