SED-5DG Small Scale Fruits And Vegetables Vacuum Freeze Drying Machine 3 Square Meters Total Weight 3000Kg


SED-5DG Small Scale Fruits And Vegetables Vacuum Freeze Drying Machine 3 Square Meters Total Weight 3000Kg



Product Description of Freeze Dry Machine​
Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.



Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid solid gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge".



The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will no longer change until the "solid bridge" completely disappear.



Product parameters of Freeze Dry Machine

Power	380V/50HZ,three-phase and five-wire system
Total Power	30kw/100A
Cooling method	Air-cooled (room temperature ≤ 25 ℃)
Structure	Integral
Chamber design pressure	-0.1Mpa
Chamber design temperature	90℃
Chamber Vacuum leakage rate	0.025 Pa.m3/sec
Total usable area of shelves	5.4㎡
Maximum water fishing	≥100Kg
Temperature of shelf	Highest temperature of shelf≤+80℃ Lowest temperature of shelf≤-55℃
The number of shelf	9+1 (Compensation Board)
Shelf spacing	70mm
Shelf dimensions	600 mm×1000mm
Condenser design pressure	-0.1Mpa
Machine size (L×W×H)	3000mm×2000mm×2000mm Final dimension based on design Dry chamber and Condenser: D=φ1300mm L=2000mm
Total weight	3000Kg(Approx.)
Model Num.	SED-5DG



Feature of Freeze Dry Machine​
1. Fully automatic operation from the pre-freeze – first drying - second drying - end discrimination - Auto gland - Automatic repressed - Automatic defrost - Automatic shutdown.

2. Double protection design the machine is running due to operational errors, on the basis of protecting the product, but also protect the safety of the machine.

3. Standard products products temperature ≤-55 ℃ cold trap temperature ≤-75 ℃ vacuum degree ≤1Pa.

4. Modular product by system configuration, modular manufacturing, maintenance and more professional.

5. The end discriminant function at the end of secondary drying, the program automatically enters end discrimination in the confirmation dried products, prompted to enter the next step.

6. Sterile isolation design reliable machine or sterile isolation placement, user-friendly multi-site use.

7. The whole process of vacuum control provide the degree of vacuum drying phase variable control, automated operation.

8. Shelf pitch design available shelf spacing variable function to facilitate large difference in height lyophilized product.

9. A variety of extensions - eutectic point measurement, computer remote control, dew point measurement functions

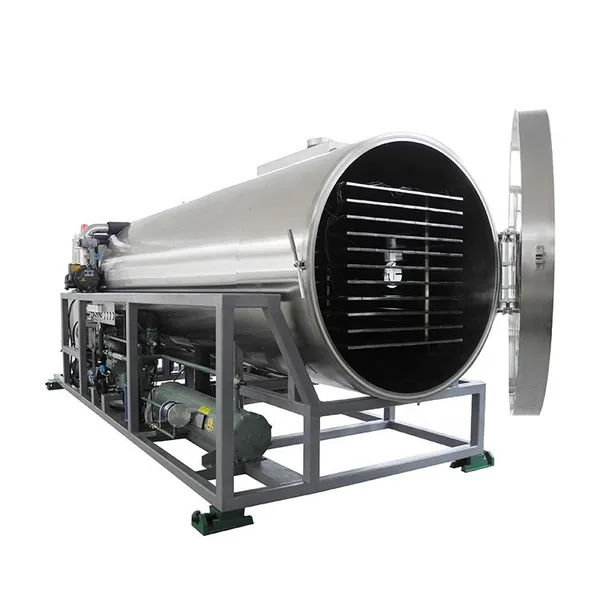

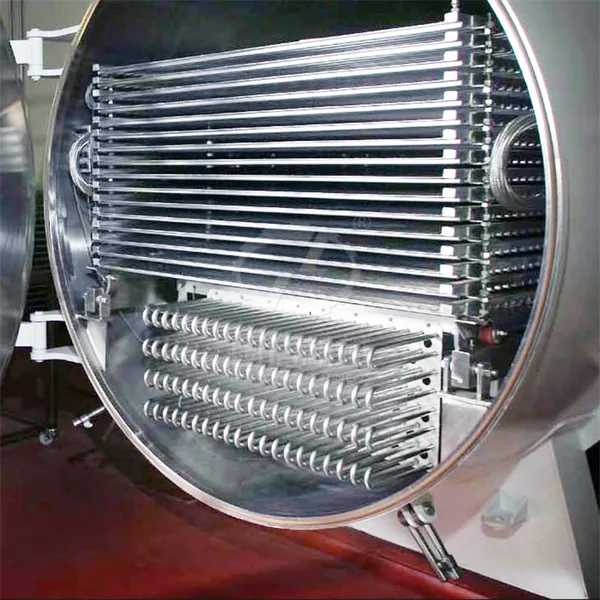

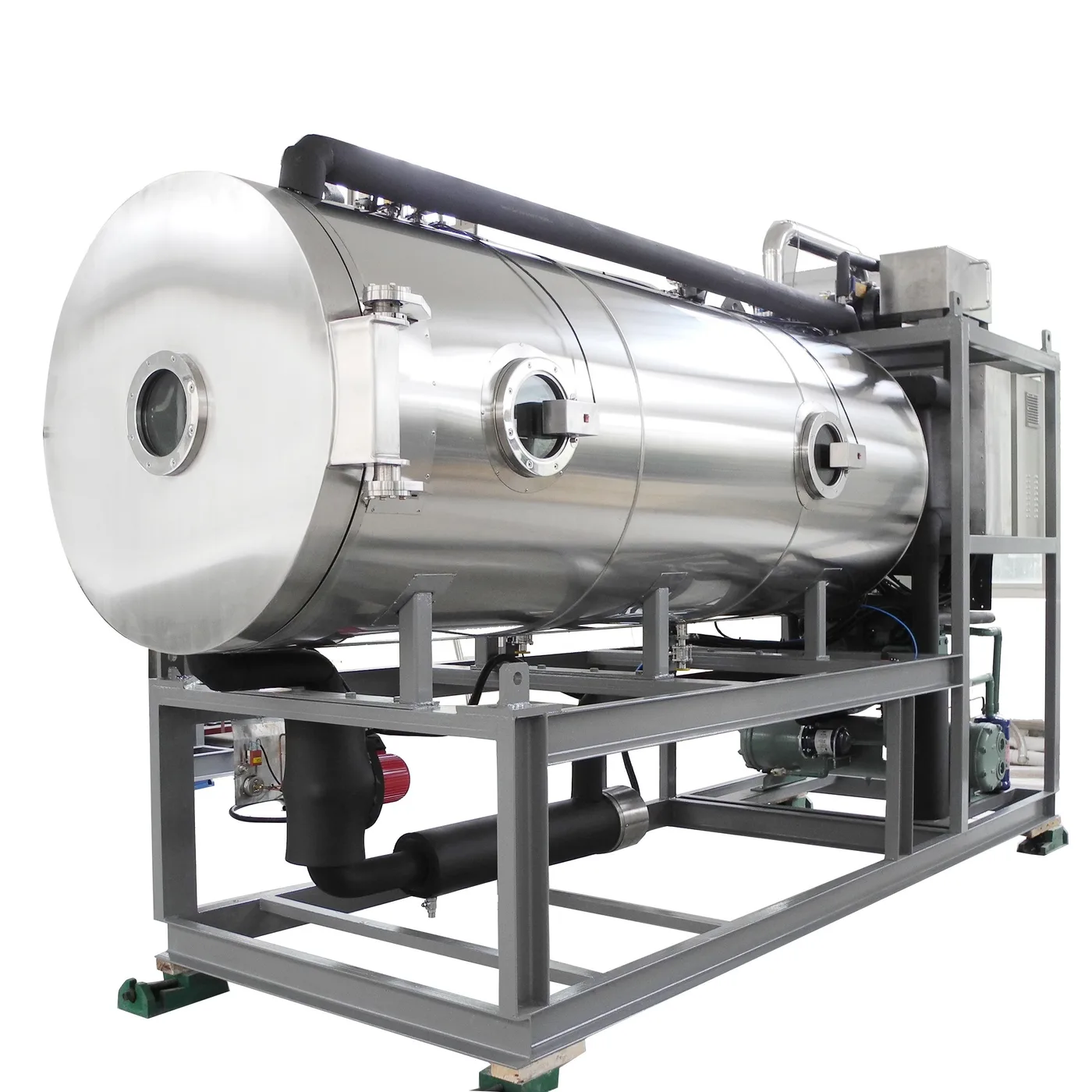

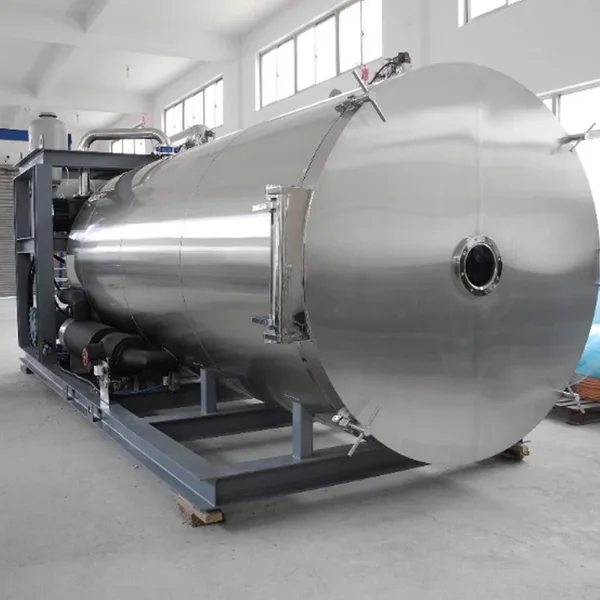

Product Show of Freeze Dry Machine​



Application of Freeze Dry Machine​

Food freeze dryer can freeze-dry pet food, cat food, dog food, chicken breast, quail, cosmetics, liquid and other products. It is produced under low temperature and vacuum conditions. Under such production conditions, it is easy to oxidize, volatile, Heat-sensitive substances can be preserved, and the harmful effects of bacteria and enzymes can be inhibited.
