SED-50DG Customizable Food Fruits Vacuum Freeze Dryer Large Size With 167Kw Power

SED-50DG Customizable Food Fruits Vacuum Freeze Dryer Large Size With 167Kw Power



Product Description of Freeze Dry Machine​



Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.



Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.



Product Parameters of Freeze Dry Machine

Product Name	SED-50DG Vacuum Freeze Dryer
Power	167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function	19.8kw
Refrigeration function	92kw
Heating function	55.5kw
Compressed air	≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity	≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
Defrost water Quantity	≥4000kg(T≥30℃,P=0.1-0.2Mpa)



Working Principle of Freeze Dry Machine​

Freeze dryer is a technology that uses the principle of sublimation for drying. The dried raw materials are quickly frozen at low temperature, and then in an appropriate vacuum environment, the frozen water molecules are directly sublimated into water

vapor to escape, and freeze-dried products are obtained. dry matter.



Feature of Freeze Dry Machine​



1. Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements

2. Cabinet, board level,and hose are tested after multiple procedures to ensure without leakage



3. Screw compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain

4 Temperature and pressure of compressor has multiple protection features

5. Suction filter settings, prevent degeneration of stolen goods and acid materials into the compressor chamber , corrosion internal parts and refrigeration oil.

6. Exhaust temperature protection set to avoid oil degeneration in extreme conditions , to reduce the exhaust temperature by cooling motor

7. Compliance with the Montreal Convention, with environmentally friendly refrigerants;

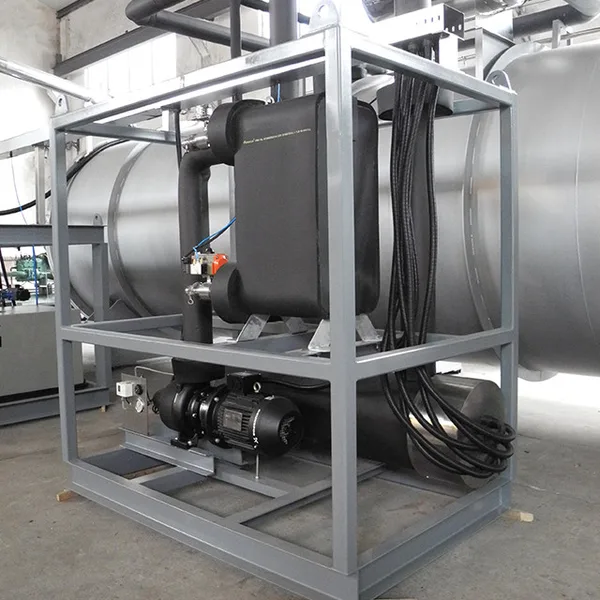

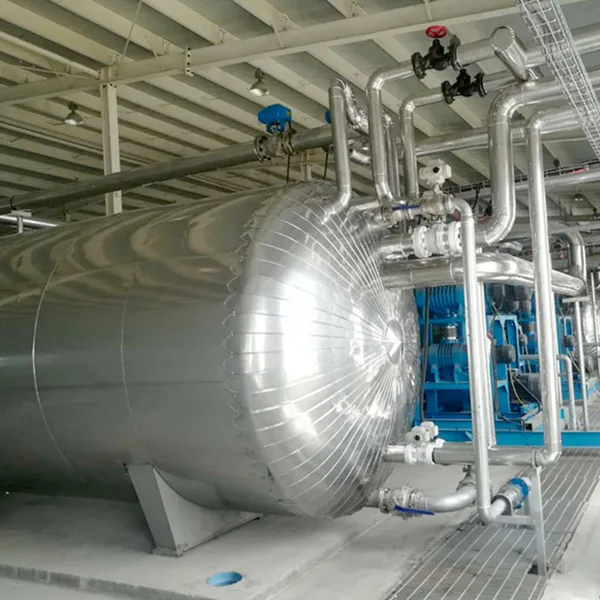

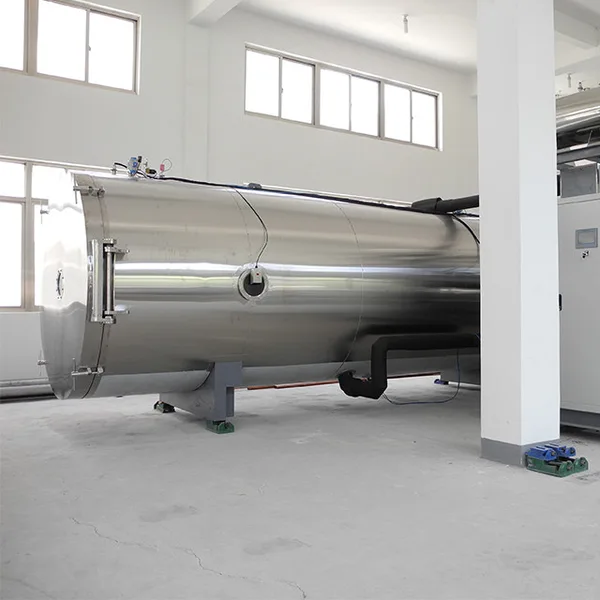

Product Show of Freeze Dry Machine​

Application of Freeze Dry Machine

Freeze dryer is a technology that uses the principle of sublimation for drying. The dried raw materials are quickly frozen at low temperature, and then in an appropriate vacuum environment, the frozen water molecules are directly sublimated into water vapor to escape, and freeze-dried products are obtained. dry matter.
