SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG

Name: SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG
Brand: SED Pharma

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG Product Overview of Freeze Dry Machine series vacuum freeze drye r (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production. Product Parameters of Freeze Dry Machine specification unit GZL-5 shelf area m2 5.2 input capacity kg 50 shelf number layers 7+1 shelf size mm 750*1000 shelf spacing mm 80 trolley number set - temp.control range ℃ -50 -+80 ice condensing capacity Kg/batch ≥100 condensr t

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG, view 1

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG, view 2

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG, view 3

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-3M

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	90-120 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	10 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG
shelf area: 5.2 m2
input capacity: 50 kg
shelf number: 7+1 layers
shelf size: 750*1000 mm
shelf spacing: 80mm
installation rate: 23.5KW
external dimension (L*W*H): 4000*1500*2500mm
material: stainless steel
key word: Freeze Dry Machine

SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG

Product Overview of Freeze Dry Machine

series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.

Product Parameters of Freeze Dry Machine

specification	unit	GZL-5
shelf area	m2	5.2
input capacity	kg	50
shelf number	layers	7+1
shelf size	mm	750*1000
shelf spacing	mm	80
trolley number	set	-
temp.control range	℃	-50 -+80
ice condensing capacity	Kg/batch	≥100
condensr temp.(no loading )	℃	≤-75
cooling method	-	water cooling
defrosting	-	soaking
final vacuum (no loading )	Pa	≤5
installation rate	KW	23.5
cooling water	m3/h	10
external dimension (LWH)	mm	400015002500
total weight	KG	3500

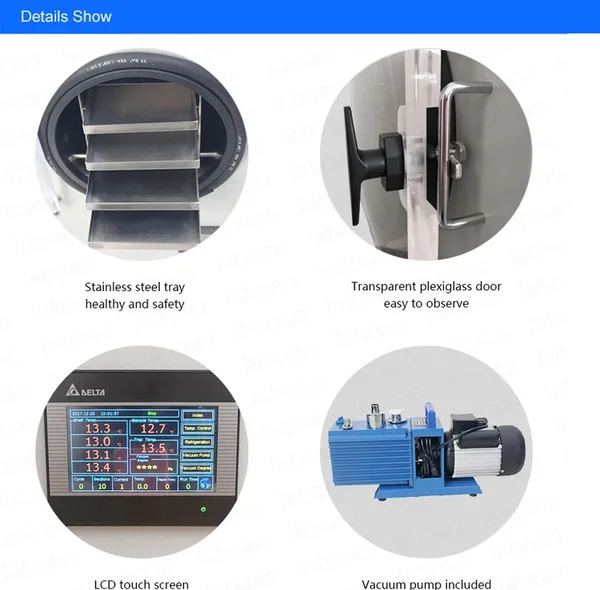

Feature of Freeze Dry Machine

1. Shelf freeze dryer ,silicon oil as medium to heat conductor,temperature uniform.

2. Square tray is not easily deformed, easy to operate, easy to clean;

3. Can be configured inflation valve, disposable dry inert gas;

4. With vacuum seal; the LCD: disply shelf temperature and cold trap curve.

5. SJIA PLC controller special designed for freeze dryer, 20 programs, each program can be divided into 40 sections of programmin

6. Freeze dryer program parameters can be modified during operation,and record the final drying curves;

7. USB on line function, export curve data to U disk (Optional)

8. Computer remote on line function (Optional)

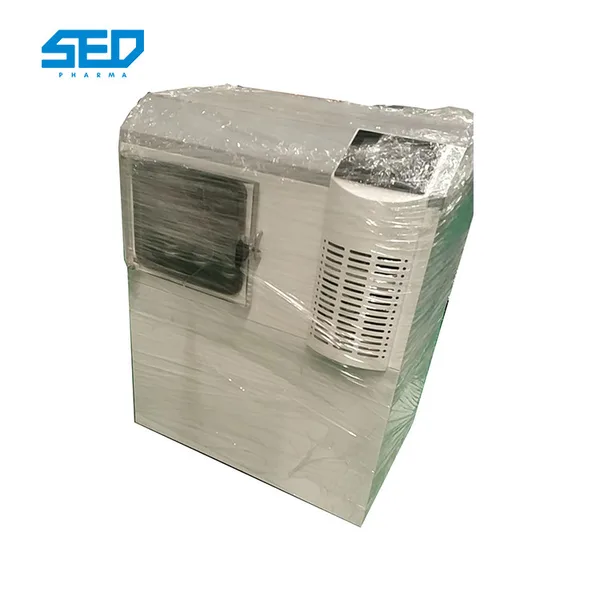

Show of Freeze Dry Machine
SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG product detail
