Freeze Dry Machine

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply

Name: SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply
Brand: SED Pharma

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply Product introduction of Freeze Drying Machine Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials Main Features of Freeze Drying Machine 1 Screw compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain 2 Tempera

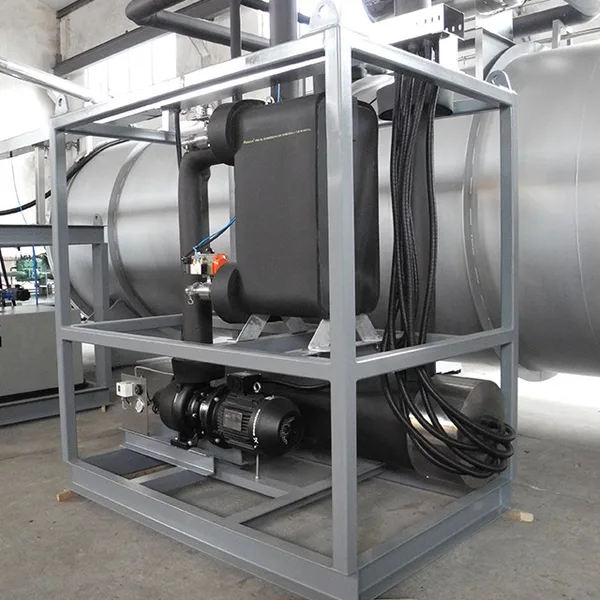

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply, view 1

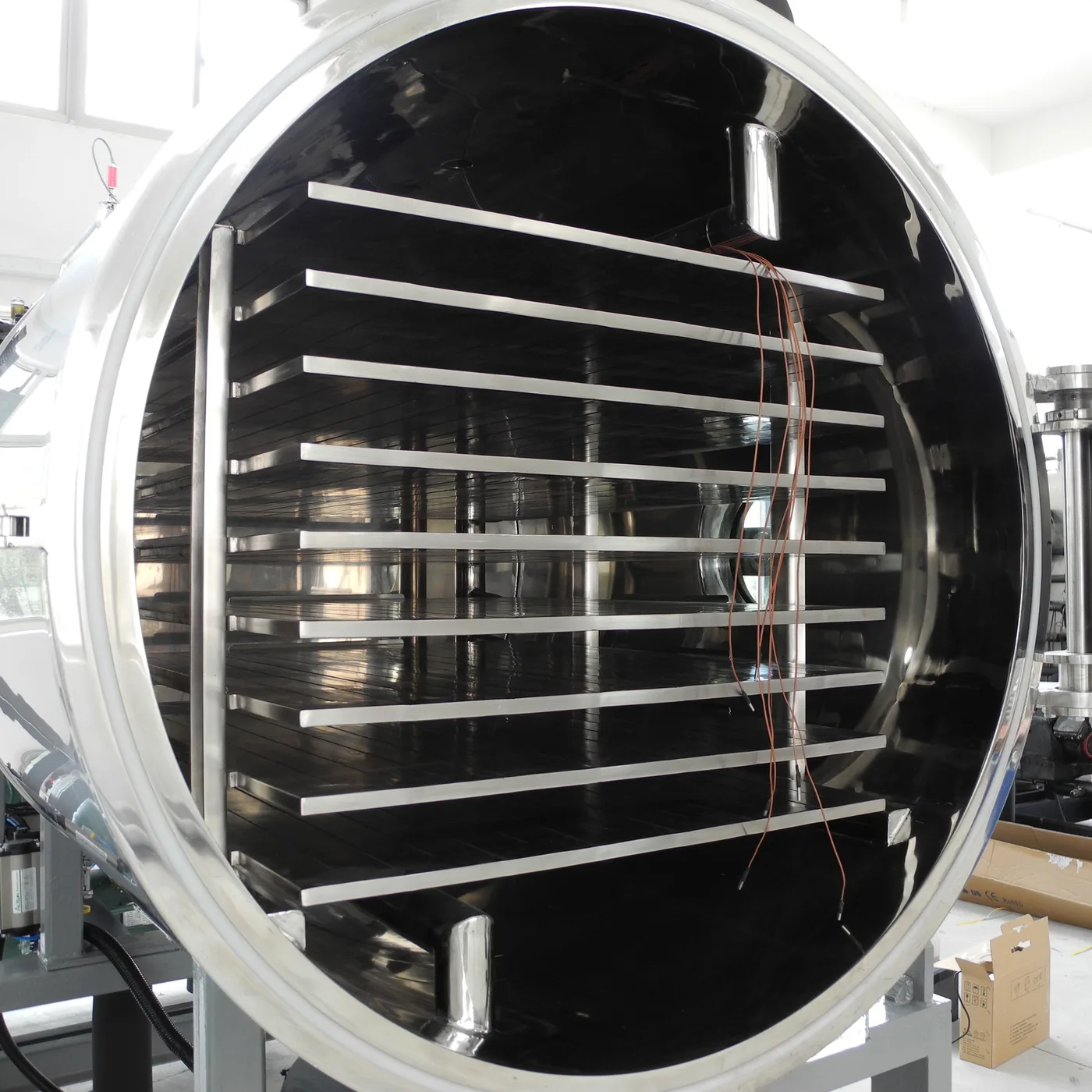

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply, view 2

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-3M

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	90-120 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	10 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply
Description: SED-20DG Vacuum Freeze Dryer
Vacuum function: 9.6kw
Power supply: 380V,50Hz,3 Phase,5Wire
Power consume: 30kw/100A
Cooling water qty: ≥30m3/h(T≤30℃,P=0.2-0.3Mpa)
Structure: Integral
Total weight: 9T(Approx.)
material: stainless steel
key word: Freeze Drying Machine

SED-3M 380V,50Hz,3 Phase,5Wire Low Temperature Horizontal Freeze Dried Food Equipment 3 Phase Power Supply

Product introduction of Freeze Drying Machine

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Main Features of Freeze Drying Machine

1 Screw compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain

2 Temperature and pressure of compressor has multiple protection features

3 Suction filter settings, prevent degeneration of stolen goods and acid materials into the compressor chamber , corrosion internal parts and refrigeration oil.

4 Exhaust temperature protection set to avoid oil degeneration in extreme conditions , to reduce the exhaust temperature by cooling motor

5 Compliance with the Montreal Convention, with environmentally friendly refrigerants;

Main Parameter of Freeze Drying Machine

Description	SED-20DG Vacuum Freeze Dryer
Vacuum function	9.6kw
Power supply	380V,50Hz,3Phase,5Wire
Power consume	30kw/100A
Cooling water qty	≥30m3/h(T≤30℃,P=0.2-0.3Mpa)
Structure	Integral
Total weight	9T(Approx.)
Weight	3000kg
