SED-3M 3 Square Meters Power 380V/50HZ/100A Big Box Type Vacuum Commercial Freeze Dryer Vegetables Fruits Machine

SED-3M 3 Square Meters Power 380V/50HZ/100A Big Box Type Vacuum Commercial Freeze Dryer Vegetables Fruits Machine



Product Overview of Freeze Dry Machine​

Laboratory freeze dryer is developed for biotech, pharmaceutical and other industry R&D. Drying capacity up to 12 Liters, more customized design according to user's requirement.



Product Parameters of Freeze Dry Machine

model	3 square meters
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm



Feature of Freeze Dry Machine​

1. Compact design, easily moving;

2. Simple operation, suitable for R&D purpose;

3. No need any utility apart from power;

4. Maintenance free;

5. Lower temperature with cascade refrigeration system;

6. Stoppring system available.

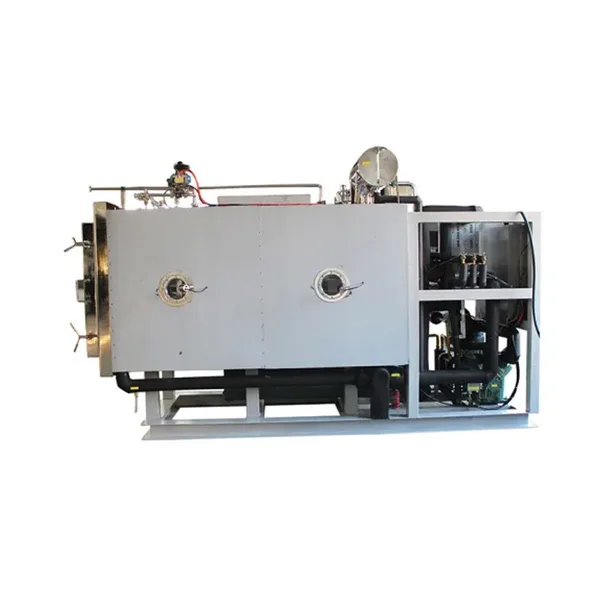

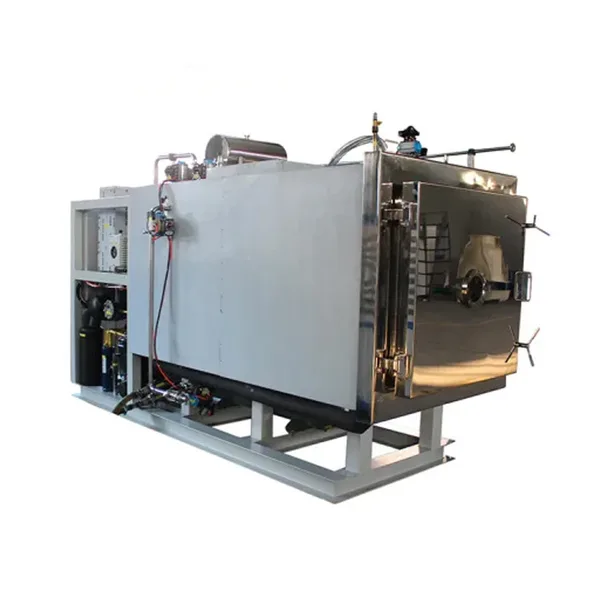

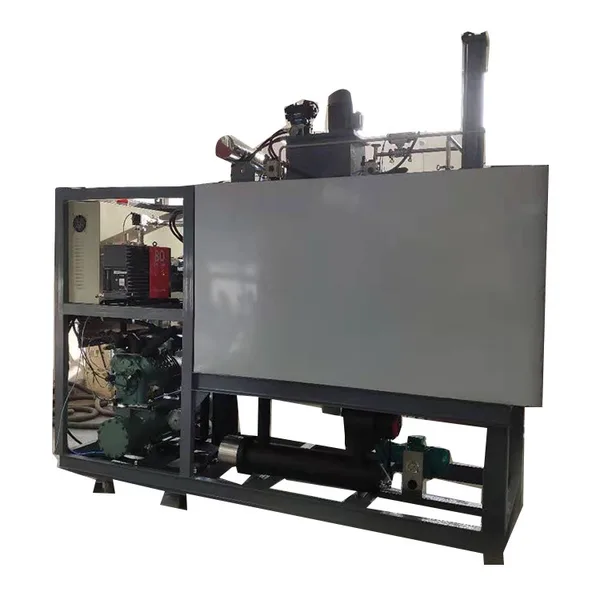

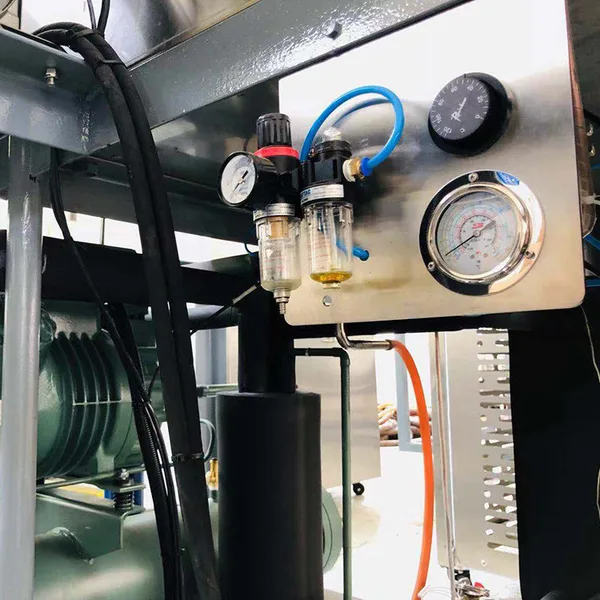

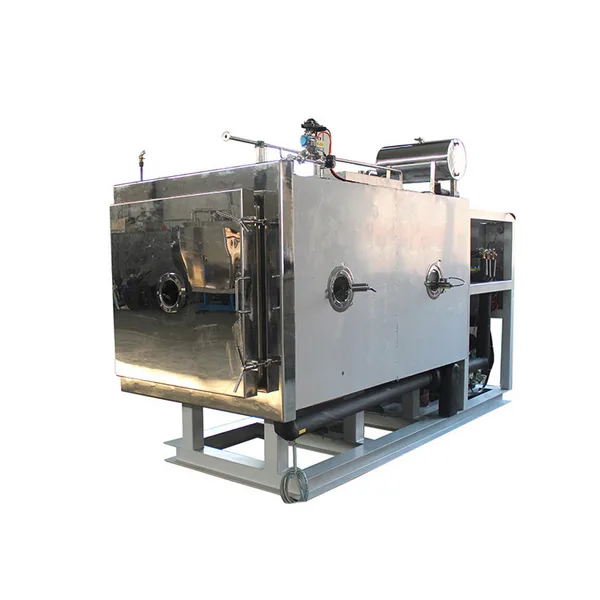

Show of Freeze Dry Machine

Application of Freeze Dry Machine

Suitable for heating, curing and drying of materials and products in pharmaceutical, chemical, food, light industry and other fields: raw materials, APIs, traditional Chinese medicines, powders, crude drugs, packaging bottles, pigments, dyes, dehydrated vegetables, food, plastic resins, components Parts, paint, wool, salt, catalyst, etc.
