SED -35R Vegetables Food Commercial Freeze Dry Machine Customizable Low Noise Power Install 80kw

SED -35R Vegetables Food Commercial Freeze Dry Machine Customizable Low Noise Power Install 80kw



Product Description of Freeze Dryer​



1. Meat: chicken,beef,soup,cheese,sausage


2. Fruit: Strawberry, Blackberry, apple,blueberry,pitaya,Zucchini,Durian,Lemon


3. Vegetable: Pea, green vegetable,corn,mushroom,sweat potato,onion,celery,Asparagus


4. Instant food: Coffee,milk,honey


5. Others.Flowers,ice cream



Product Parameters of Freeze Dryer​

No.	Type	Drying area(m2)	Working temperature of tray(℃)	Condensator's temperature(℃)	Water-catching weight	Power
1	ZG-10	0.5	-30~60	-50~-60	7	15
2	HTD-1	1	-30~60	-50~-60	12	18
3	HTD-2	2	-30~60	-50~-60	25	22
4	HTD-3	3	-30~60	-50~-60	40	25
5	HTD-5	5	-30~60	-50~-60	60	28
6	HTD-10	10	-30~60	-50~-60	120	40
7	HTD-15	15	-35~60	-50~-60	200	50
8	HTD-20	20	-35~60	-50~-60	250	60
9	HTD-25	25	-35~60	-50~-60	300	70
10	HTD-30	30	-35~60	-50~-60	350	90
11	HTD-35	35	-35~60	-50~-60	400	110
12	HTD-40	40	-35~60	-50~-60	550	130
13	HTD-50	50	-35~60	-50~-60	700	150
14	HTD-100	100	-35~60	-50~-60	2200	235
15	HTD-200	200	-35~60	-50~-60	3000	385



main Feature of Freeze Dryer



· Economical design, high efficiency on energy consumption.



· Differnt heat source, steam and electrical.



· Modular design, a combination of fast installation, equipment production cycle is short.



· Drying cabin, hot plates, water and gas trap water chamber volume, highly integrated, ingenious structure, take up less space, taking the load is small, more economical and practical.



· Continuous automatic vacuum de-icing system, so that the ice condenser coil is only 2-3 mm, small temperature loss, refrigeration energy arrived; while simplifying the production process, saving time melting ice.



· heating systems in real time precise temperature control to ensure product consistency and ideal batch of product quality.



· Energy efficient, water-capture capability constant unit tray area, large freeze drying capacity;



· vacuum extraction can reach within 12 minutes of vacuum process requirements, and maintain pumping. capacity pump units combine more energy efficient and economical.



· PLC automatic control system to ensure that all systems lyophilized in the best working condition.



· Machine simple operation, easy maintenance, stable performance, reliable.

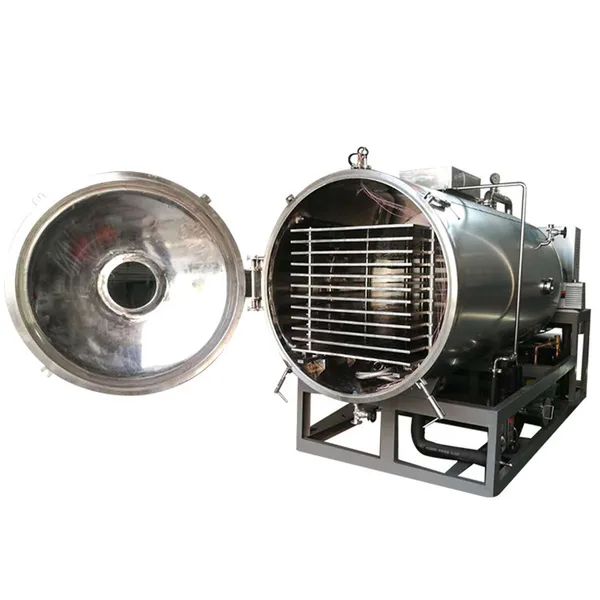

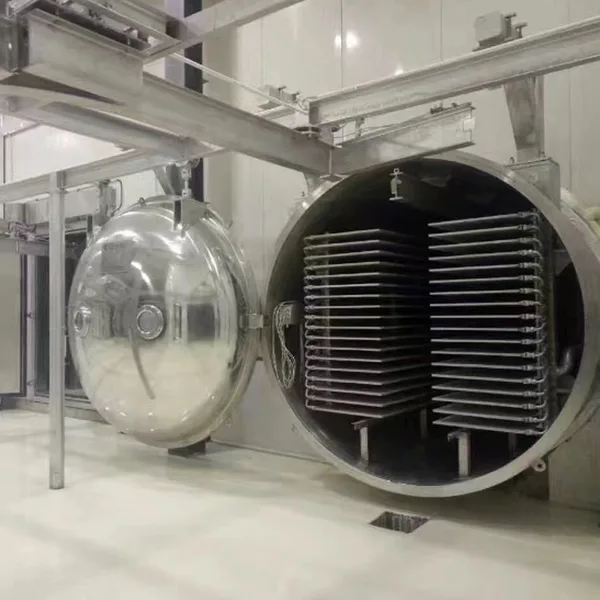

Show of Freeze Dryer​



Application of Freeze Dryer
