SED-35R Lab Fruits And Vegetables Mini Freeze Dry Machine High Working Efficiency Ice Capacity 450kg



SED-35R Lab Fruits And Vegetables Mini Freeze Dry Machine High Working Efficiency Ice Capacity 450kg



Product Overview of Freeze Dry Machine​

The vacuum freeze drying machine is an advanced method for the material for the material de-watering. ATLAS technology from THE DENMARK.



It has been very famous for its good results and special capturing water alternatively(as above photo on the left ). It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition.



Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.


Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little.



When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered again, because of its large contacting area and it can be stored for a long period in a sealed vessel.



Product Parameters of Freeze Dry Machine

Items	SED-120R	SED-60R	SED-35R
Shelf area	117.8sq.m	58.9sq.m	34.9sq.m
Ice capacity	1500kgs	750kgs	450kg
Shelf size	630*5850mm	630*2950mm	630*2700mm
Shelves	17+1	17+1	11+1
Material tray size	610*710mm	610*710mm	610*650mm
Material trays	272pcs	136pcs	88pcs
Shelf space	90mm	90mm	90mm
Shelf temp.	RT to +120C	RT to +120C	RT to+120C
Ice condenser temp.	-45C	-45C	-45C
Power install	235kw	105kw	80kw
Drying House	11000*3100*4000mm	6900*3100*4000mm	6000*2700*3500mm



Feature of Freeze Dry Machine​

Our GZS Vacuum Freeze Dryer Designed and manufactured based on GMP requirement, ATLAS technology&structure, adopts a solid construction with a small occupied area and convenient installation and transportation.
Its operation can be controlled by hand, automatic program or computer. It will be more reliable if being equipped with the unit.

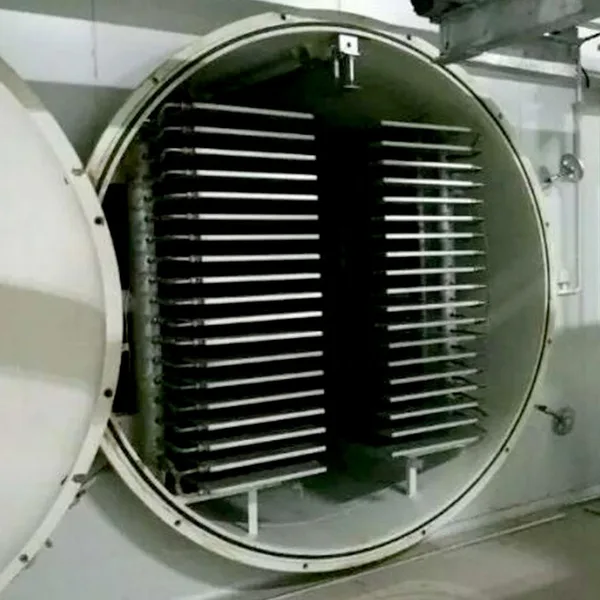

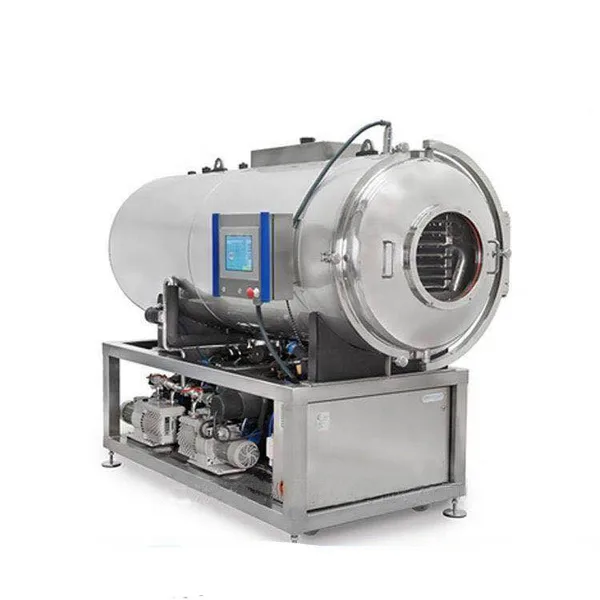

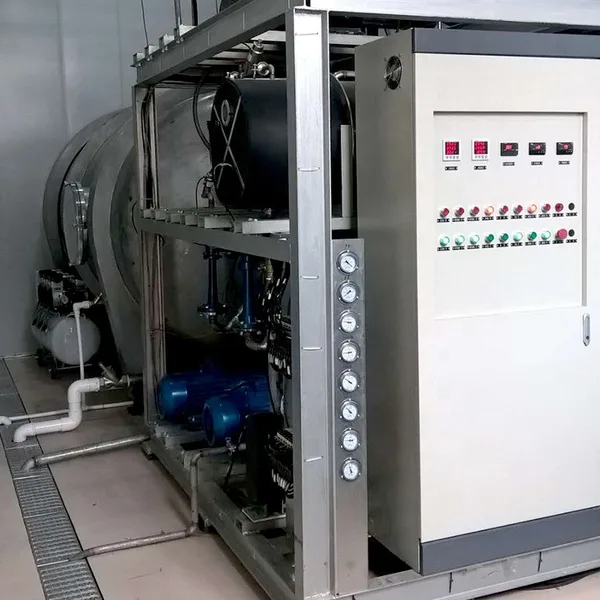

Show of Freeze Dry Machine​

Application of Freeze Dry Machine



Suitable for heating, curing and drying of materials and products in pharmaceutical, chemical, food, light industry and other fields: raw materials, APIs, traditional Chinese medicines, powders, crude drugs, packaging bottles, pigments, dyes, dehydrated vegetables, food, plastic resins, components Parts, paint, wool, salt, catalyst, etc.
